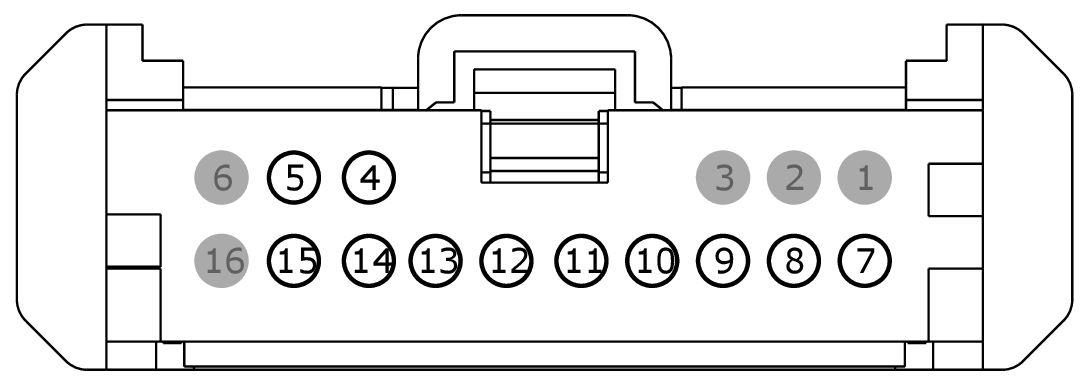

Connector End View C218B - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218B	CLOCKSPRING	BK	PIA	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RRH02 (GN-WH)	*	CTRL MOD. - SWITCH HORN	N/A
5	CRH02 (BU-WH)	*	CTRL MOD. - STEERING WHEEL # HORN	N/A
6	*	*	Not Used	N/A
7	LX103 (WH-VT)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
8	LX104 (YE-GN)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
9	RX101 (BU-BN)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
10	LX105 (BN-YE)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
11	LX103 (WH-VT)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
12	LX104 (YE-GN)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
13	RX102 (GN-BN)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)	N/A
14	LX105 (BN-YE)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
15	VLN04 (VT-GY)	*	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
16	*	*	Not Used	N/A
