Instrument Cluster - 8-Inch Display
NOTE:

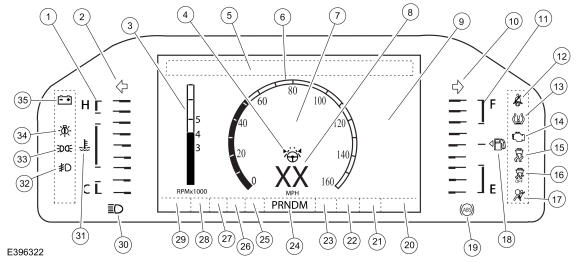

The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Engine temperature gauge |
| 2 | LH turn indicator |
| 3 | Virtual tachometer (shown) Virtual power gauge (HEV) |
| 4 | Rotating Reconfigurable Telltales (RTTs) Cruise control/adaptive cruise control Lane keeping system Lane centering aid |
| 5 | Compass or far navigation Rotating Reconfigurable Telltales (RTTs) BLIS off Brake Door ajar Electric park brake Engine oil pressure Engineering Test (ET) mode Forward collision warning Hill start assist Hood ajar Liftgate ajar Low windshield washer fluid Powertrain malfunction (wrench) Ready (HEV) |
| 6 | Virtual speedometer |
| 7 | Main message center display area |
| 8 | Digital speedometer display |
| 9 | Information-on-demand display area |
| 10 | RH turn indicator |
| 11 | Fuel gauge |
| 12 | Seatbelt warning indicator |
| 13 | TPMS indicator |
| 14 | MIL (check engine) |
| 15 | Stability-traction control indicator (sliding car icon) |
| 16 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 17 | Airbag warning indicator |
| 18 | Low fuel warning indicator |
| 19 | ABS indicator |
| 20 | DTE display (gas) Battery charge display (HEV) |
| 21 | Auto hold RTT indicator |
| 22 | Auto stop/start RTT indicator |
| 23 | SelectShift® RTT indicator |
| 24 | PRNDM display |
| 25 | Selectable drive mode RTT indicator (Normal, Eco, Sport, Slippery, Sand, Mud/Ruts, Tow Haul) |
| 26 | Frost warning RTT indicator |
| 27 | Outside air temperature display |
| 28 | Auto high beam RTT indicator |
| 29 | Odometer display area |
| 30 | High beam indicator |
| 31 | Engine over-temperature warning indicator |
| 32 | Front fog lamp indicator |
| 33 | Lights on indicator |
| 34 | LED low beam malfunction indicator |
| 35 | Charging system warning indicator (12-volt) |
