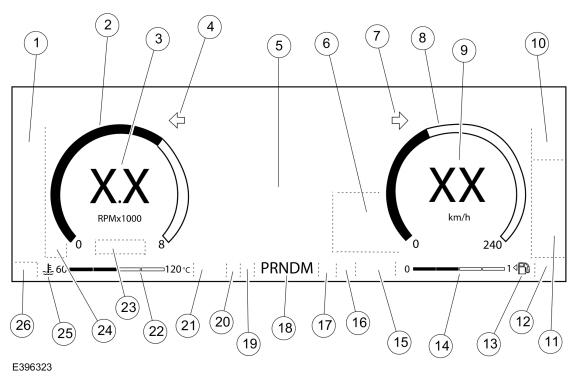

IPC - 12-Inch Display
| Item | Description |
|---|---|
| 1 | Fixed Reconfigurable Telltales (RTTs) Airbag warning LED low beam malfunction TPMS Stability-traction control (sliding car icon) Stability-traction control OFF (sliding car OFF icon) Forward collision warning (pre-collision assist) MIL (check engine) Auto high beam High beam |
| 2 | Virtual tachometer (gas) Virtual power gauge (HEV) |
| 3 | Digital tachometer display |
| 4 | LH turn RTT indicator |
| 5 | Main nessage center display area |
| 6 | Adaptive cruise control/cruise control RTT indicator Overspeed warning (Gulf Cooperative Countries [GCC]) Speed limit sign RTT indicator |
| 7 | RH turn RTT indicator |
| 8 | Virtual speedometer |
| 9 | Digital speedometer display |
| 10 | Rotating RTT indicators: BLIS off Charging system (12-volt battery) Door, hood, liftgate ajar Engineering Test (ET) mode Low engine oil pressure Low fuel warning (when calm screen is selected) Low washer fluid Powertrain malfunction (wrench) Pre-collision assist off HEV system fault (HEV) Vehicle plugged in (PHEV) |
| 11 | Fixed RTT indicators Electric park brake Auto hold Brake warning ABS warning Seatbelt warning Frost warning |
| 12 | Outside air temperature display |
| 13 | Low fuel warning |
| 14 | Virtual fuel gauge |
| 15 | DTE display (gas, shown) |
| 16 | Battery range display |
| 17 | SelectShift gear indication |
| 18 | PRNDM display |
| 19 | Lane keeping system RTT indicator Lane centering aid RTT indicator |
| 20 | Auto stop-start RTT indicator Electric Vehicle (EV) now RTT indicator (PHEV) Electric Vehicle (EV) later RTT indicator (PHEV) Electric Vehicle (EV) charge RTT indicator |
| 21 | Odometer display |
| 22 | Virtual engine temperature gauge |
| 23 | Ready (HEV) Drive modes (Normal, Eco, Sport, Slippery, Sand, Mud/Ruts, Town Haul) |
| 24 | Front fog lamps RTT indicator Lights on |
| 25 | Engine over-temperature RTT indicator |
| 26 | Compass display |
