Cooling Fan Motor and Shroud: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the retainers, release the tabs and remove the air cleaner intake duct pipe.

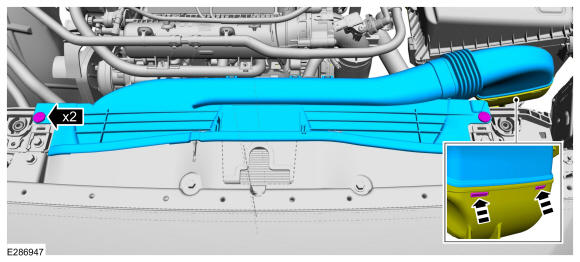

    GFD750656Courtesy of FORD MOTOR COMPANY
  3. Disconnect the cooling fan electrical connector.

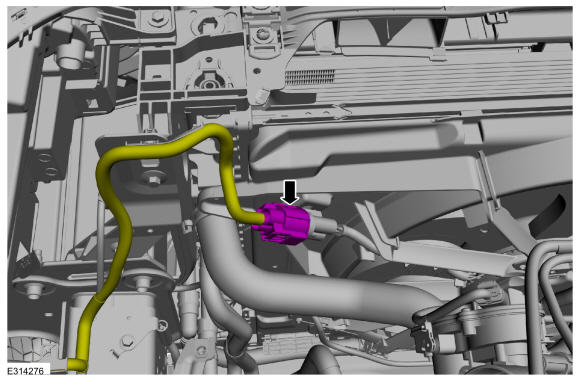

    GFD750657Courtesy of FORD MOTOR COMPANY
  4. Detach the transmission oil cooler hoses retainer.
    GFD750658Courtesy of FORD MOTOR COMPANY
  5. Detach the wiring harness retainers.
    GFD750659Courtesy of FORD MOTOR COMPANY
  6. NOTE: All components are not shown for clarity.

    Detach the wiring harness retainers.

    GFD750660Courtesy of FORD MOTOR COMPANY
  7. Remove the retainers and detach the auxiliary radiator coolant hose.

    Torque

    : 36 lb.in (4.1 Nm)

    GFD750661Courtesy of FORD MOTOR COMPANY
  8. Remove the bolts, release the tabs and remove the cooling fan motor and shroud.

    Torque

    : 71 lb.in (8 Nm)

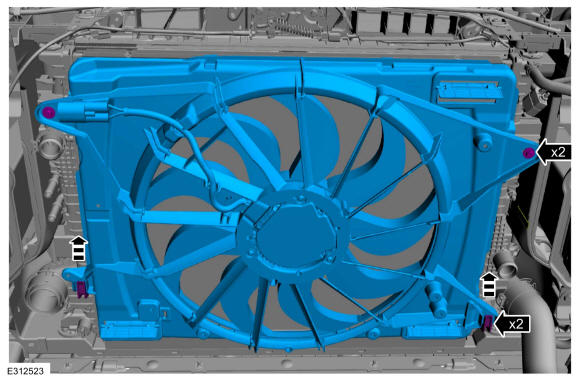

GFD750554Courtesy of FORD MOTOR COMPANY
