Coolant Pump: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

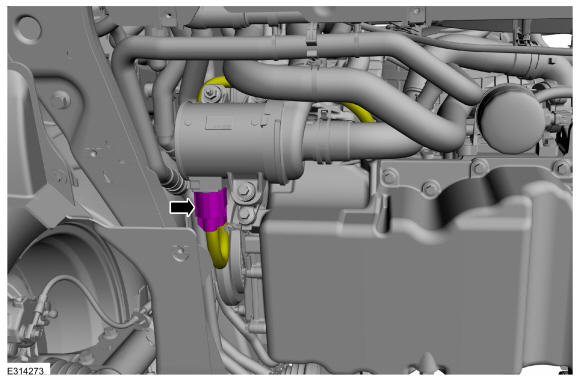

  2. Disconnect the electrical connector.
    GFD750653Courtesy of FORD MOTOR COMPANY

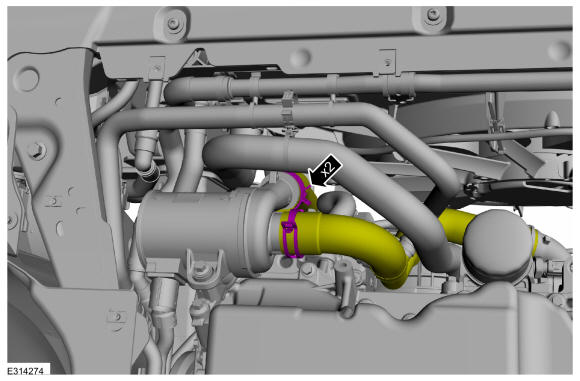

  3. Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD750654Courtesy of FORD MOTOR COMPANY

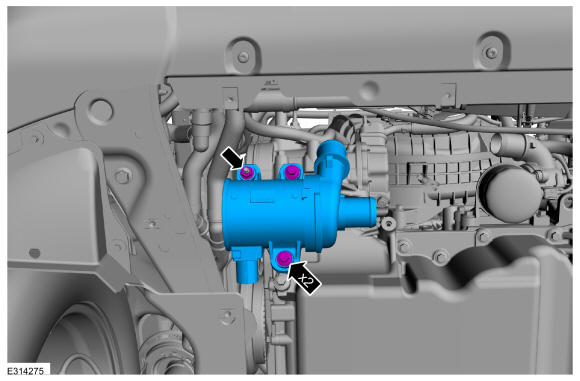

  4. Remove the bolts, nut and the coolant pump.

    Torque

    : 18 lb.ft (25 Nm)

GFD750655Courtesy of FORD MOTOR COMPANY
