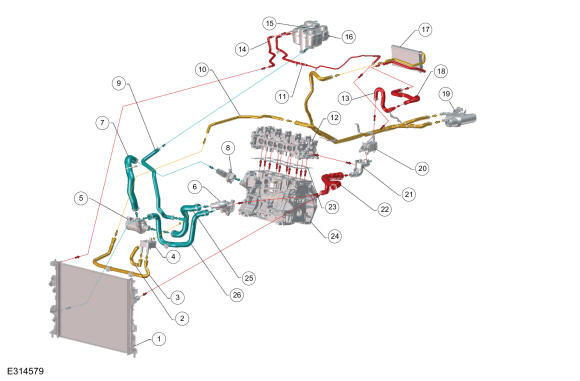

| 1 |
Radiator |
| 2 |
Engine oil cooler outlet hose |
| 3 |
Engine oil cooler inlet hose |
| 4 |
Engine oil cooler (If equipped) |
| 5 |
Coolant pump |
| 6 |
Thermostat housing |
| 7 |
Coolant outlet hose |
| 8 |
Coolant outlet assembly |
| 9 |
Degas bottle-to-engine hose |
| 10 |
High voltage battery cooler upper hose |
| 11 |
Degas bottle hose connector |
| 12 |
Cylinder head |
| 13 |
EGR cooler outlet hose |
| 14 |
Radiator overflow hose |
| 15 |
Pressure relief cap |
| 16 |
Degas bottle |
| 17 |
Heater core |
| 18 |
Heater core inlet hose |
| 19 |
Exhaust heat exchanger |
| 20 |
EGR cooler |
| 21 |
Coolant outlet adapter |
| 22 |
Upper radiator hose |
| 23 |
Cylinder head gasket |
| 24 |
Cylinder block |
| 25 |
Coolant inlet hose |
| 26 |
Lower radiator hose |
