Cooling Fan

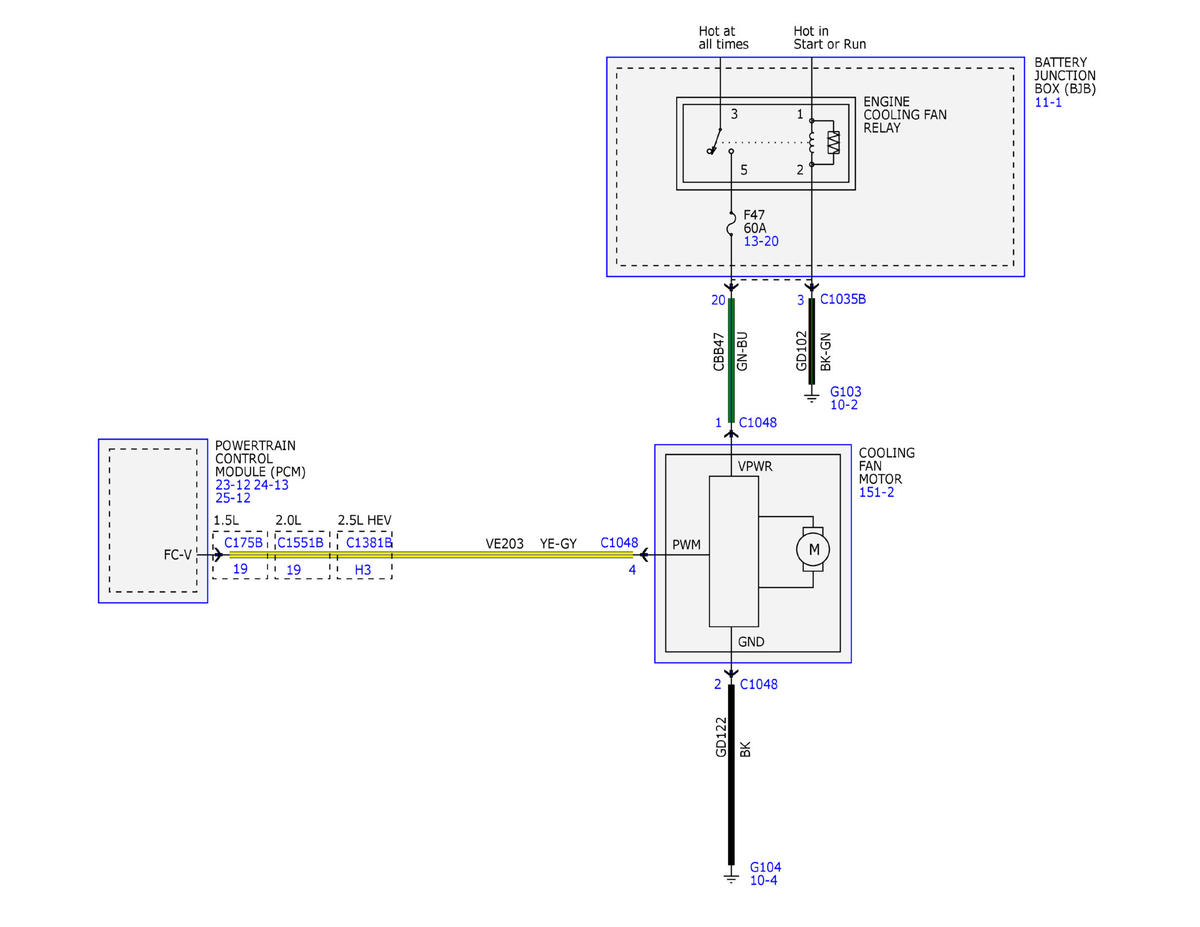

Fig 1: Cooling Fan Wiring Diagram (1 Of 3)
GFDWR198155Courtesy of FORD MOTOR COMPANY
Fig 2: Cooling Fan Wiring Diagram (2 Of 3)
GFDWR198156Courtesy of FORD MOTOR COMPANY
Fig 3: Cooling Fan Wiring Diagram (3 Of 3)
GFDWR198157Courtesy of FORD MOTOR COMPANY
