Connector End View C126 - INLINE

Inline: Description Color Harness Base Part # Service Pigtail
C126 INLINE BK 1430014300 Not Available

MALE

Harness

14300

MALE

Harness

14300

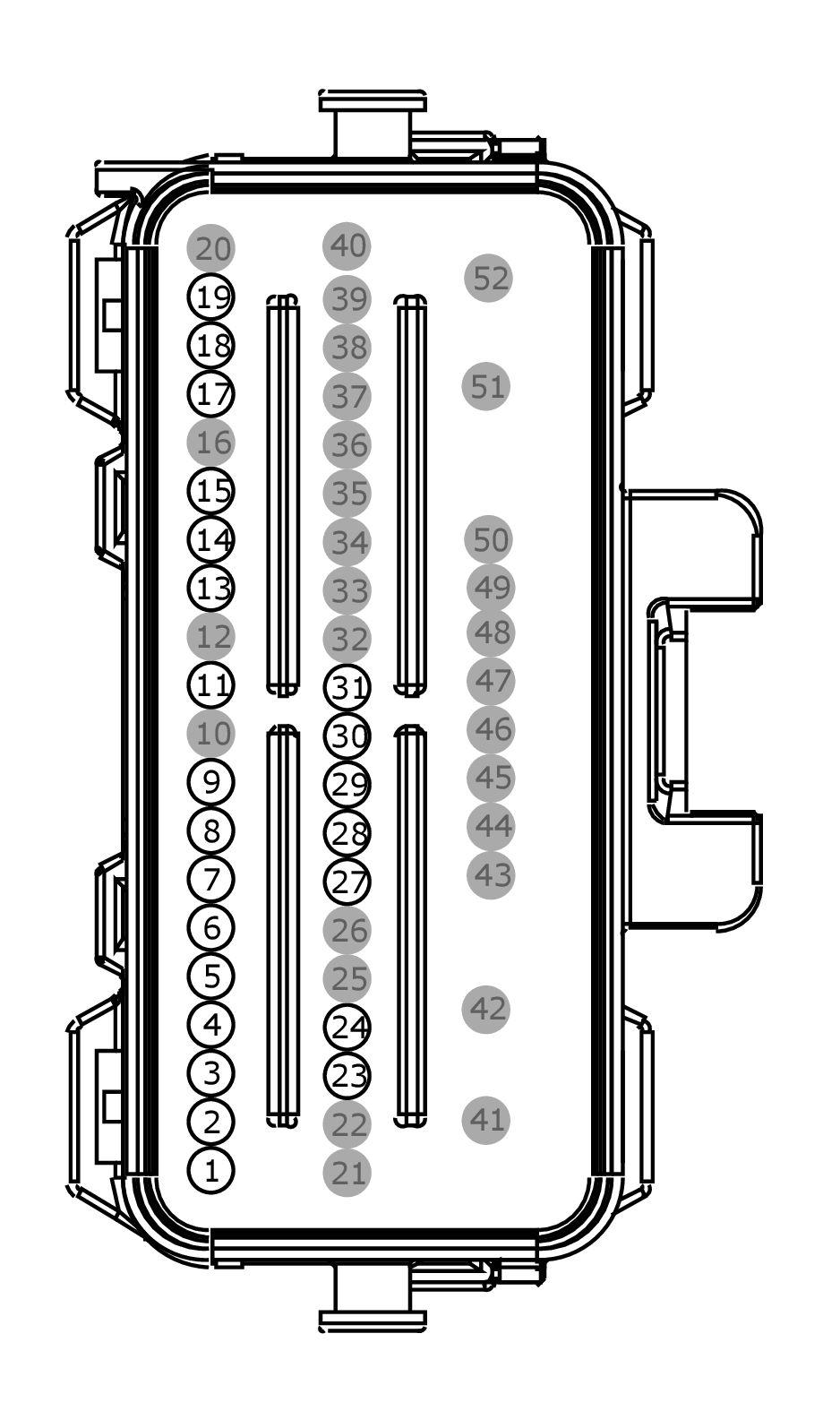

GFDWR197164Courtesy of FORD MOTOR COMPANY
GFDWR197165Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14421-CA EU2Z-14421-BA 0.64
9U5T-14421-BA EU2Z-14421-BA 0.64
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 * * N/A
2 * * N/A
3 * * N/A
4 CR167 (YE-VT) 18 9U5T-14421-CA
5 CYD14 (GN-BN) 20 9U5T-14421-BA
6 SBBE6 (YE-RD) 20 9U5T-14421-BA
7 * * N/A
8 * * N/A
9 * * N/A
10 * * N/A
11 CBBG9 (VT-GY) 18 9U5T-14421-CA
12 * * N/A
13 VYB30 (YE-GN) 18 9U5T-14421-CA
14 CYT14 (VT-OG) 18 9U5T-14421-CA
15 VDN04 (VT-WH) 18 9U5T-14421-CA
16 * * N/A
17 SBB46 (BN-RD) 20 9U5T-14421-BA
18 CYC03 (BN-GN) 20 9U5T-14421-BA
19 VYC11 (BU-WH) 20 9U5T-14421-BA
20 * * N/A
21 * * N/A
22 * * N/A
23 VYB61 (BU-OG) 20 9U5T-14421-BA
24 VYB62 (GY-BU) 20 9U5T-14421-BA
25 * * N/A
26 * * N/A
27 BDB66 (GY-OG) 22 9U5T-14421-BA
28 BDB65 (GN-WH) 22 9U5T-14421-BA
29 BDB66 (GY-OG) 22 9U5T-14421-BA
30 BDB65 (GN-WH) 22 9U5T-14421-BA
31 * * N/A
32 * * N/A
33 * * N/A
34 * * N/A
35 * * N/A
36 * * N/A
37 * * N/A
38 * * N/A
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 * * N/A
46 * * N/A
47 * * N/A
48 * * N/A
49 * * N/A
50 * * N/A
51 * * N/A
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 CBB07 (GN-BU) 18 9U5T-14421-CA
2 VE940 (GN-BU) 20 9U5T-14421-BA
3 VE941 (BN) 20 9U5T-14421-BA
4 CR167 (YE-VT) 18 PHEV 9U5T-14421-CA
4 CR167 (YE-VT) 20 FHEV 9U5T-14421-BA
5 CYD14 (GN-BN) 20 FHEV 9U5T-14421-BA
5 CYD14 (GN-BN) 22 PHEV 9U5T-14421-BA
6 SBBE6 (YE-RD) 20 9U5T-14421-BA
7 VE793 (GN) 20 9U5T-14421-BA
8 RE793 (VT-GY) 20 9U5T-14421-BA
9 VE794 (YE) 20 9U5T-14421-BA
10 * * N/A
11 CBBG9 (VT-GY) 18 PHEV 9U5T-14421-CA
11 CBBG9 (VT-GY) 20 FHEV 9U5T-14421-BA
12 * * N/A
13 VYB30 (YE-GN) 18 PHEV 9U5T-14421-CA
13 VYB30 (YE-GN) 20 FHEV 9U5T-14421-BA
14 CYT14 (VT-OG) 18 PHEV 9U5T-14421-CA
14 CYT14 (VT-OG) 20 FHEV 9U5T-14421-BA
15 VDN04 (VT-WH) 18 9U5T-14421-CA
16 * * N/A
17 SBB46 (BN-RD) 20 9U5T-14421-BA
18 CYC03 (BN-GN) 20 9U5T-14421-BA
19 VYC11 (BU-WH) 22 9U5T-14421-BA
20 * * N/A
21 * * N/A
22 * * N/A
23 VYB61 (BU-OG) 22 9U5T-14421-BA
24 VYB62 (GY-BU) 22 9U5T-14421-BA
25 * * N/A
26 * * N/A
27 VDB04 (BU) 22 9U5T-14421-BA
28 VDB05 (WH) 22 9U5T-14421-BA
29 VDB04 (BU) 22 9U5T-14421-BA
30 VDB05 (WH) 22 9U5T-14421-BA
31 RE794 (BU) 20 9U5T-14421-BA
32 * * N/A
33 * * N/A
34 * * N/A
35 * * N/A
36 * * N/A
37 * * N/A
38 * * N/A
39 * * N/A
40 * * N/A
41 * * N/A
42 * * N/A
43 * * N/A
44 * * N/A
45 * * N/A
46 * * N/A
47 * * N/A
48 * * N/A
49 * * N/A
50 * * N/A
51 * * N/A
