Connector End View C1663 - FRONT PARKING AID CAMERA

Connector: Description Color Harness Base Part # Service Pigtail
C1663 FRONT PARKING AID CAMERA BK 15K867 part# N/A Not Available

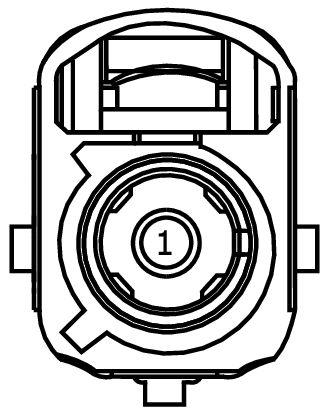

GFDWR197558Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 VMP52 (*) 0.5 FRONT PARKING AID CAMERA N/A
