Side Parking Aid Camera - Vehicles With: 360 Degree Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Left hand mirror is shown, right hand mirror is similar.

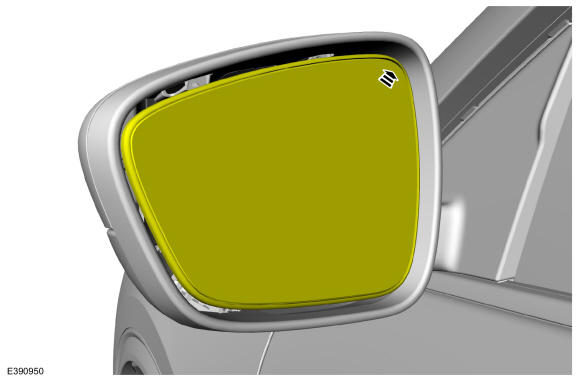

1. Position the exterior mirror glass up and in.

   Courtesy of FORD MOTOR COMPANY

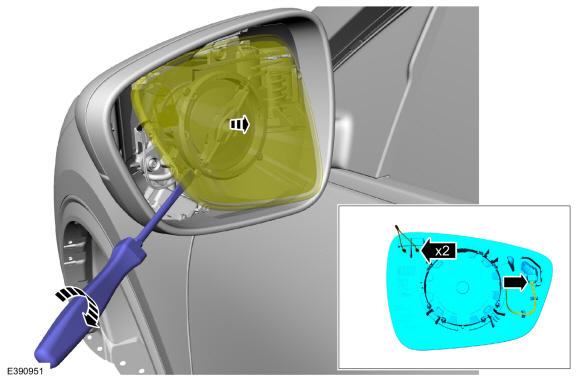

2. Release the tabs, position the mirror glass, disconnect the connectors and remove the exterior mirror glass.Use the General Equipment: Flat Headed Screw Driver

   Courtesy of FORD MOTOR COMPANY

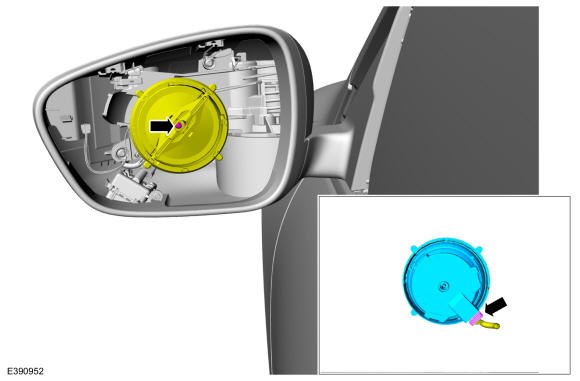

3. Remove the screw, disconnect the electrical connector and remove the exterior mirror motor.

   Courtesy of FORD MOTOR COMPANY

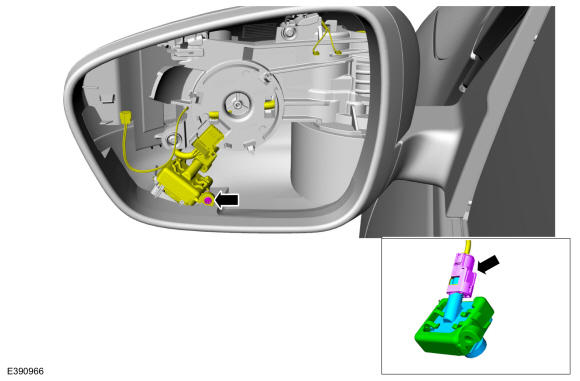

4. Remove the screw, disconnect the electrical connector and remove the side parking aid camera from the retaining bracket.

Courtesy of FORD MOTOR COMPANY
