Rear Parking Aid Camera - Vehicles With: 360 Degree Camera Parking Aid Camera: Removal
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Remove the liftgate trim panel. Refer to: Liftgate Trim Panel
.
Vehicles equipped with analog cameras

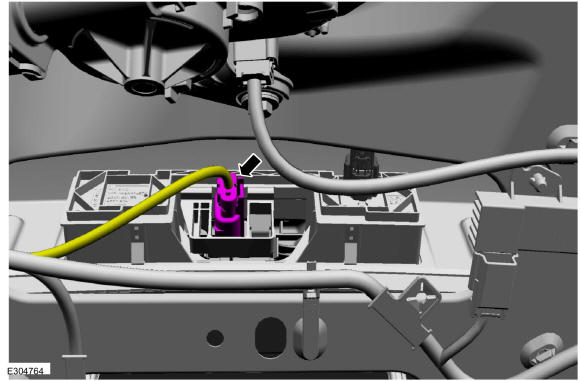

- Disconnect the electrical connector.

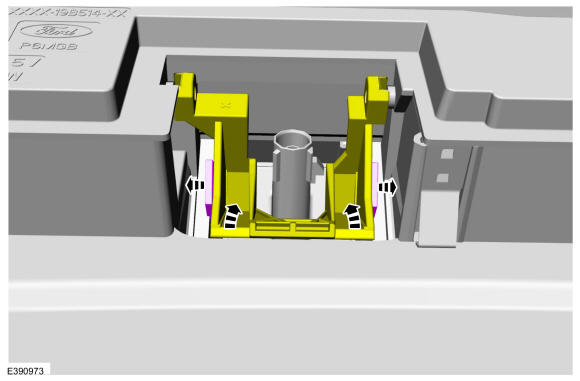

- Release the tabs, position the retaining plate and remove the rear view camera.
Vehicles equipped with digital cameras

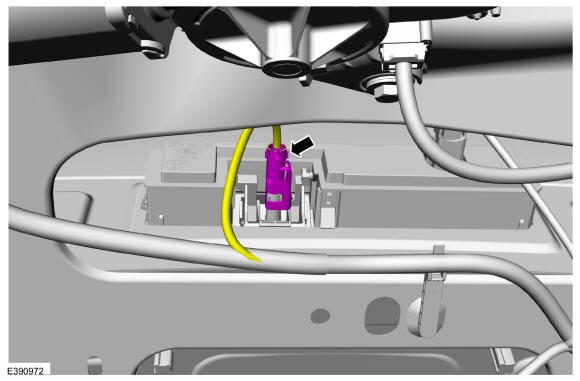

- Disconnect the electrical connector.

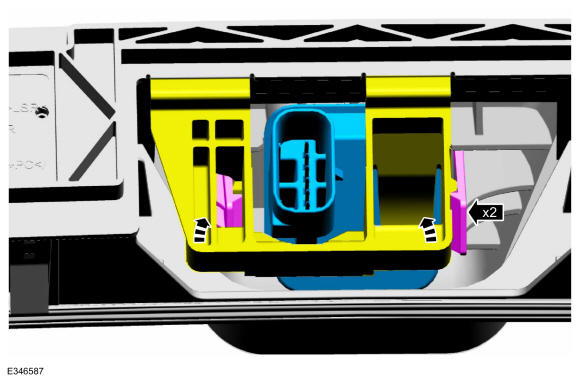

- Release the tabs, position the retaining plate and remove the rear view camera.
- Remove the rear view camera.
