Parking Assist Control Module (PAM): Removal
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If installing a new PAM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new PAM after installation.
Using a diagnostic scan tool, begin the PMI process for the PAM following the onscreen instructions.
- Remove the floor console. Refer to: Floor Console
- Disconnect the electrical connectors.

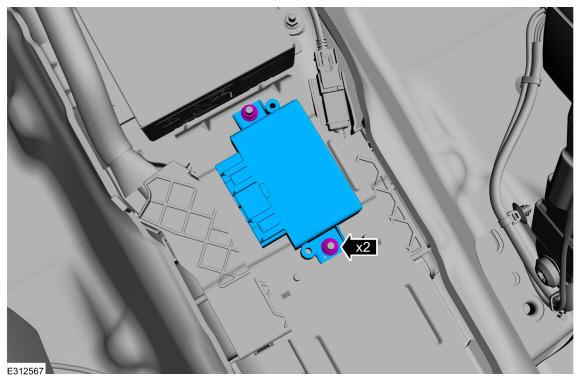

- Remove the fasteners and the PAM.
