Front Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover

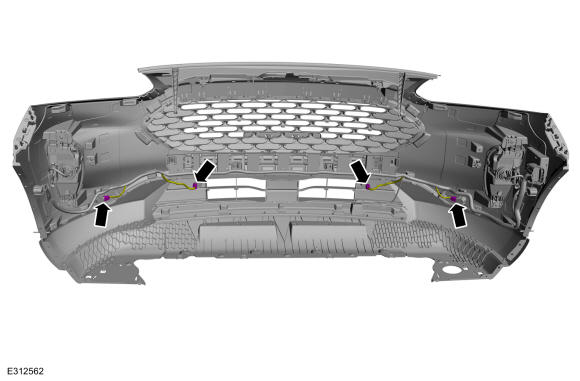

  2. Disconnect the electrical connectors.
    GFD652751Courtesy of FORD MOTOR COMPANY

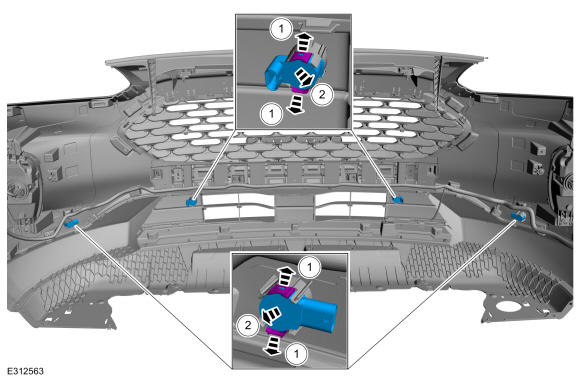

  3. Remove the front parking aid sensor.

    1. Release the tabs.
    2. Remove the sensor.

GFD652752Courtesy of FORD MOTOR COMPANY
