Front Parking Aid Camera: Removal
WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the radiator grille. Refer to: Radiator Grille .

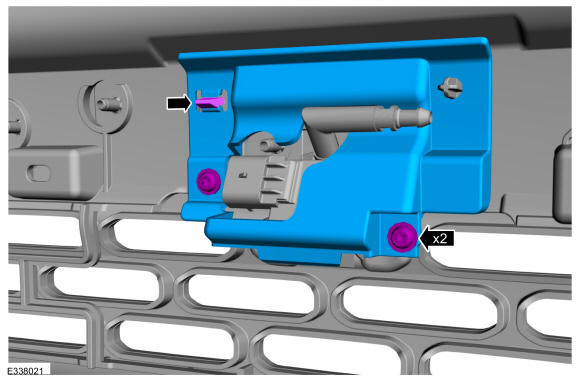

- Remove the screws, release the tab and remove the camera bracket.

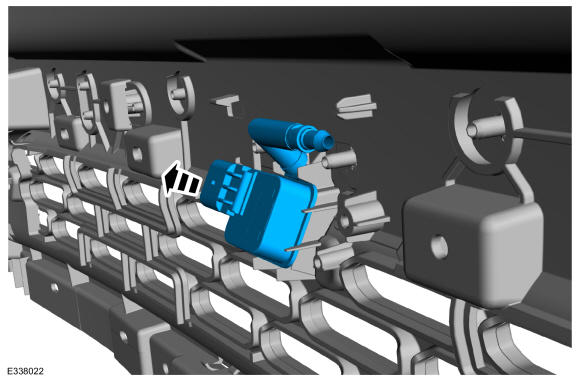

- Remove the front parking aid camera and washer as an assembly.

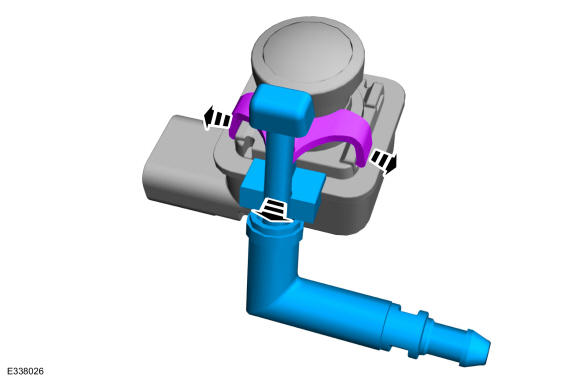

- Release the tabs and remove the washer nozzle.
