Fuel Tank Isolation Valve - Plug-In Hybrid Electric Vehicle (PHEV): Removal
WARNING:
Before beginning any service procedure, refer to health and safety warnings in General Information. Failure to follow this instruction may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Remove the fuel vapor vent valve. Refer to: Fuel Vapor Vent Valve - Plug-In Hybrid Electric Vehicle (PHEV) .
-

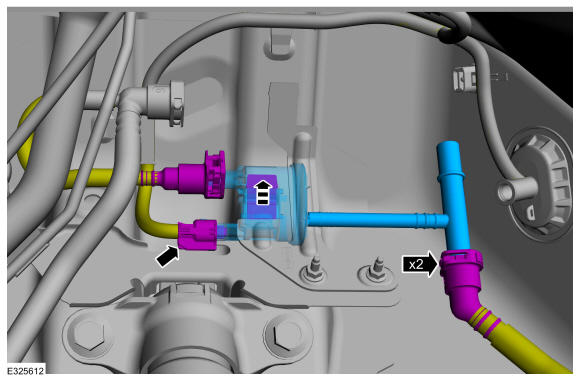

- Disconnect the electrical connector.
- Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Remove the isolation valve.
