Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reconnect the electrical connector and quick connector. Refer to: QUICK RELEASE COUPLING .
    GFD652512Courtesy of FORD MOTOR COMPANY

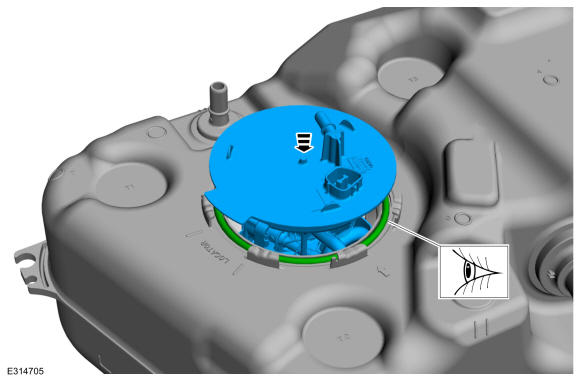

  2. NOTE: Use a new seal.
    NOTE: Make sure that the seal is correctly located.
    GFD652517Courtesy of FORD MOTOR COMPANY

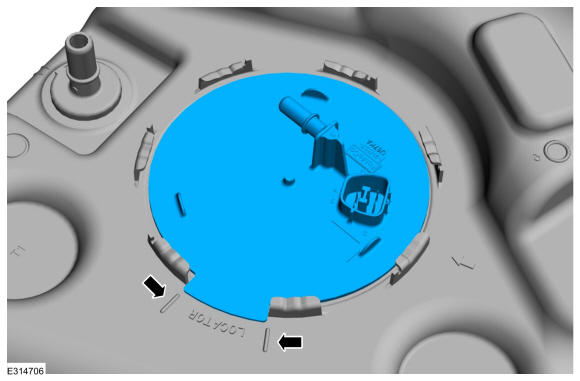

  3. NOTE: Make sure that the installation marks are aligned.
    GFD652518Courtesy of FORD MOTOR COMPANY
  4. To install, reverse the removal procedure.
