Inverter System Controller [SOBDMC]: Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the inverter system controller [SOBDMC] information to the diagnostic tool using the Programmable Modules Installation routine. Refer to Module Programming . Use the General Equipment: Ford Diagnostic Equipment
Remove the DCDC. Refer to Direct Current/Direct Current (DC/DC) Converter Control Module .

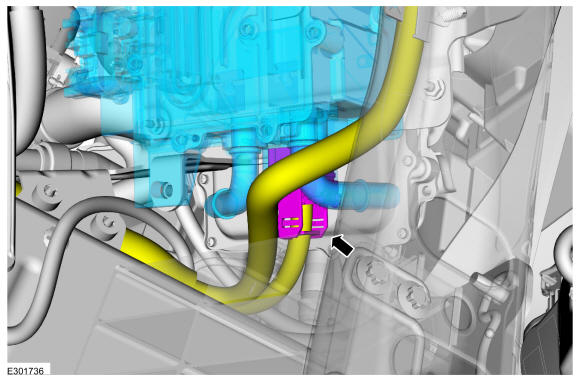

Remove the retainers and disconnect the high voltage cables. Disconnect the coolant hose from the inverter system controller.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the RH fender splash shield. Refer to Fender Splash Shield .
NOTE: Do not allow the inverter system controller to hang from the low voltage harness.

NOTE: Be prepared to catch escaping coolant.

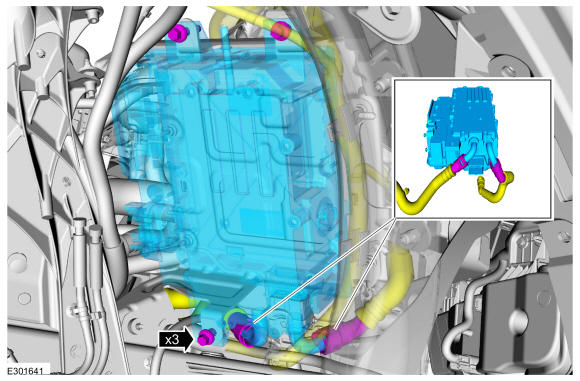

Disconnect and position aside the coolant tubes. Remove the bolts.

Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

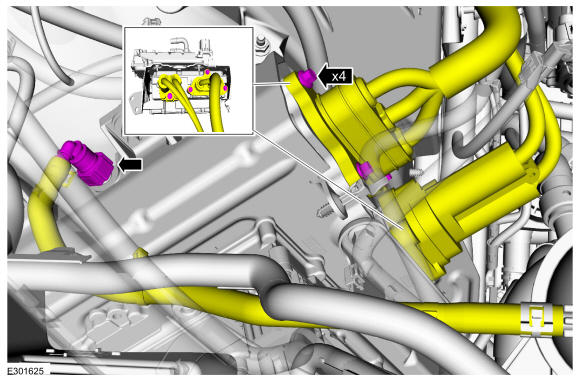

Disconnect the wiring harness and remove the inverter system controller
