Charging System

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

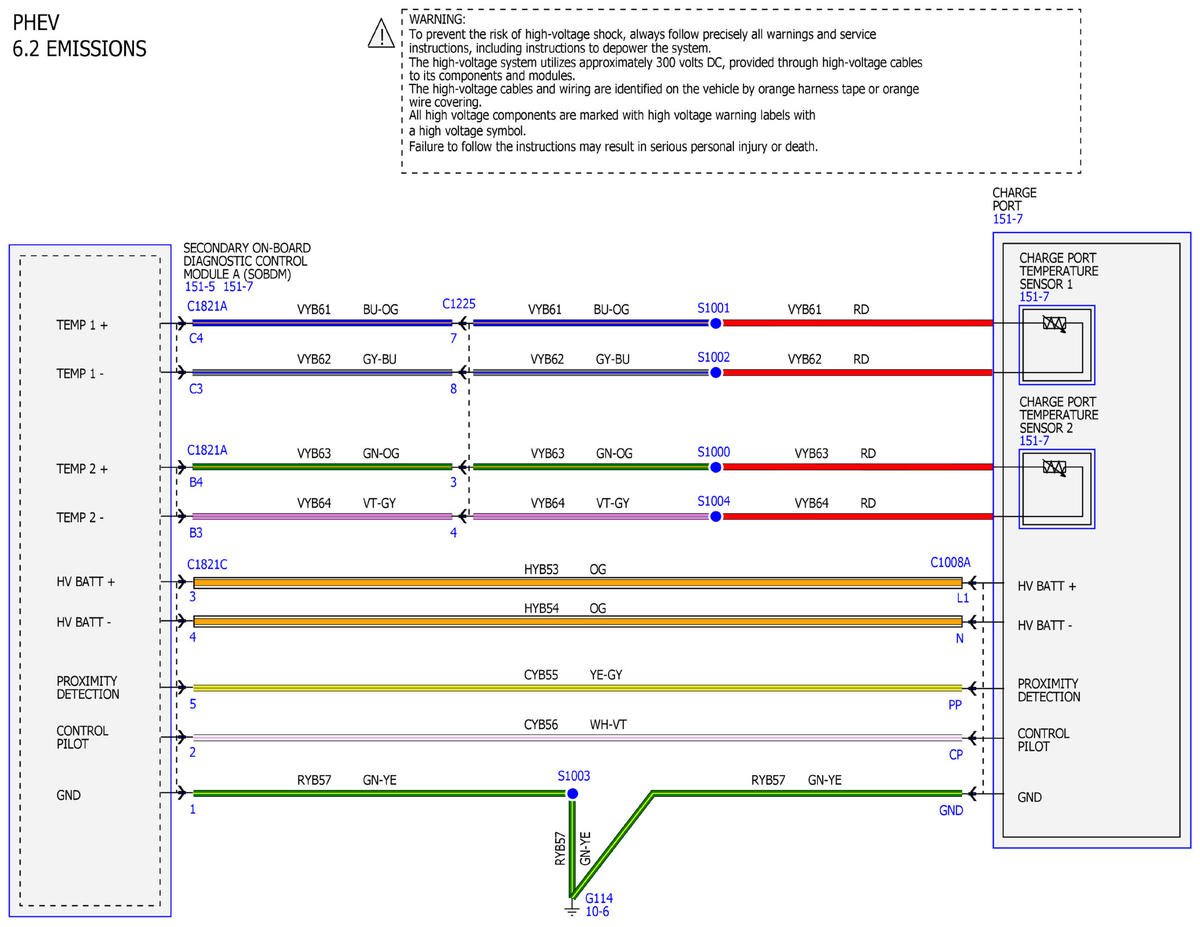

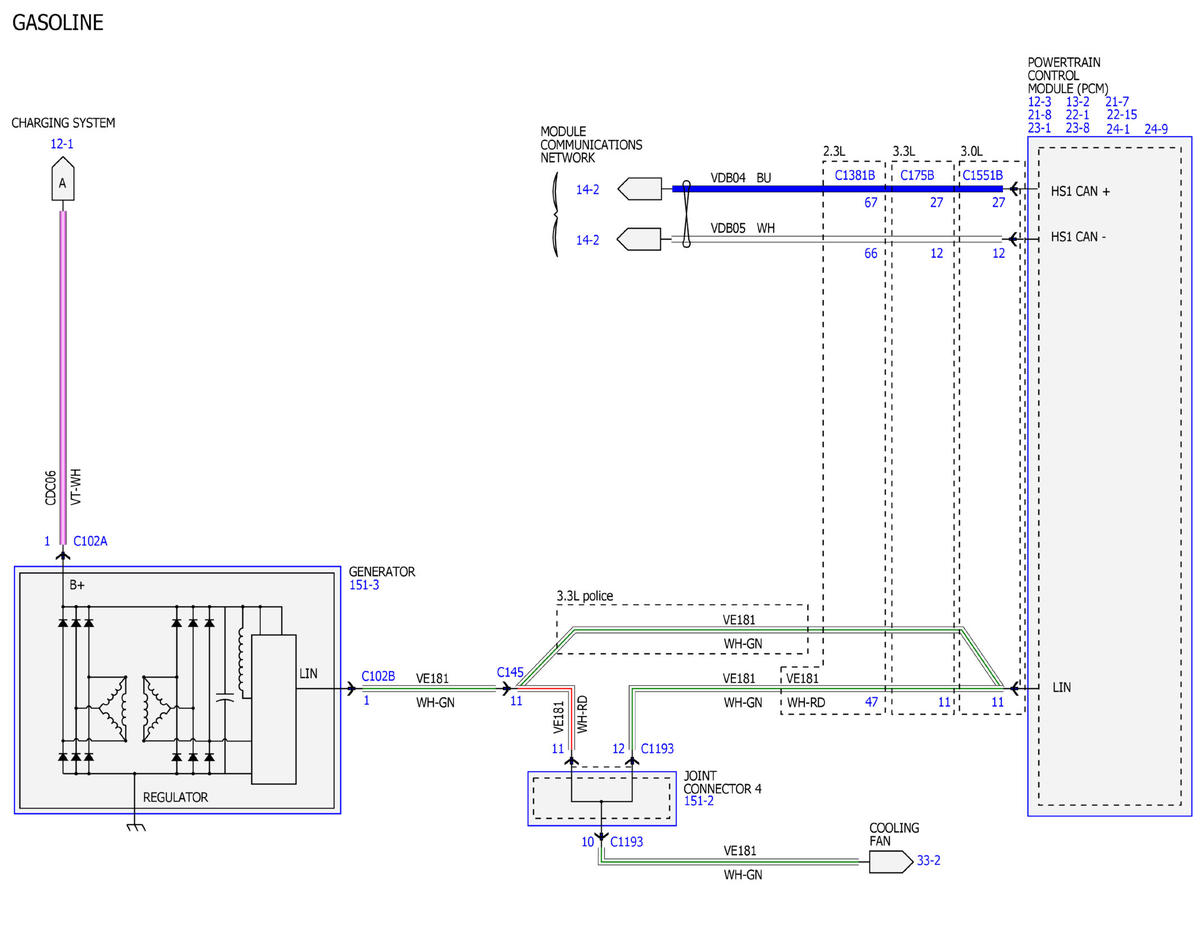

Fig 1: Charging System Wiring Diagram (1 Of 10)

Courtesy of FORD MOTOR COMPANY

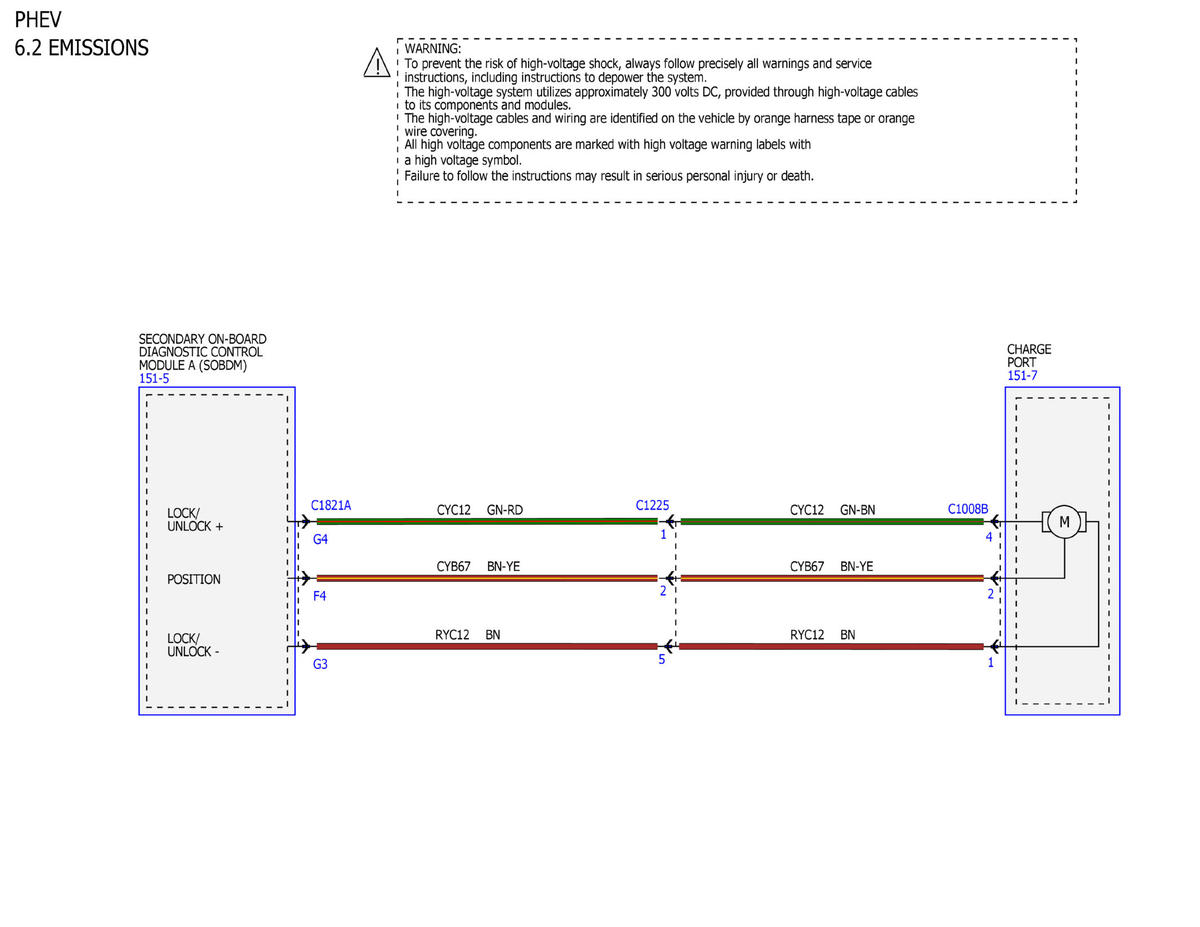

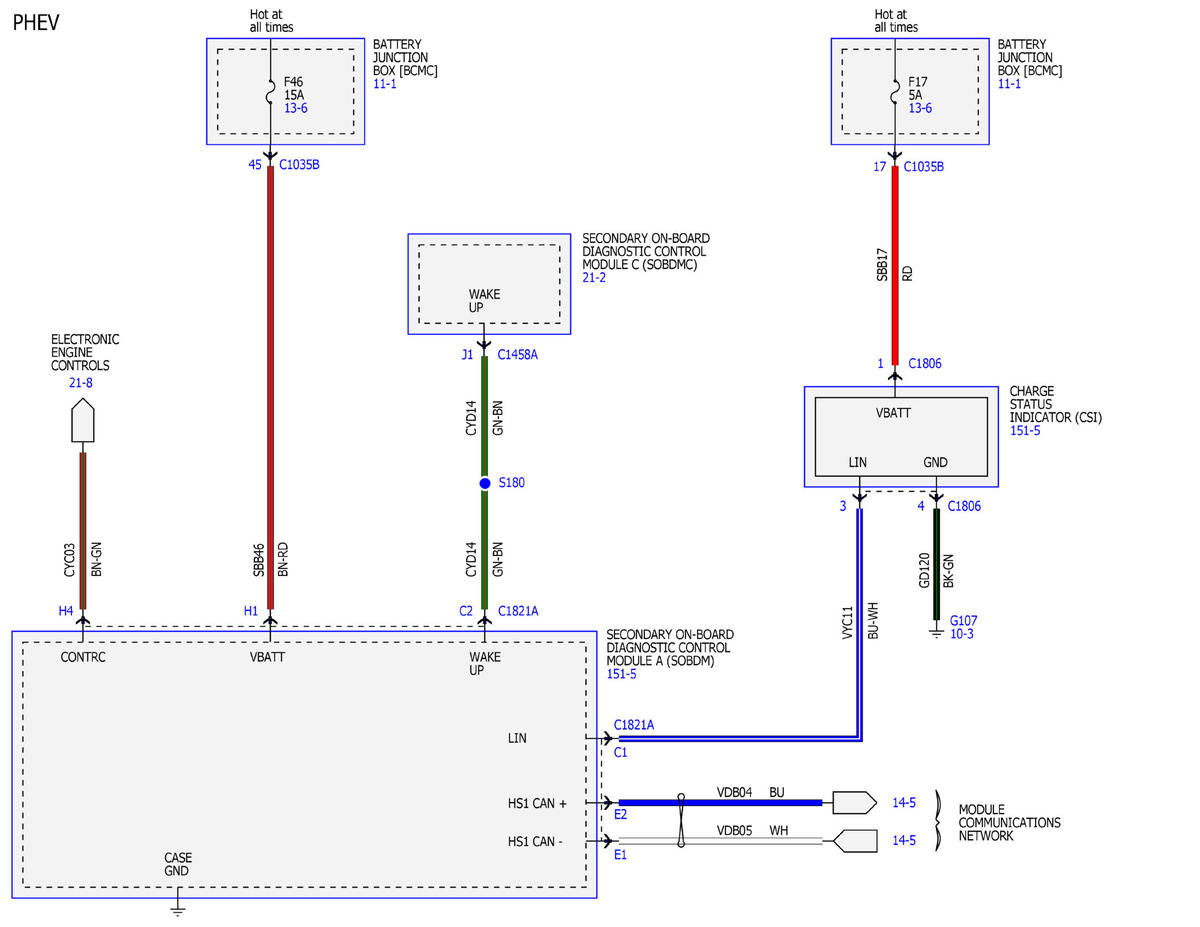

Fig 2: Charging System Wiring Diagram (2 Of 10)

Courtesy of FORD MOTOR COMPANY

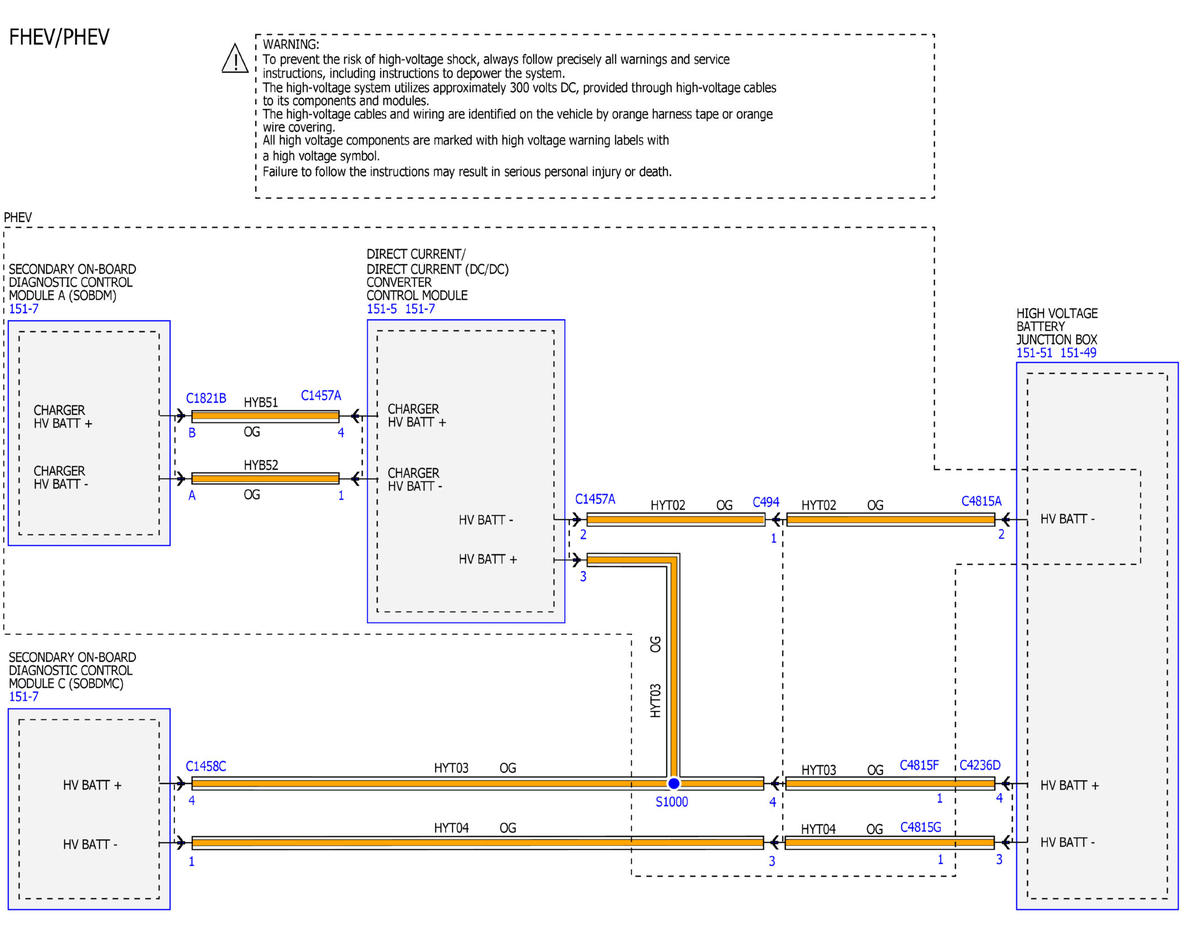

Fig 3: Charging System Wiring Diagram (3 Of 10)

Courtesy of FORD MOTOR COMPANY

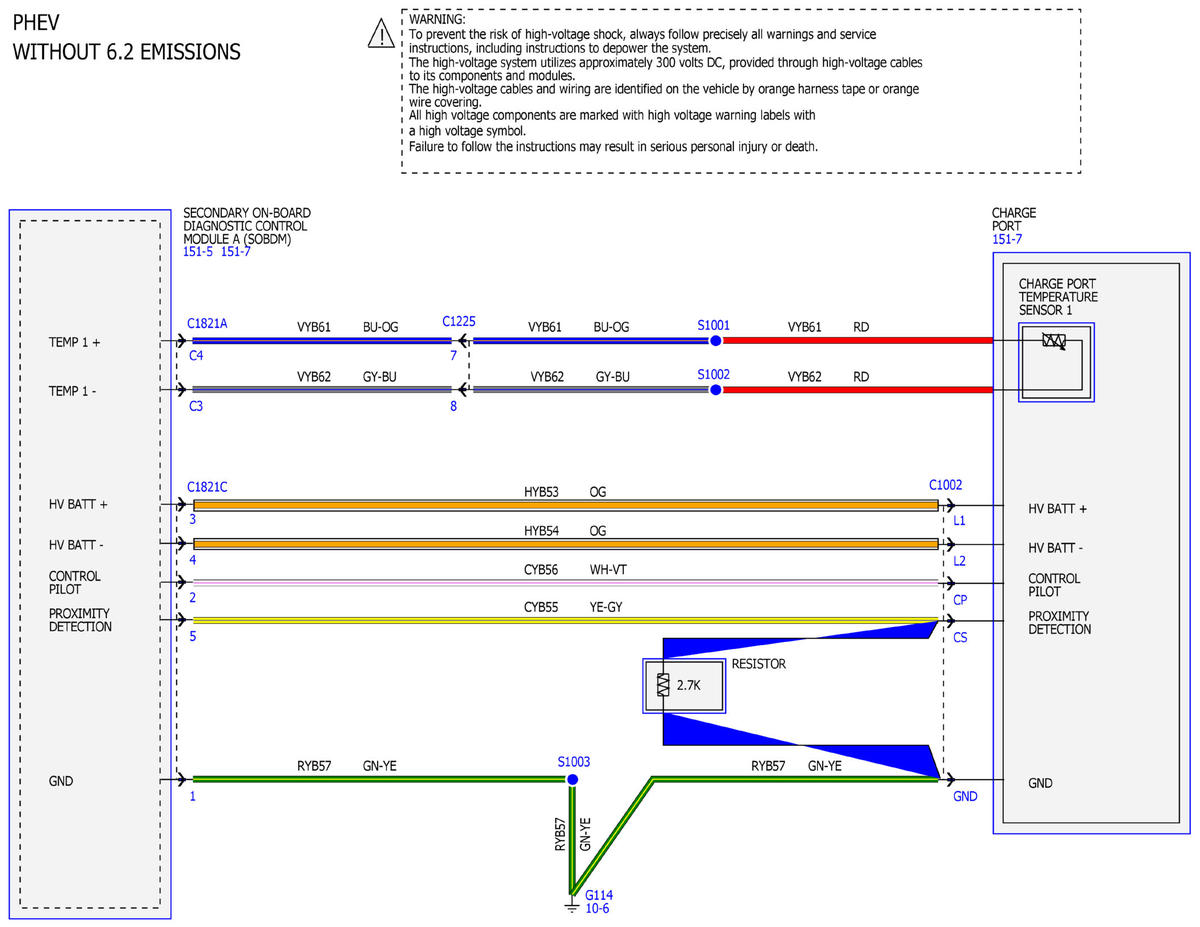

Fig 4: Charging System Wiring Diagram (4 Of 10)

Courtesy of FORD MOTOR COMPANY

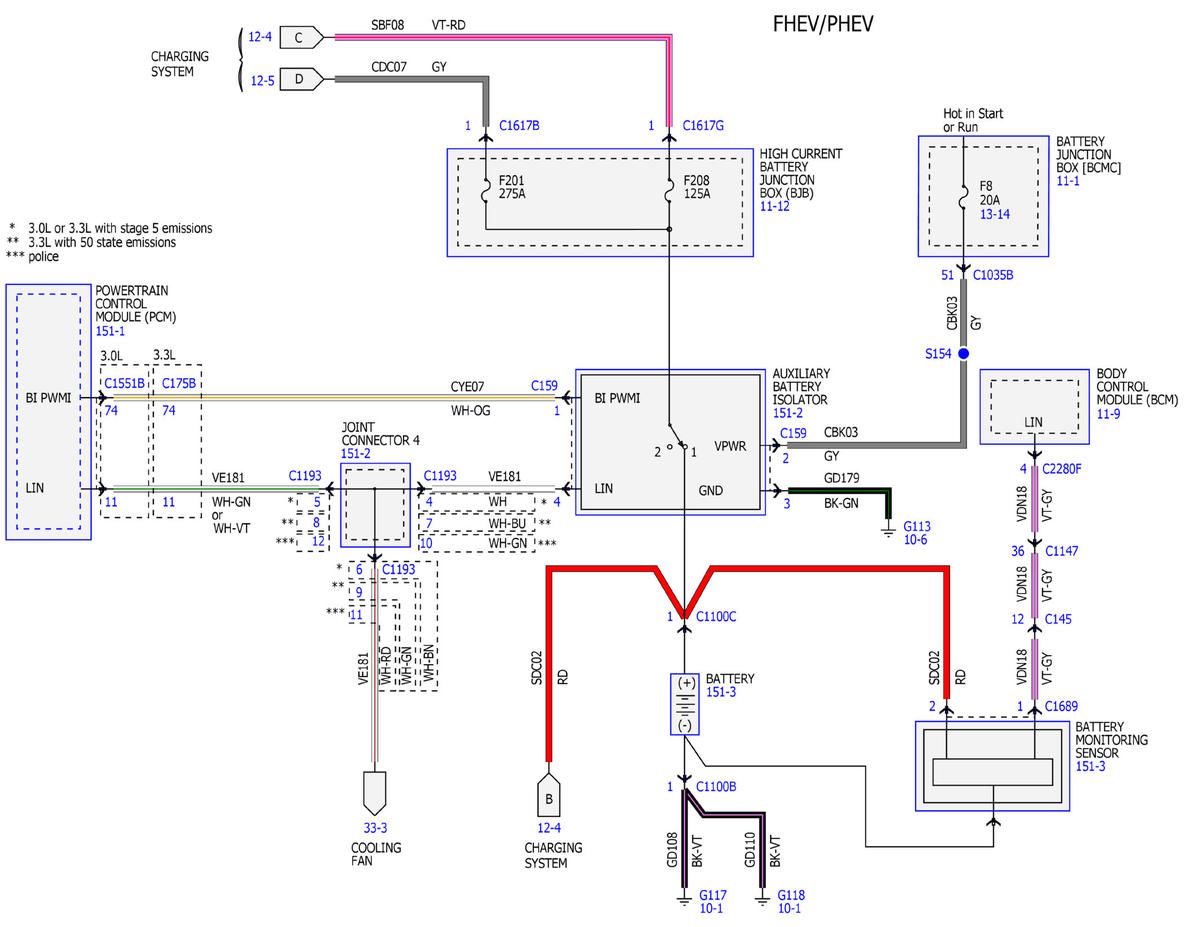

Fig 5: Charging System Wiring Diagram (5 Of 10)

Courtesy of FORD MOTOR COMPANY

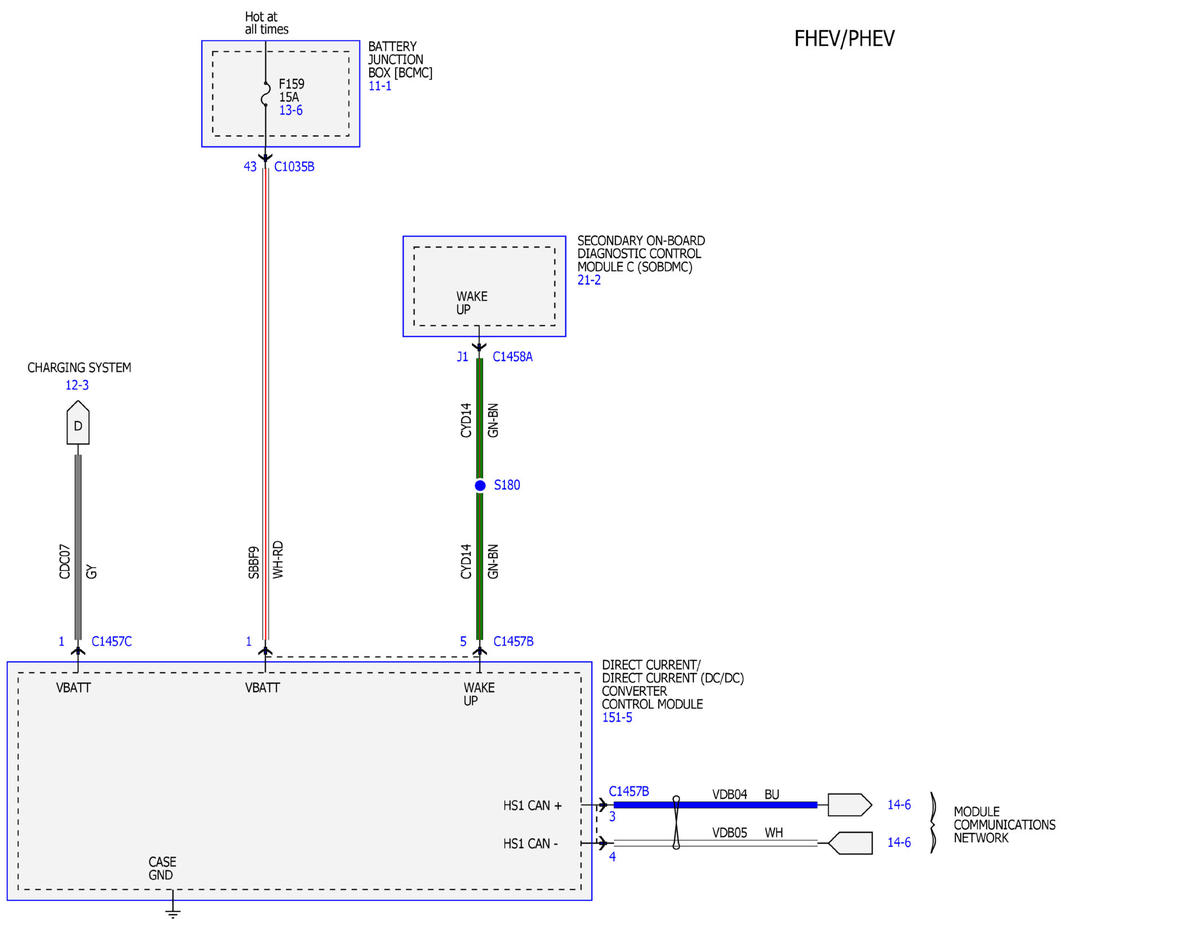

Fig 6: Charging System Wiring Diagram (6 Of 10)

Courtesy of FORD MOTOR COMPANY

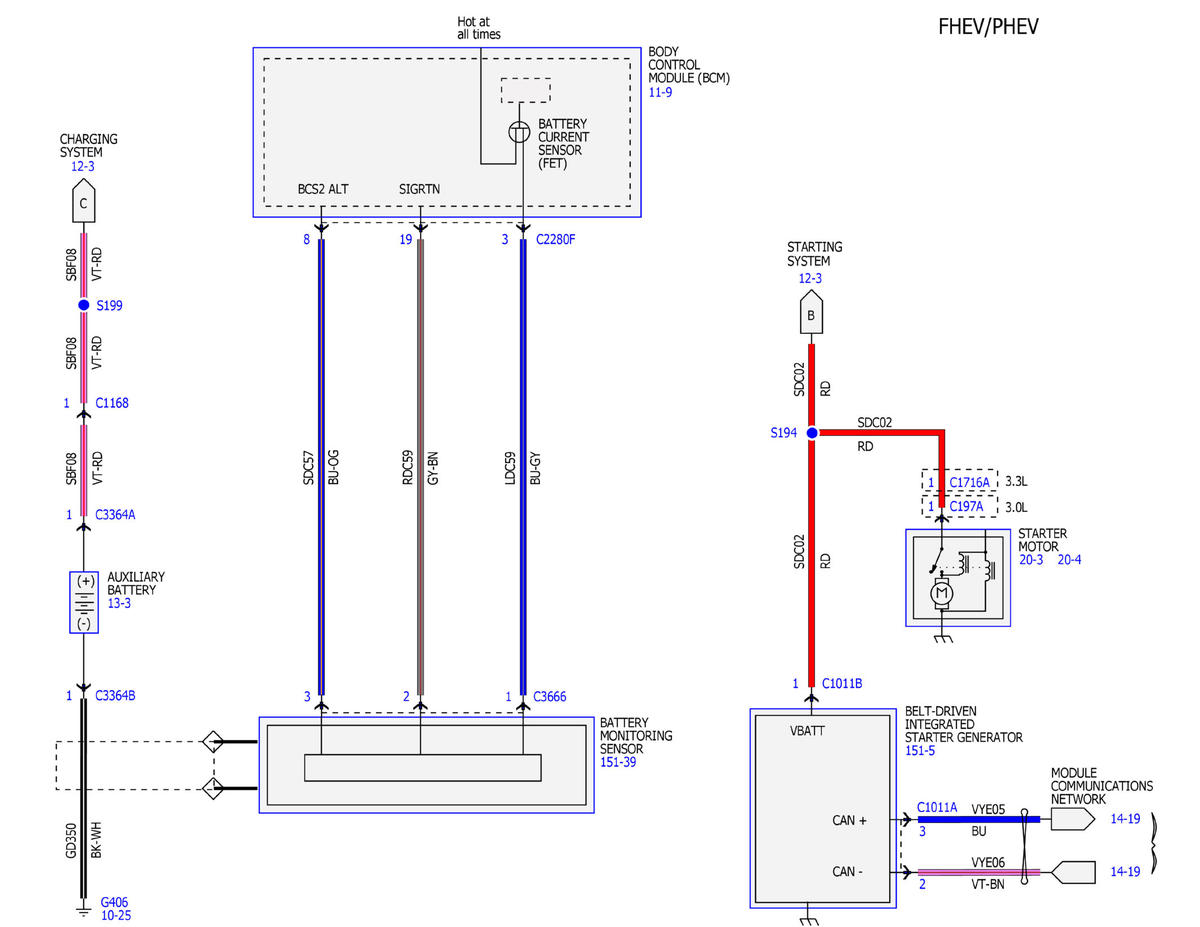

Fig 7: Charging System Wiring Diagram (7 Of 10)

Courtesy of FORD MOTOR COMPANY

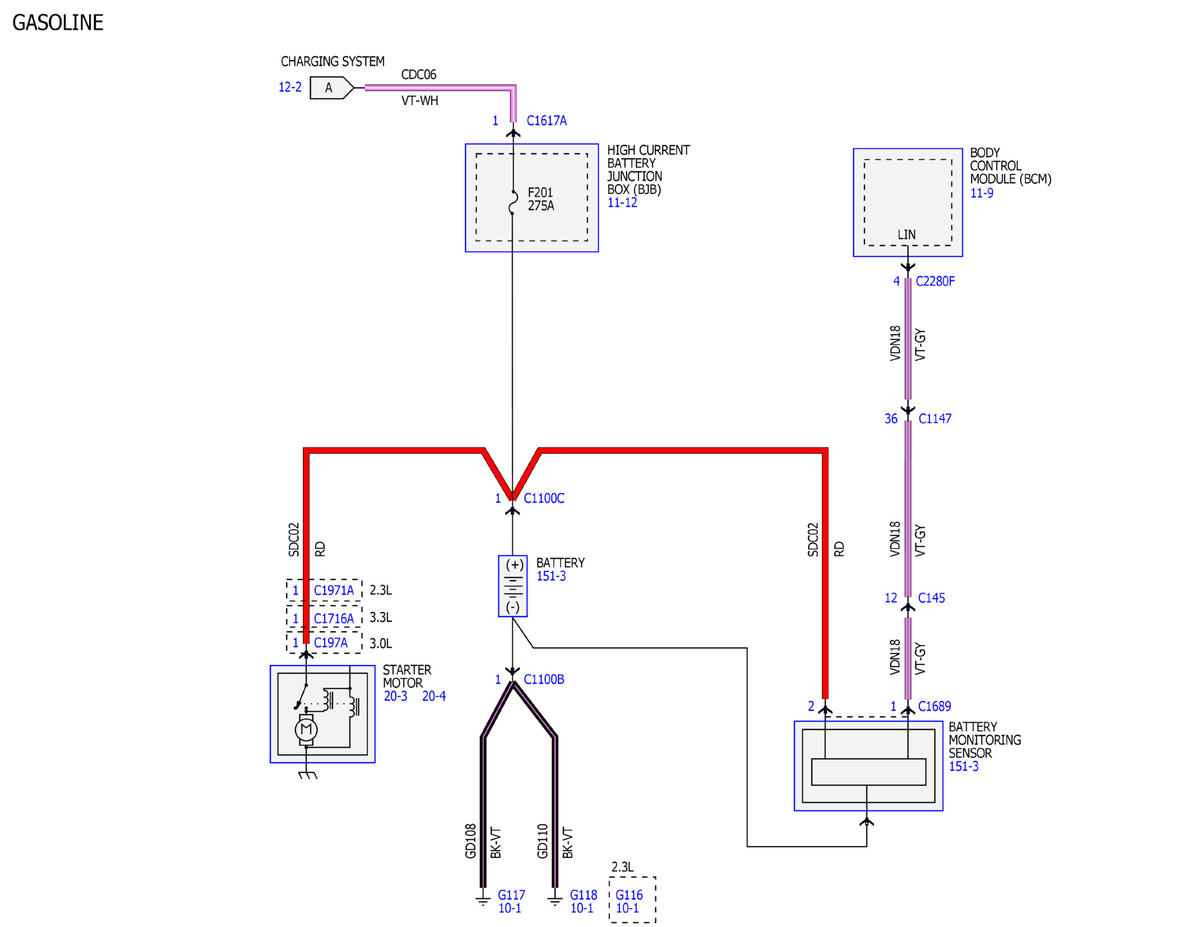

Fig 8: Charging System Wiring Diagram (8 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 9: Charging System Wiring Diagram (9 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 10: Charging System Wiring Diagram (10 Of 10)

Courtesy of FORD MOTOR COMPANY
