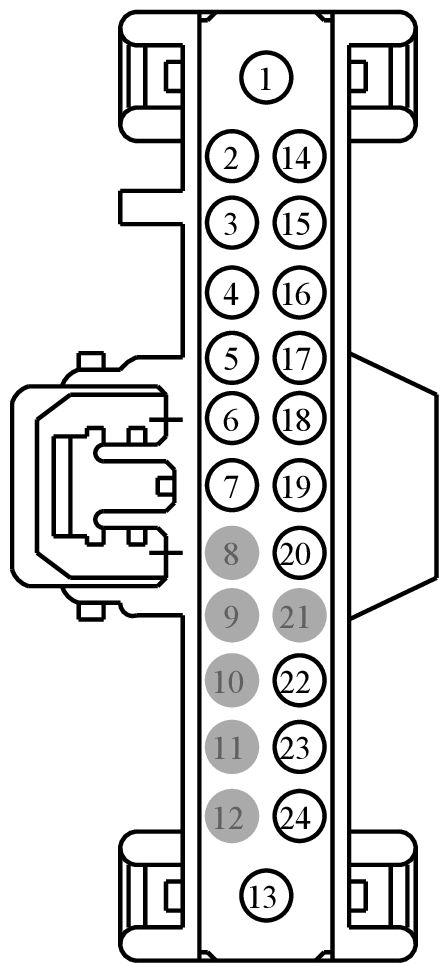

Connector End View C2431 - Gateway Module A (GWM)
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C2431 | GATEWAY MODULE A (GWM) | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14474-BAA | DU2Z-14474-EA | 2.80 |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| 9U5T-14474-XB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD214 (BK-GY) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | 97BG-14474-BAA | ||||
| 2 | VDB36 (BN-YE) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 | 8U5T-14474-BB | ||||
| 3 | VDB35 (BU-WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 HIGH | 8U5T-14474-BB | ||||
| 4 | VDB34 (GY-YE) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 1 LOW | 8U5T-14474-BB | ||||
| 5 | VDB33 (WH-BN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 1 HIGH | 8U5T-14474-BB | ||||
| 6 | VDB32 (VT-WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 LOW | 8U5T-14474-BB | ||||
| 7 | VDB31 (BU-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 HIGH | 8U5T-14474-BB | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | SBP07 (WH-OG) | 20 | FUSE - 7 OR CIRCUIT BREAKER | 97BG-14474-BAA | ||||
| 14 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 8U5T-14474-BB | ||||
| 15 | VDB30 (WH-GN) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | 8U5T-14474-BB | ||||
| 16 | VDB29 (GN-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | 8U5T-14474-BB | ||||
| 17 | VDB26 (BU) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | 9U5T-14474-XB | ||||
| 18 | VDB25 (OG) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | 9U5T-14474-XB | ||||
| 19 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | 8U5T-14474-BB | ||||
| 20 | VDB04 (BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | 8U5T-14474-BB | ||||
| 21 | * | * | Not Used | N/A | ||||
| 22 | VDB07 (OG) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | 9U5T-14474-XB | ||||
| 23 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | 9U5T-14474-XB | ||||
| 24 | SBP13 (GY-RD) | 22 | FUSE - 13 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1533
Service Part Number:
FU2Z-14S411-ALB
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
24
Vehicle Uses:
- DVD Player
- Module - Audio Control
- Module - Body Control
- Module - Fuel and Damper Control
- Module - Gateway
- Radio
- Test Connector - Diagnostic
Pigtail Kit Part Number WPT-1440
Service Part Number:
FU2Z-14S411-ALA
Gauge:
14 20
Pin material:
Tin & Silver
Cavities:
24
Vehicle Uses:
- DVD Player
- Module - Audio Control
- Module - Body Control
- Module Gateway
- Radio
- Test Connector - Diagnostic
