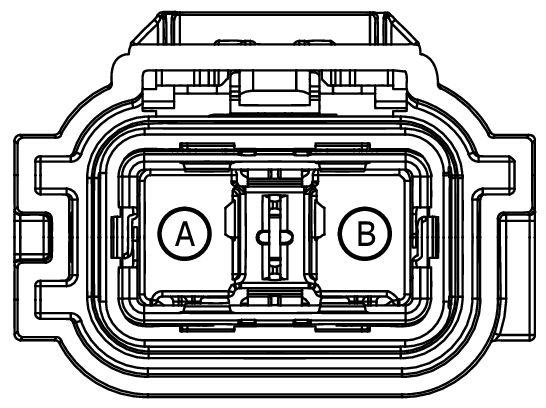

Connector End View C1803B - Air Conditioning Control Module (ACCM)
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1803B |
AIR CONDITIONING CONTROL MODULE (ACCM) |
|
14B323/14B322 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| A |
HYD16 (OG) |
12 |
CTRL MOD. - HYBRID AIR CONDITIONING # HIGH VOLTAGE NEG (HV-) |
|
N/A |
| A |
HYD16 (OG) |
10 |
CTRL MOD. - HYBRID AIR CONDITIONING # HIGH VOLTAGE NEG (HV-) |
|
N/A |
| B |
HYD15 (OG) |
12 |
CTRL MOD. - HYBRID AIR CONDITIONING # HIGH VOLTAGE POS (HV+) |
|
N/A |
| B |
HYD15 (OG) |
10 |
CTRL MOD. - HYBRID AIR CONDITIONING # HIGH VOLTAGE POS (HV+) |
|
N/A |
