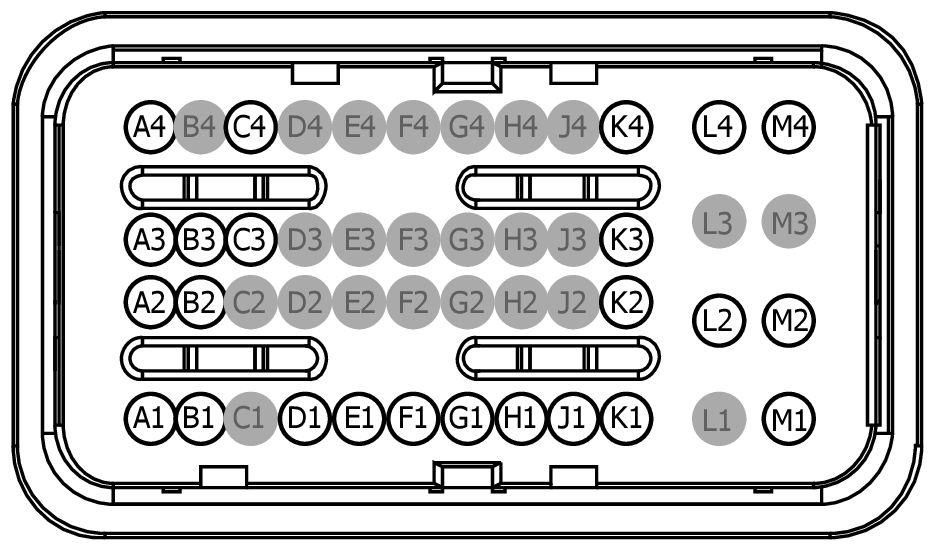

Connector End View C1458A - Secondary On-Board Diagnostic Control Module C (SOBDMC)
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1458A |
SECONDARY ON-BOARD DIAGNOSTIC CONTROL MODULE C (SOBDMC) |
|
14290 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| GU5T-14474-HA |
Not Available |
|
| DU5T-14474-GA |
Not Available |
|
| GU5T-14474-JA |
Not Available |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| A1 |
VYT15 (YE-GY) |
22 |
CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 1 (MR1) |
|
GU5T-14474-HA |
| A2 |
VYT19 (GN-BN) |
22 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE (MS2) |
|
GU5T-14474-HA |
| A3 |
VYT17 (BN-BU) |
22 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE (MS1) |
|
GU5T-14474-HA |
| A4 |
DYT17 (BK) |
22 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK (M_SHIELD) |
|
GU5T-14474-HA |
| B1 |
VYT16 (WH-GN) |
22 |
CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 2 (MR2) |
|
GU5T-14474-HA |
| B2 |
VYT20 (YE-VT) |
22 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE (MS4) |
|
GU5T-14474-HA |
| B3 |
VYT18 (BU-WH) |
22 |
TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE (MS3) |
|
GU5T-14474-HA |
| B4 |
* |
* |
Not Used |
|
N/A |
| C1 |
* |
* |
Not Used |
|
N/A |
| C2 |
* |
* |
Not Used |
|
N/A |
| C3 |
RYT21 (GN-WH) |
22 |
SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) - |
|
GU5T-14474-HA |
| C4 |
VYT21 (BU-GN) |
22 |
SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) + |
|
GU5T-14474-HA |
| D1 |
VYE05 (BU) |
22 |
TRANSMISSION CAN + |
|
GU5T-14474-HA |
| D2 |
* |
* |
Not Used |
|
N/A |
| D3 |
* |
* |
Not Used |
|
N/A |
| D4 |
* |
* |
Not Used |
|
N/A |
| E1 |
VYE06 (VT-BN) |
22 |
TRANSMISSION CAN - |
|
GU5T-14474-HA |
| E2 |
* |
* |
Not Used |
|
N/A |
| E3 |
* |
* |
Not Used |
|
N/A |
| E4 |
* |
* |
Not Used |
|
N/A |
| F1 |
VDB04 (BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
GU5T-14474-HA |
| F2 |
* |
* |
Not Used |
|
N/A |
| F3 |
* |
* |
Not Used |
|
N/A |
| F4 |
* |
* |
Not Used |
|
N/A |
| G1 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
GU5T-14474-HA |
| G2 |
* |
* |
Not Used |
|
N/A |
| G3 |
* |
* |
Not Used |
|
N/A |
| G4 |
* |
* |
Not Used |
|
N/A |
| H1 |
VYE04 (YE-OG) |
22 |
HEV LIN |
|
GU5T-14474-HA |
| H2 |
* |
* |
Not Used |
|
N/A |
| H3 |
* |
* |
Not Used |
|
N/A |
| H4 |
* |
* |
Not Used |
|
N/A |
| J1 |
CYD14 (GN-BN) |
22 |
CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
|
GU5T-14474-HA |
| J2 |
* |
* |
Not Used |
|
N/A |
| J3 |
* |
* |
Not Used |
|
N/A |
| J4 |
* |
* |
Not Used |
|
N/A |
| K1 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
|
GU5T-14474-HA |
| K2 |
CBB24 (VT-GY) |
22 |
FUSE - 24 OR CIRCUIT BREAKER |
|
GU5T-14474-HA |
| K3 |
CE613 (WH-VT) |
20 |
CTRL MOD. - LEFT MIRROR RETURN |
|
GU5T-14474-JA |
| K4 |
CYC03 (BN-GN) |
22 |
CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY ENABLE (CONT_PWR_EN) |
|
GU5T-14474-HA |
| L1 |
* |
* |
Not Used |
|
N/A |
| L2 |
CBB95 (BN-BU) |
20 |
FUSE - 95 OR CIRCUIT BREAKER |
|
DU5T-14474-GA |
| L3 |
* |
* |
Not Used |
|
N/A |
| L4 |
GD123 (BK-VT) |
20 |
GROUND - FENDER FRONT LEFT # 5TH POINT |
|
DU5T-14474-GA |
| M1 |
SBB05 (GY-BN) |
20 |
FUSE - 5 OR CIRCUIT BREAKER |
|
DU5T-14474-GA |
| M2 |
CBB95 (BN-BU) |
20 |
FUSE - 95 OR CIRCUIT BREAKER |
|
DU5T-14474-GA |
| M3 |
* |
* |
Not Used |
|
N/A |
| M4 |
GD123 (BK-VT) |
20 |
GROUND - FENDER FRONT LEFT # 5TH POINT |
|
DU5T-14474-GA |
