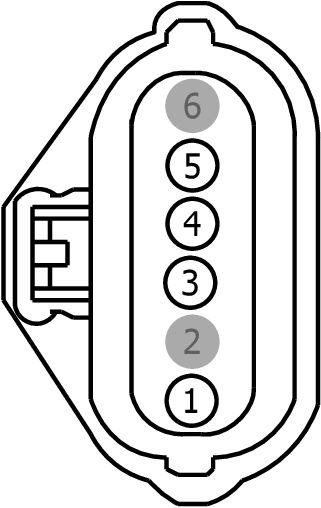

Connector End View C1457B - Direct Current/Direct Current (DC/DC) Converter Control Module
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1457B |
DIRECT CURRENT/DIRECT CURRENT (DC/DC) CONVERTER CONTROL MODULE |
|
14290 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| 6R8T-14474-CA |
Not Available |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBBF9 (WH-RD) |
20 |
FUSE - 159 |
|
6R8T-14474-CA |
| 2 |
* |
* |
Not Used |
|
N/A |
| 3 |
VDB04 (BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
6R8T-14474-AA |
| 4 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
6R8T-14474-AA |
| 5 |
CYD14 (GN-BN) |
22 |
CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
|
6R8T-14474-AA |
| 6 |
* |
* |
Not Used |
|
N/A |
