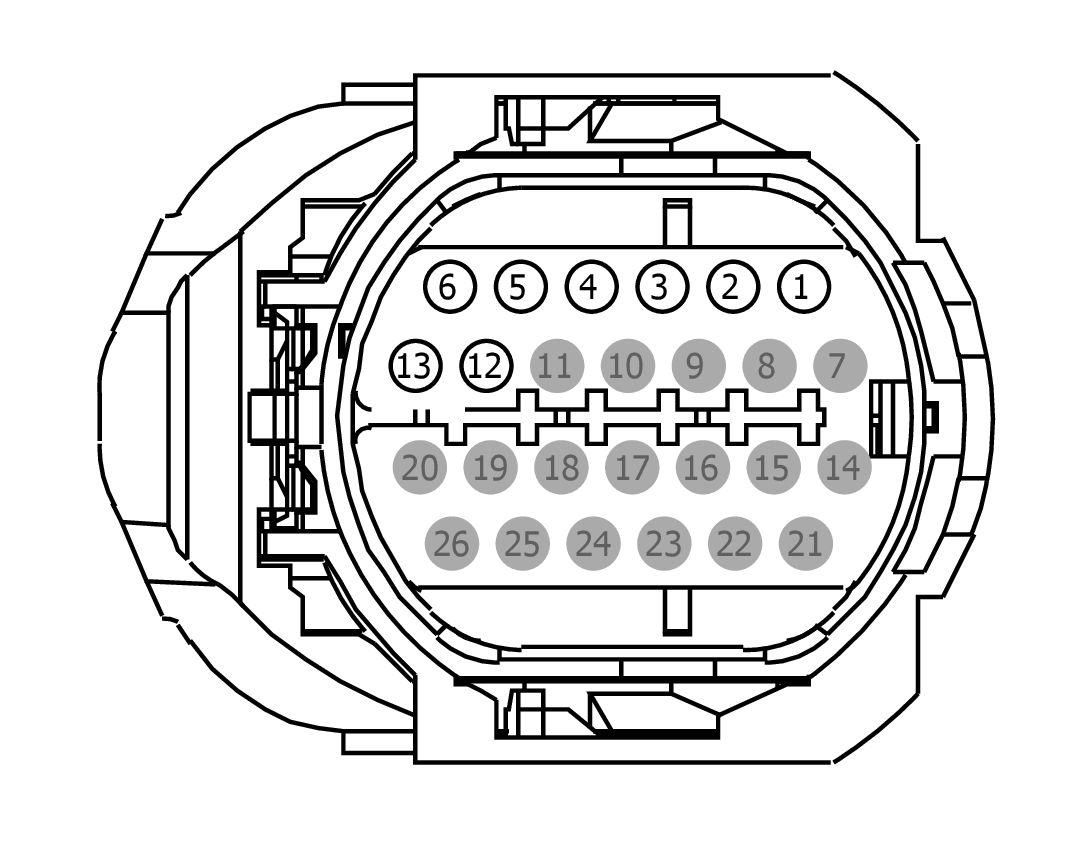

Connector End View C1280 - Transmission Sensor Speed Resolver

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1280	TRANSMISSION SENSOR SPEED RESOLVER		14B060	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6W8T-14474-BA	EU2Z-14474-BA	1.20

Pin	Circuit	Gauge	Circuit Function	Terminal Part Number
1	VYT19 (GN-BN)	20	TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE (MS2)	6W8T-14474-BA
2	VYT17 (BN-BU)	20	TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE (MS1)	6W8T-14474-BA
3	VYT15 (YE-GY)	20	CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 1 (MR1)	6W8T-14474-BA
4	VYT16 (WH-GN)	20	CTRL MOD. - HYBRID TRANSAXLE # MOTOR RESOLVER EXCITATION SIGNAL 2 (MR2)	6W8T-14474-BA
5	VYT20 (YE-VT)	20	TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK COSINE (MS4)	6W8T-14474-BA
6	VYT18 (BU-WH)	20	TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK SINE (MS3)	6W8T-14474-BA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	RYT21 (GN-WH)	20	SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) -	6W8T-14474-BA
13	VYT21 (BU-GN)	20	SENSOR - HYBRID TRANSAXLE MOTOR COIL TEMPERATURE (TMCOIL) +	6W8T-14474-BA
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A

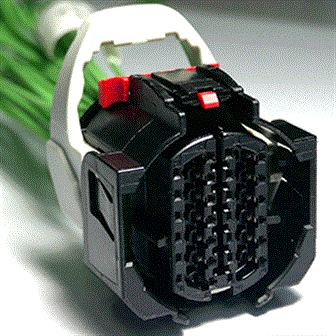

Available Pigtail Kits

Pigtail Kit Part Number WPT-1634

Courtesy of FORD MOTOR COMPANY

Service Part Number:

LU2Z-14S411-EA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Switch - Traction Control
Transmission
