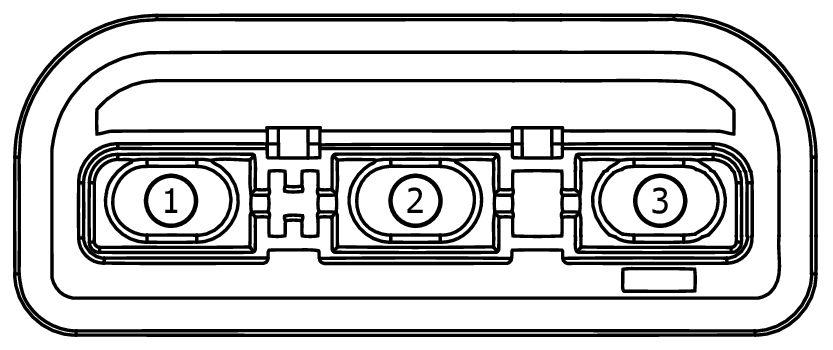

Connector End View C1201 - Electric Motor
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C1201 |
ELECTRIC MOTOR |
|
14B245 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
| |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
HYA04 (OG-GN) |
2 |
CONTROLLER - INVERTER SYSTEM # MOTOR W |
|
N/A |
| 2 |
HYA05 (OG) |
2 |
CONTROLLER - INVERTER SYSTEM # MOTOR V |
|
N/A |
| 2 |
HYA05 (OG-GN) |
2 |
CONTROLLER - INVERTER SYSTEM # MOTOR V |
|
N/A |
| 3 |
HYA06 (OG-BU) |
2 |
CONTROLLER - INVERTER SYSTEM # MOTOR U |
|
N/A |
