Connector End View C1035B - BATTERY JUNCTION BOX [BCMC]

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1035B BATTERY JUNCTION BOX [BCMC] 14290 part# N/A Not Available

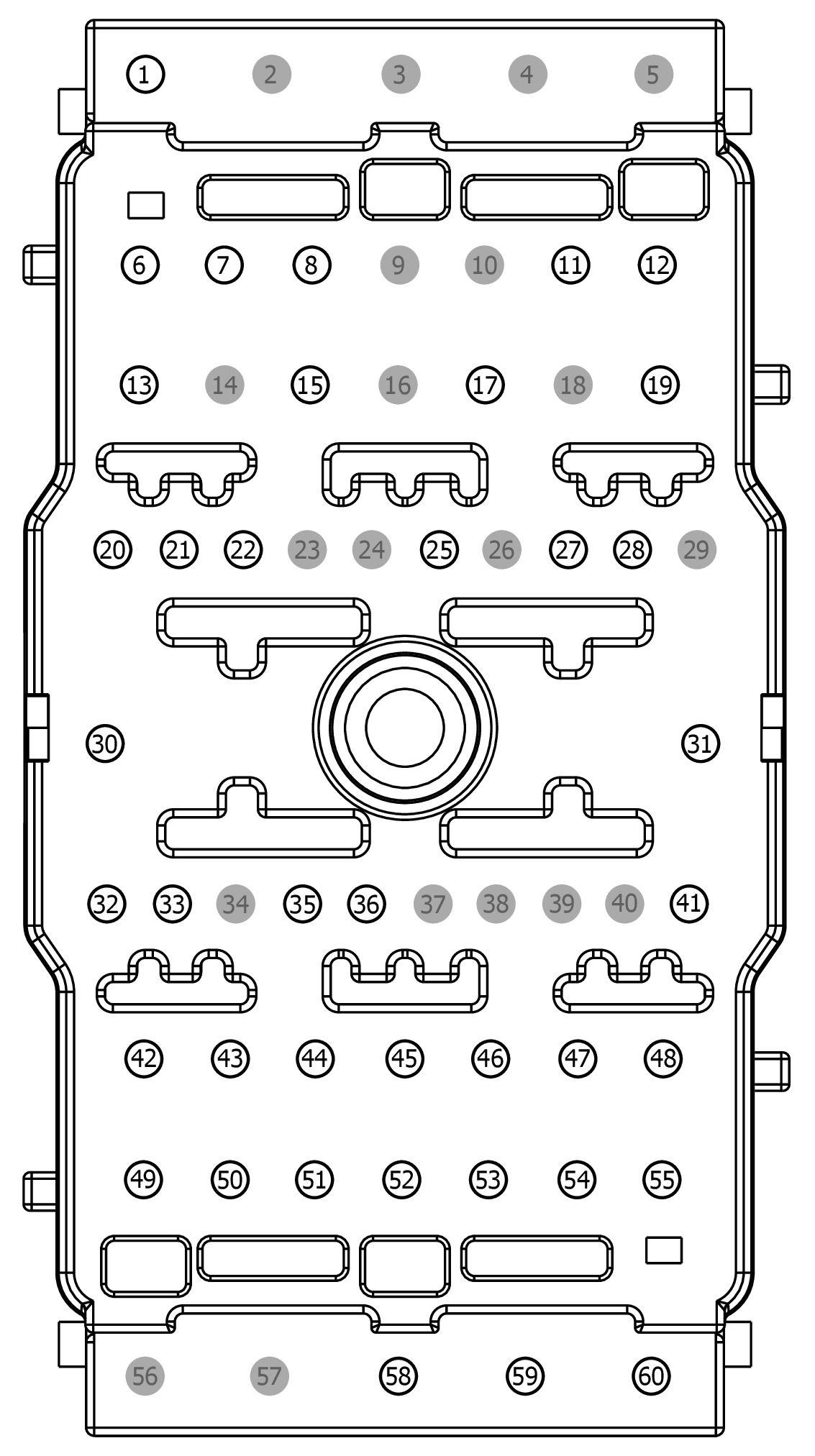

GFDWR168004Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
EU5T-14474-BAA Not Available
EU5T-14474-GA Not Available
EU5T-14474-FA EU2Z-14474-AB 2.80
XF2T-14474-CA EU2Z-14474-AB 2.80
F8VB-14474-BA EU2Z-14474-AB 2.80
BU5T-14474-UA DU2Z-14474-DA 1.50
EU5T-14474-EA EU2Z-14474-AB 2.80
EU5T-14474-HA EU2Z-14474-AB 2.80
F8VB-14474-AA EU2Z-14474-AB 2.80
XF2T-14474-BA EU2Z-14474-AB 2.80
YF1T-14474-BA KU2Z-14474-DA 6.30
DU5T-14474-TA KU2Z-14474-DA 6.30
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CDC25 (BN-GN) 14 RELAY - STARTER EU5T-14474-FA
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 CBBH0 (YE-OG) 22 FUSE - 170 OR CIRCUIT BREAKER EU5T-14474-BAA
7 CBBG9 (VT-GY) 22 FUSE - 169 OR CIRCUIT BREAKER XF2T-14474-CA
8 CBBG8 (GY-YE) 18 FUSE - 168 OR CIRCUIT BREAKER F8VB-14474-BA
9 * * Not Used N/A
10 * * Not Used N/A
11 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW F8VB-14474-BA
11 VDB05 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW F8VB-14474-BA
12 VDB04 (BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH F8VB-14474-BA
12 VDB04 (BU-WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH F8VB-14474-BA
13 CBB95 (BN-BU) 18 FUSE - 95 OR CIRCUIT BREAKER F8VB-14474-BA
14 * * Not Used N/A
15 CBB97 (BN-GN) 22 FUSE - 97 OR CIRCUIT BREAKER EU5T-14474-BAA
16 * * Not Used N/A
17 SBB17 (RD) 22 FUSE - 17 OR CIRCUIT BREAKER EU5T-14474-BAA
18 * * Not Used N/A
19 CH302 (WH-BN) 22 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) EU5T-14474-BAA
20 CYC03 (BN-GN) 22 CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY ENABLE (CONT_PWR_EN) N/A
20 CYC03 (BN-GN) 20 CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY ENABLE (CONT_PWR_EN) N/A
21 CDC54 (WH-GN) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-UA
22 CDC12 (YE) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) BU5T-14474-UA
23 * * Not Used N/A
24 * * Not Used N/A
25 CE613 (WH-VT) 20 CTRL MOD. - LEFT MIRROR RETURN BU5T-14474-UA
26 * * Not Used N/A
27 LYB24 (WH-OG) 22 CTRL MOD. - TRACTION BATTERY CONTROL # BATTERY COOLANT SHUTOFF VALVE BU5T-14474-UA
28 CYE10 (BU-GN) 22 SENSOR - HIGH VOLTAGE BATTERY BU5T-14474-UA
29 * * Not Used N/A
30 CBB69 (WH-VT) 14 FUSE - 69 OR CIRCUIT BREAKER DU5T-14474-TA
31 GD112 (BK-GN) 18 GROUND - COWL TOP LEFT DU5T-14474-TA
32 CE237 (BN-RD) 20 CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) BU5T-14474-UA
32 CE237 (BN-WH) 20 CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) BU5T-14474-UA
33 CRW24 (GY) 22 RELAY - FRONT WASHER BU5T-14474-UA
34 * * Not Used N/A
35 CE226 (GY-RD) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-UA
35 CE226 (YE-BU) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-UA
36 RE226 (GN-WH) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - BU5T-14474-UA
36 RE226 (GN) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - BU5T-14474-UA
37 * * Not Used N/A
38 * * Not Used N/A
39 * * Not Used N/A
40 * * Not Used N/A
41 CH401 (VT-WH) 20 RELAY - A/C CLUTCH BU5T-14474-UA
42 CBB16 (BU-RD) 20 FUSE - 16 OR CIRCUIT BREAKER LATE PRODUCTION EU5T-14474-EA
42 CBB16 (BU-GN) 20 FUSE - 16 OR CIRCUIT BREAKER EARLY PRODUCTION EU5T-14474-EA
43 SBBF9 (WH-RD) 20 FUSE - 159 F8VB-14474-BA
44 CBB14 (VT-OG) 14 FUSE - 14 OR CIRCUIT BREAKER EU5T-14474-FA
45 SBB46 (BN-RD) 18 FUSE - 46 OR CIRCUIT BREAKER F8VB-14474-BA
46 SBB05 (GY-RD) 22 FUSE - 5 OR CIRCUIT BREAKER XF2T-14474-CA
47 CBB24 (VT-GN) 22 FUSE - 24 OR CIRCUIT BREAKER EU5T-14474-BAA
47 CBB24 (VT-BN) 22 FUSE - 24 OR CIRCUIT BREAKER EU5T-14474-BAA
48 CBB23 (BN-YE) 22 FUSE - 23 OR CIRCUIT BREAKER EU5T-14474-BAA
49 CBK04 (VT-RD) 14 FUSE - 11 OR CIRCUIT BREAKER (VPWR 4) EU5T-14474-FA
50 CBB06 (WH-BU) 10 FUSE - 6 OR CIRCUIT BREAKER EU5T-14474-HA
51 CBK03 (GY) 14 FUSE - 12 OR CIRCUIT BREAKER (VPWR 3) F8VB-14474-AA
52 CBK02 (GN) 16 FUSE - 8 OR CIRCUIT BREAKER (VPWR 2) F8VB-14474-BA
53 CBB21 (BU-GY) 14 FUSE - 21 OR CIRCUIT BREAKER EU5T-14474-GA
53 CBB21 (BU-OG) 16 FUSE - 21 OR CIRCUIT BREAKER EU5T-14474-GA
54 CBB26 (BU-WH) 10 FUSE - 26 OR CIRCUIT BREAKER EU5T-14474-HA
55 CBBF5 (YE-GY) 10 FUSE - 26 OR CIRCUIT BREAKER XF2T-14474-BA
56 * * Not Used N/A
57 * * Not Used N/A
58 SBB28 (GN-RD) 8 FUSE - 28 OR CIRCUIT BREAKER EU5T-14474-HA
59 SBB29 (GY-RD) 8 FUSE - 29 OR CIRCUIT BREAKER YF1T-14474-BA
60 CRH01 (YE-RD) 12 RELAY - HORN EU5T-14474-FA
