Electric Motor Electronics Coolant Pump: Removal
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the electric powertrain cooling system. Refer to: Cooling System Filling and Bleeding .
- Remove the RH fender splash shield. Refer to: Fender Splash Shield .

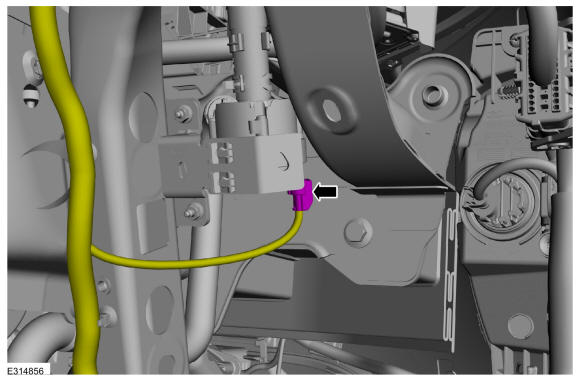

- Disconnect the electrical connector.

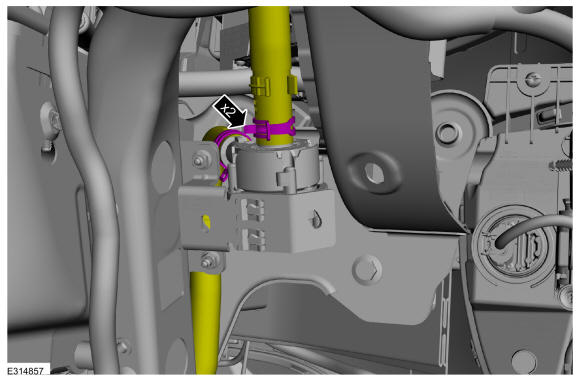

- Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

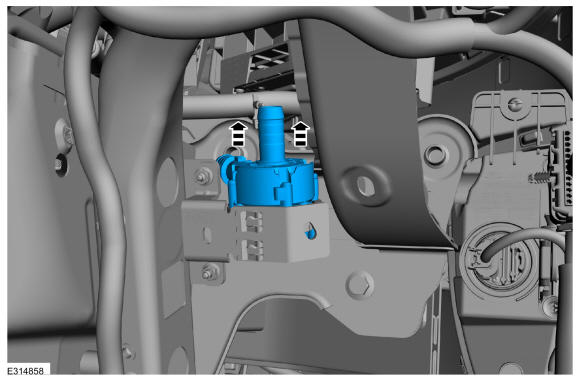

- Remove the electric motor electronics coolant pump.
