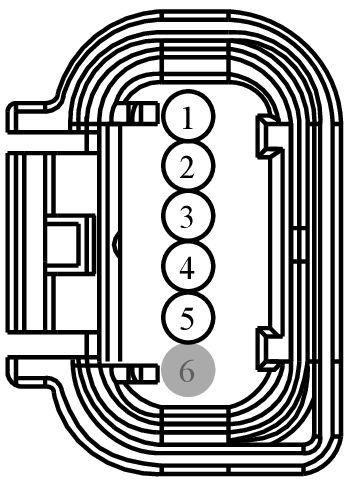

Connector End View C4357 - REAR PARKING AID CAMERA
WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4357 | REAR PARKING AID CAMERA | 13412 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBB25 (WH-OG) | 20 | FUSE - 25 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
| 2 | VDN14 (YE-VT) | 20 | CTRL MOD. - LIN BUS # BCM 6 | 8U5T-14474-BB | ||||
| 3 | VMP44 (VT-GY) | 20 | CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - | 8U5T-14474-BB | ||||
| 4 | VMP43 (GN-BU) | 20 | CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + | 8U5T-14474-BB | ||||
| 5 | DMP43 (BK) | 20 | CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT D | 8U5T-14474-BB | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1556
Service Part Number:
CU2Z-14S411-AEB
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Front
- Camera - Reverse Park Aid
Pigtail Kit Part Number WPT-1280
Service Part Number:
CU2Z-14S411-AEA
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
