Fuel Tank Filler Pipe: Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation steps.

Disconnect the battery. Refer to: Battery Disconnect and Connect .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the LHR wheel and tire. Refer to: Wheel and Tire .

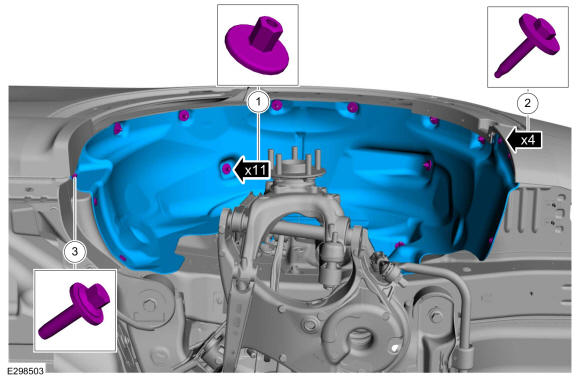

- Remove the nuts.
  Torque: 22 lb.in (2.5 Nm)
- Remove the screws.
  Torque: 13 lb.in (1.5 Nm)
- Remove the bolt.
  Torque: 89 lb.in (10 Nm)
- Remove the LHR wheel liner.
Courtesy of FORD MOTOR COMPANY

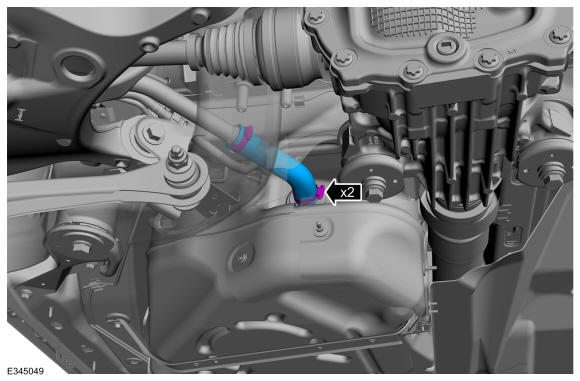

Loosen both clamps and remove the hose.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

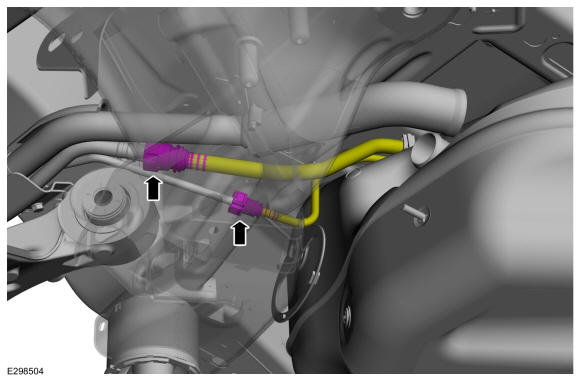

- Remove the quick release couplings. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

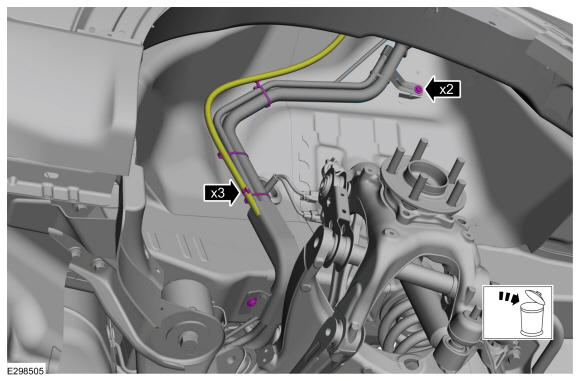

- Detach the clip and position the drain hose aside.
- Remove and discard the bolts.
  Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

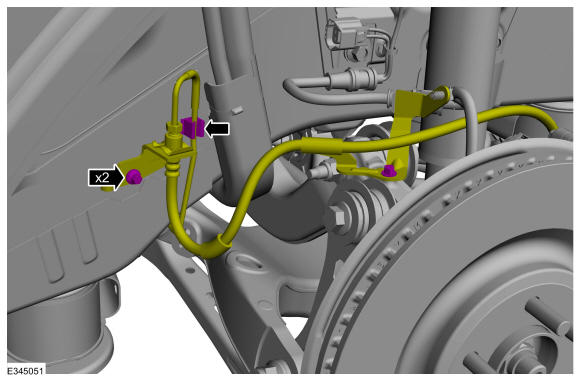

- Detach the clip.
- Remove bolts and position aside the brake hose.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY
Remove and Discard the Fuel Filler Door Assembly. Refer to: Fuel Filler Door Assembly .
Remove wheel hub nut. Refer to: Wheel Bearing and Wheel Hub .
- Support the lower control arm using a jack stand.

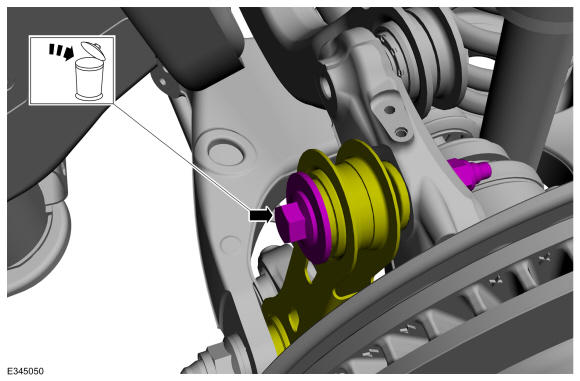

- Remove and discard the upper control arm outer bolt and nut.
  Torque: 76 lb.ft (103 Nm)
Courtesy of FORD MOTOR COMPANY

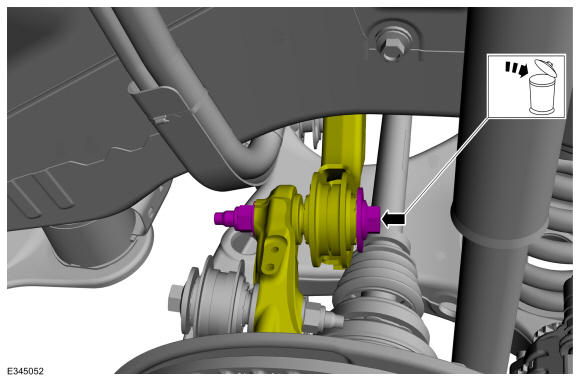

Remove and discard the lower arm vertical link upper bolt and position aside the knuckle to allow room to remove the fuel filler pipe.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

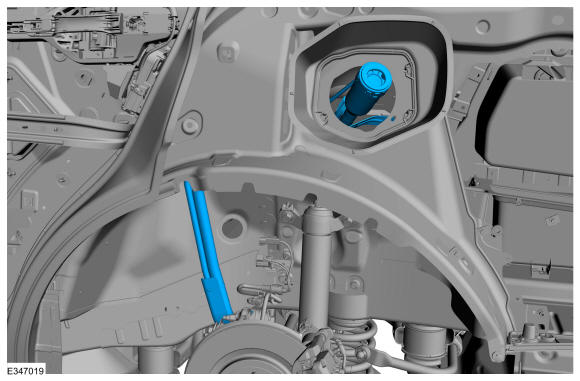

Remove the fuel filler pipe by pulling up on the pipe through the fuel filler door assembly hole and swinging the bottom of the fuel filler pipe past the subframe.
