Fuel Pump and Sender Unit: Installation

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take extra care not to damage the fuel tank level sensor float and arm.

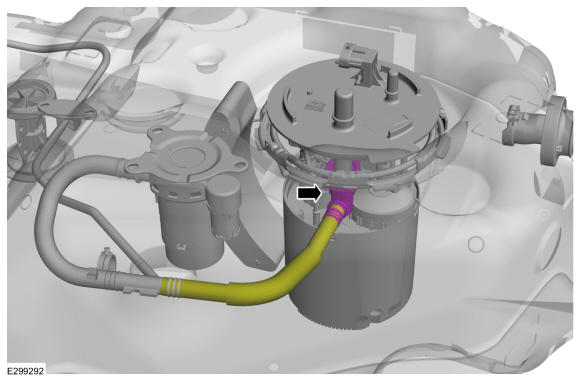

Reconnect the vapor line. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new O-ring seal is installed.

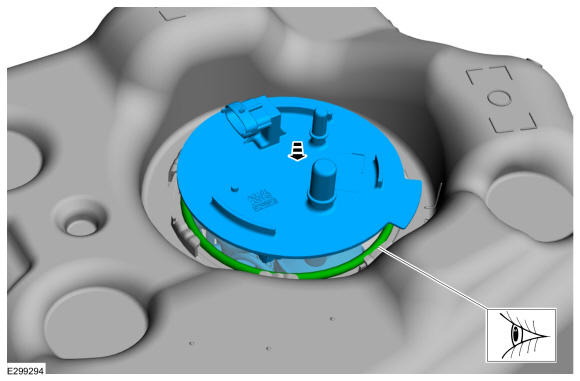

NOTE: Make sure that the seal is correctly located.

Courtesy of FORD MOTOR COMPANY

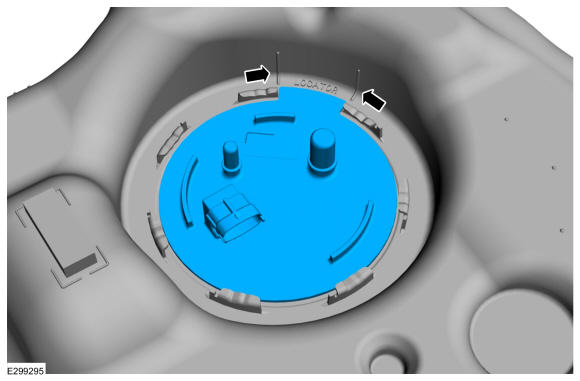

NOTE: Make sure that the installation marks are aligned.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
