Fuel Lines: Removal
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .

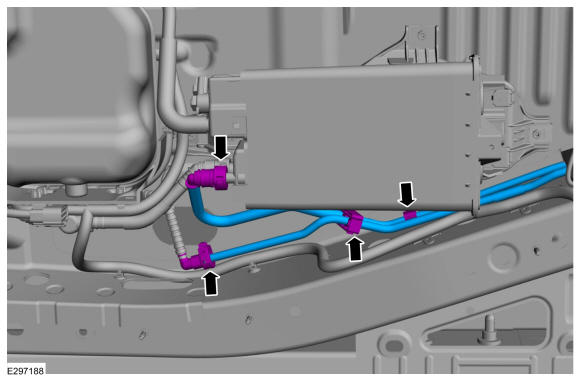

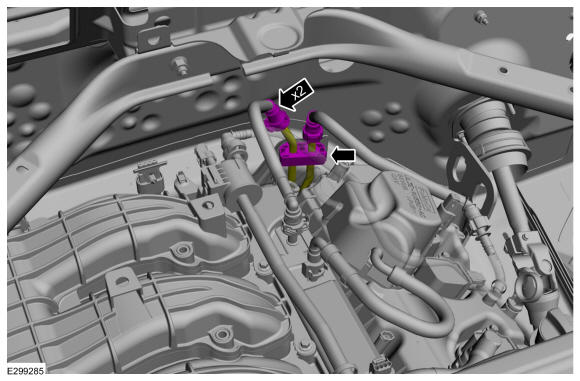

- Remove the quick release couplings and detach the retainer clip. Refer to: Quick Release Coupling
.

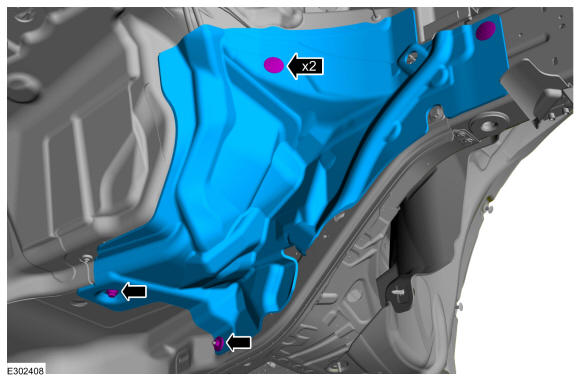

- Remove the fasteners and Heat shield.
Torque: 89 lb.in (10 Nm)

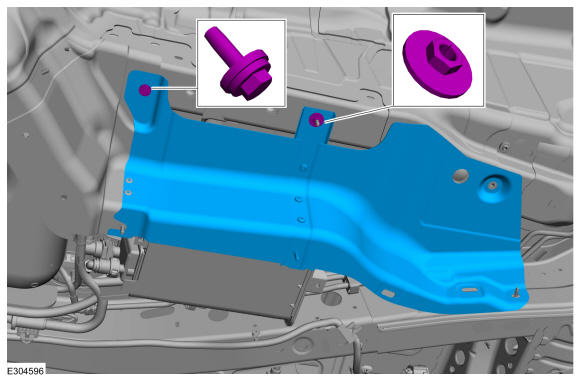

- Remove the fasteners and Heat shield.
Torque: 89 lb.in (10 Nm)

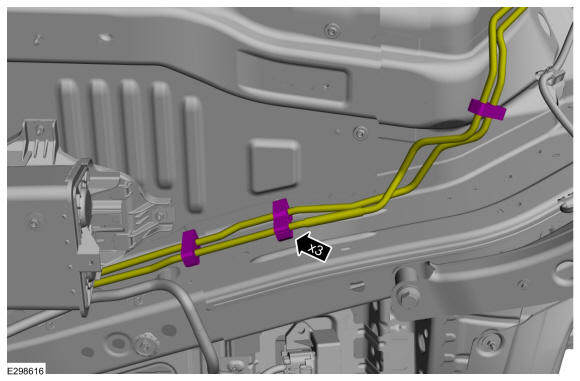

- Remove the retainer clips.
- Remove the quick release couplings and detach the retainer clips. Refer to: Quick Release Coupling .
