Electric Powertrain Cooling - Component Location
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

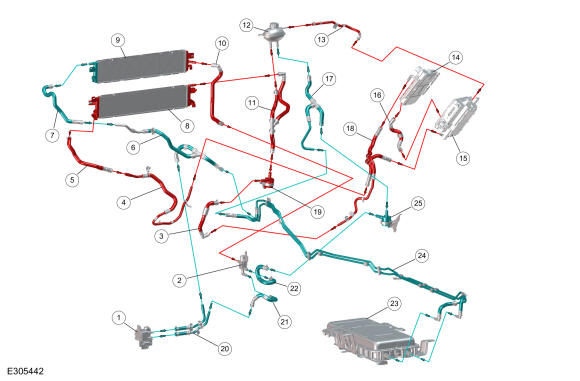

| Item | Description |
|---|---|
| 1 | High voltage battery coolant cooler |
| 2 | High voltage battery coolant diverter valve |
| 3 | Motor electronic coolant pump outlet hose |
| 4 | Heater hose assembly |
| 5 | Electric motor electronics radiator outlet hose |
| 6 | High voltage battery radiator hose assembly |
| 7 | High voltage battery radiator outlet hose |
| 8 | Electric motor electronics radiator |
| 9 | High voltage battery radiator |
| 10 | High voltage battery radiator inlet hose |
| 11 | Motor electronic coolant pump inlet hose |
| 12 | Degas bottle |
| 13 | Degas bottle inlet hose |
| 14 | High voltage to low voltage converter assembly |
| 15 | Transmitter inverter control module |
| 16 | High voltage to low voltage converter outlet hose |
| 17 | Degas bottle hose assembly |
| 18 | High voltage to low voltage converter inlet hose |
| 19 | Electric motor electronics coolant pump |
| 20 | High voltage battery coolant cooler inlet hose |
| 21 | High voltage battery coolant diverter valve outlet hose |
| 22 | High voltage battery coolant diverter valve inlet hose |
