Rear Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover

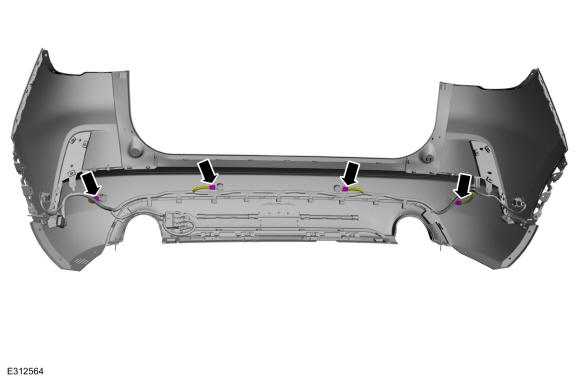

  2. Disconnect the electrical connectors.
    GFD652755Courtesy of FORD MOTOR COMPANY

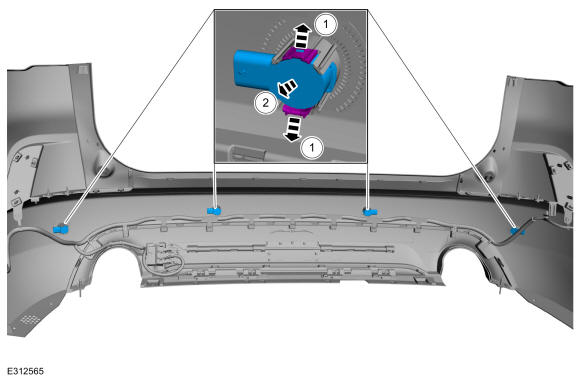

  3. Remove the rear parking aid sensor.

    1. Release the tabs.
    2. Remove the sensor.

GFD652756Courtesy of FORD MOTOR COMPANY
