Image Processing Module B (IPMB): Removal

WARNING: This page is about a different car, the 2023 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary if the IPMB is being replaced.

Using a diagnostic scan tool, begin the PMI process for the IPMB following the on-screen instructions.
Remove the floor console. Refer to: Floor Console .

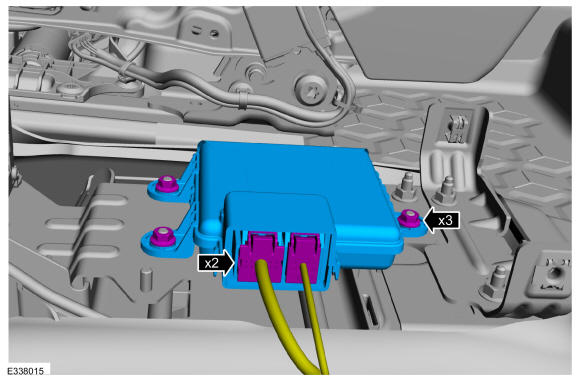

Disconnect the electrical connectors, remove the nuts and the IPMB.
Torque: 29 lb.in (3.3 Nm)

Courtesy of FORD MOTOR COMPANY
