Accessory Drive - 1.5L ECOBOOST (132KW 180PS) - I3 (Y1)
>>
Description And Operation
>>
Accessory Drive - Component Location
Accessory Drive - Component Location

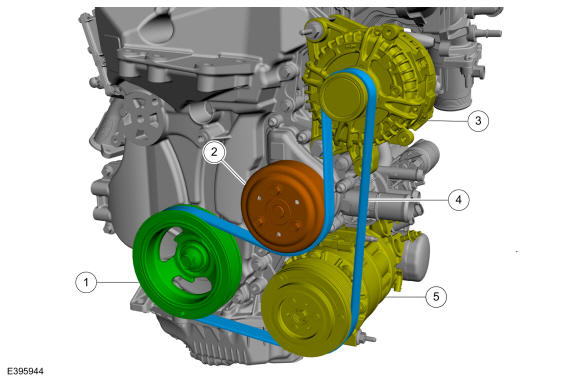

Fig 1: Accessory Drive Belt Routing
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Crankshaft pulley
2
Cooling pump
3
Generator
4
Accessory drive belt
5
A/C compressor
Courtesy of FORD MOTOR COMPANY
