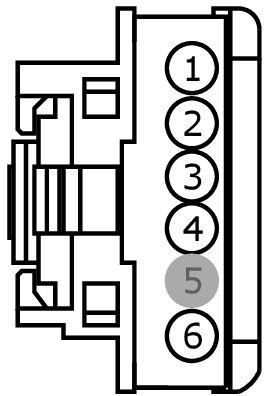

Connector End View C250 - IGNITION SWITCH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C250 | IGNITION SWITCH | 14401 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| GU5T-14474-XB | DU2Z-14474-AA | 0.64 |
| GU5T-14474-YB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CDC35 (BU-WH) | 22 | SWITCH - IGNITION # START | GU5T-14474-XB | ||||
| 1 | CH202 (BU-GN) | 22 | ECU - CLIMATE # FRONT MODE DOOR #1 FEED A | GU5T-14474-XB | ||||
| 2 | CDC34 (WH-OG) | 22 | SWITCH - IGNITION # RUN START | GU5T-14474-XB | ||||
| 2 | RH111 (GY-BU) | 22 | ECU - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | GU5T-14474-XB | ||||
| 3 | LH111 (BN-WH) | 22 | ECU - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | GU5T-14474-XB | ||||
| 3 | CDC30 (BU-GY) | 22 | SWITCH - IGNITION # KEY IN | GU5T-14474-XB | ||||
| 4 | SBP21 (GY-RD) | 22 | FUSE - 21 OR CIRCUIT BREAKER | GU5T-14474-XB | ||||
| 4 | VH436 (YE-VT) | 26 | ECU - CLIMATE # FRONT MODE DOOR #1 FEEDBACK | GU5T-14474-YB | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CDC33 (VT-GN) | 22 | SWITCH - IGNITION # RUN ACCESSORY | GU5T-14474-XB | ||||
| 6 | CH203 (GN-BN) | 22 | ECU - CLIMATE # FRONT MODE DOOR #1 FEED B | GU5T-14474-XB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1471
Service Part Number:
GU2Z-14S411-PA
Gauge:
20
Pin material:
Tin
Cavities:
6
Vehicle Uses:
- Sensor - EATC In Car Temperature
- Switch - Seat Lumbar
- Transceiver - Passive Anti-Theft (PATS)
