Glove Compartment: Removal

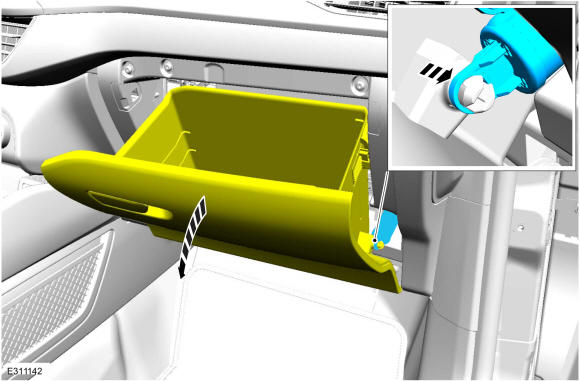

Open the glove compartment and remove the check strap.

Courtesy of FORD MOTOR COMPANY

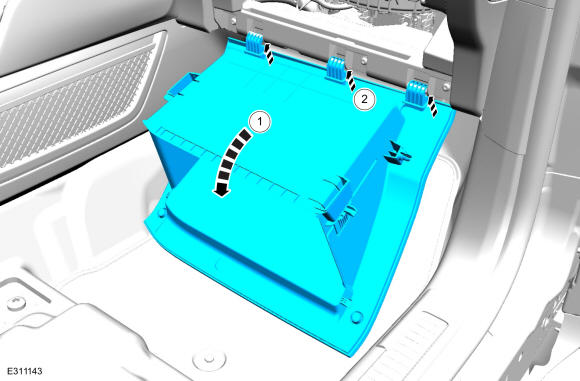

1. Fully lower the glove compartment.
2. Lift glove compartment off hinge piviot.
Courtesy of FORD MOTOR COMPANY

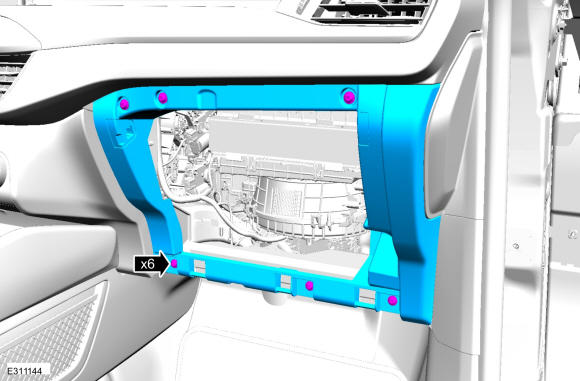

Remove the bolts and the glove compartment close out.
Torque: 22 lb.in (2.5 Nm)

GFD753964

Courtesy of FORD MOTOR COMPANY
