Auxiliary Power Point: Removal

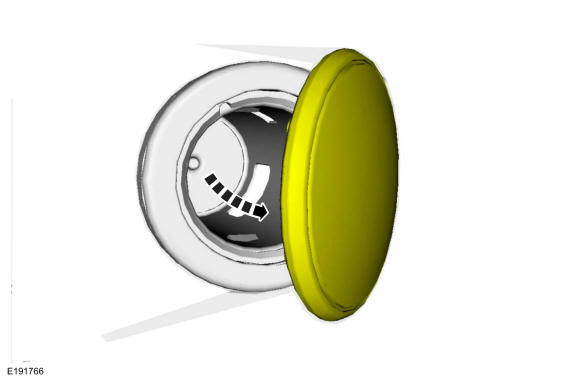

  1. Open the power point cover.
    GFD753954Courtesy of FORD MOTOR COMPANY

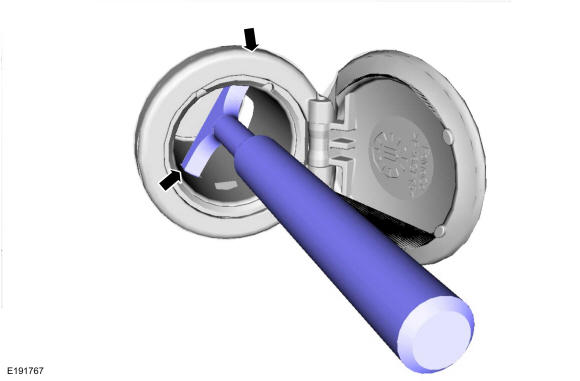

  2. Position the power point extractor so that it engages in the adjacent slots in the power point socket.Remove Suggested Tool: 501-194 Remover, Power Point.
    GFD753955Courtesy of FORD MOTOR COMPANY

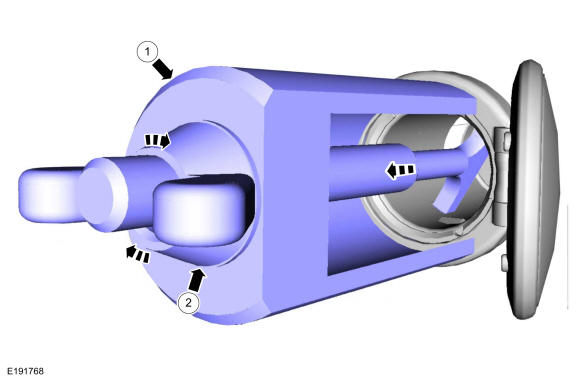

    1. Install the receiver cup.
    2. Install and tighten the wing nut.Remove Suggested Tool: 501-194 Remover, Power Point.
    GFD753956Courtesy of FORD MOTOR COMPANY

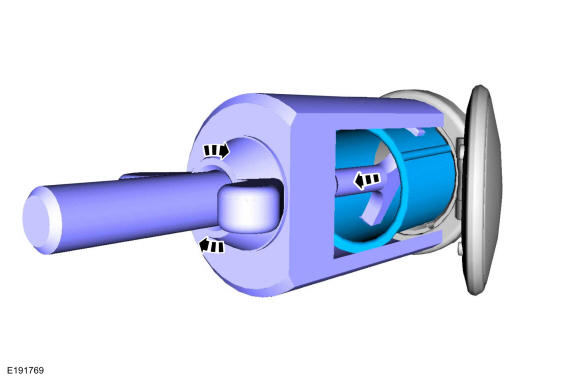

  4. Tighten the wing nut to pull the power point socket out of the retainer.Remove Suggested Tool: 501-194 Remover, Power Point.
    GFD753957Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connector.
GFD753958Courtesy of FORD MOTOR COMPANY
