Section 553 (OEM Wiring Diagrams)
>>
Electronic Engine Controls - 3.0L Diesel
Electronic Engine Controls - 3.0L Diesel
WARNING:
This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

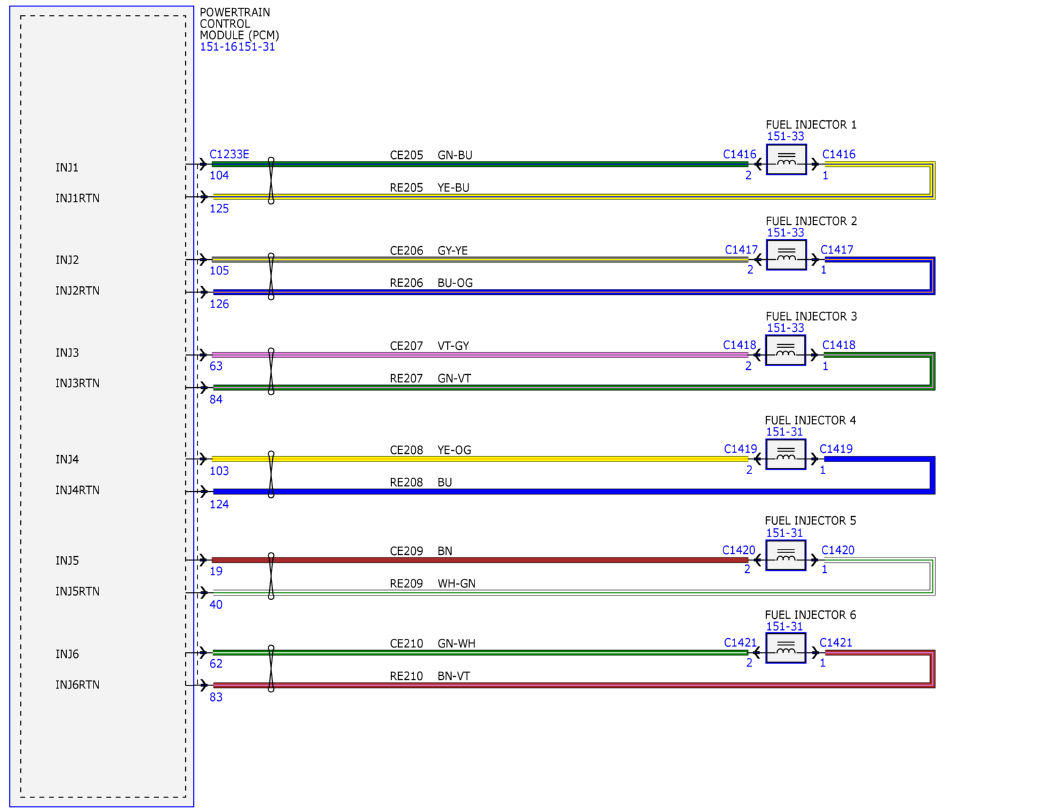

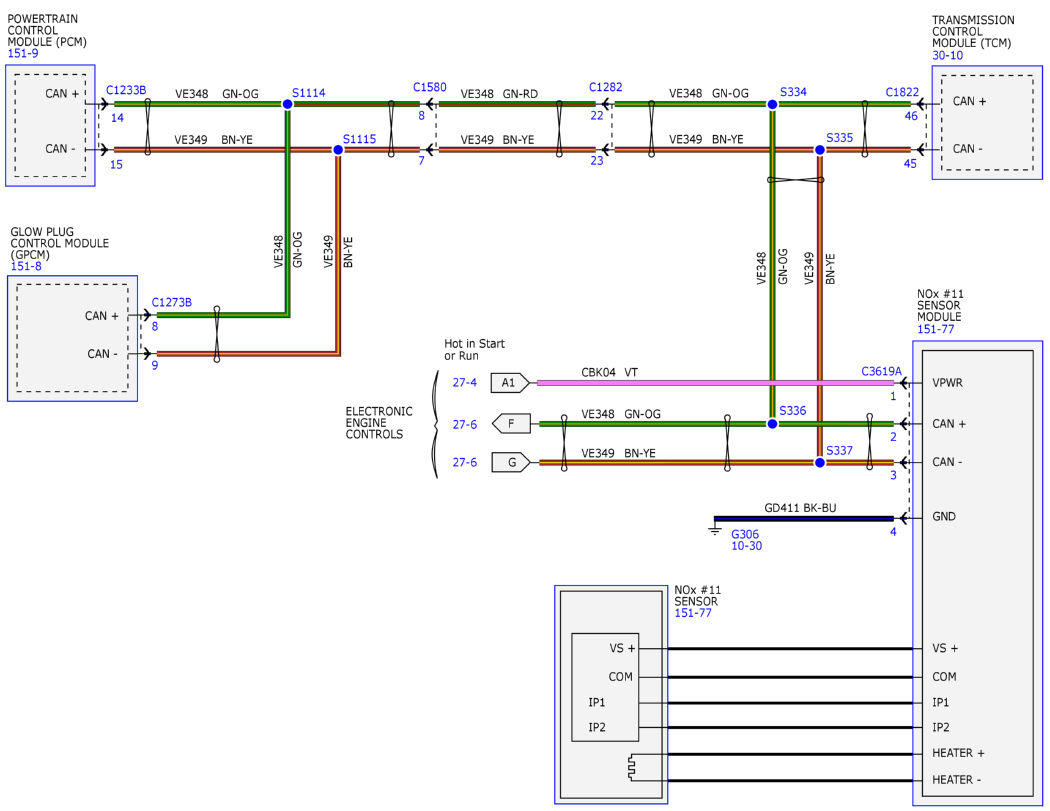

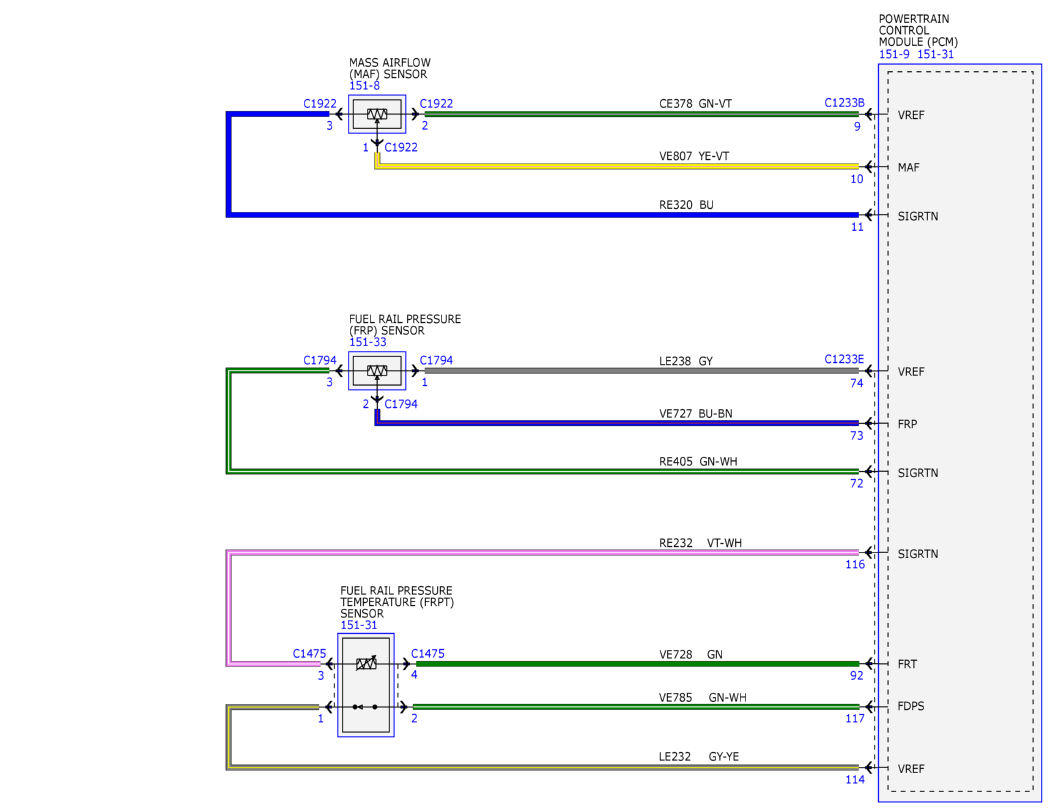

Fig 1: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (1 Of 23)
Courtesy of FORD MOTOR COMPANY

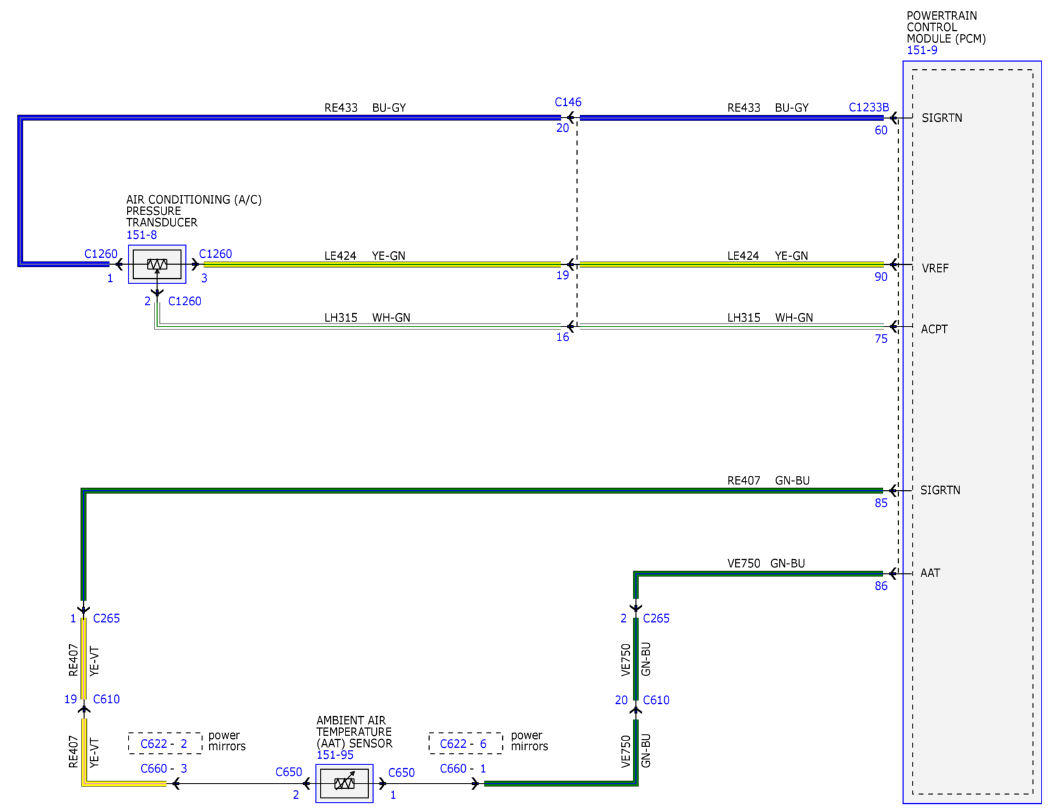

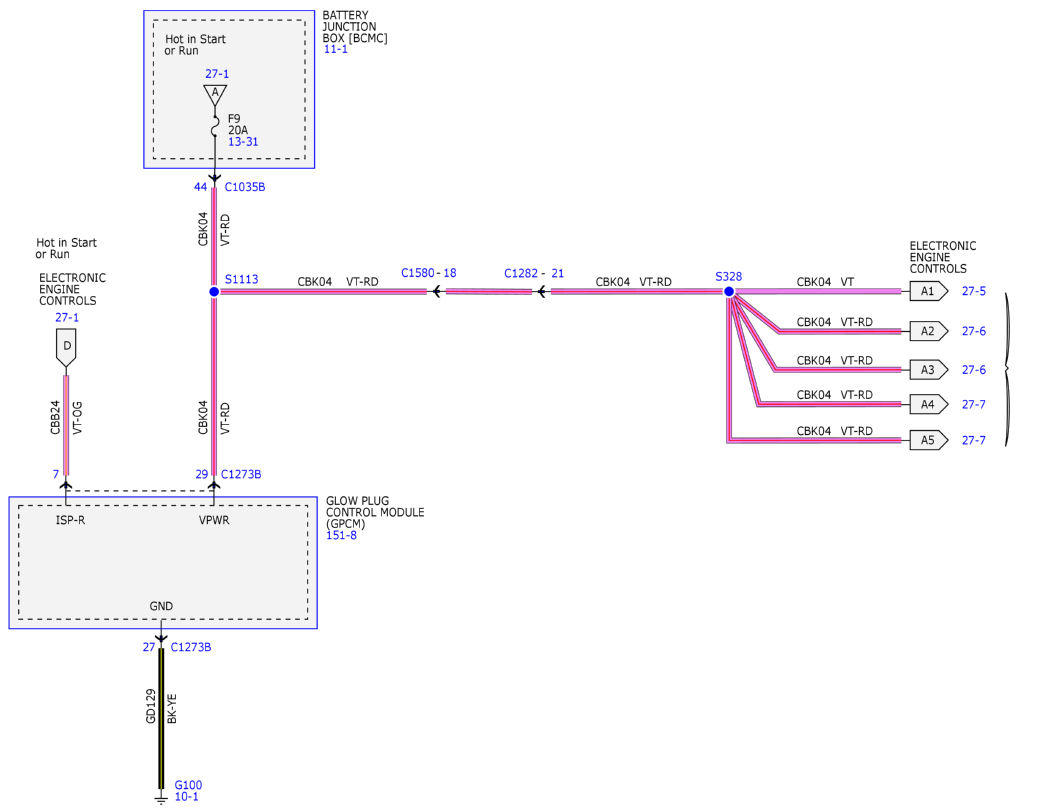

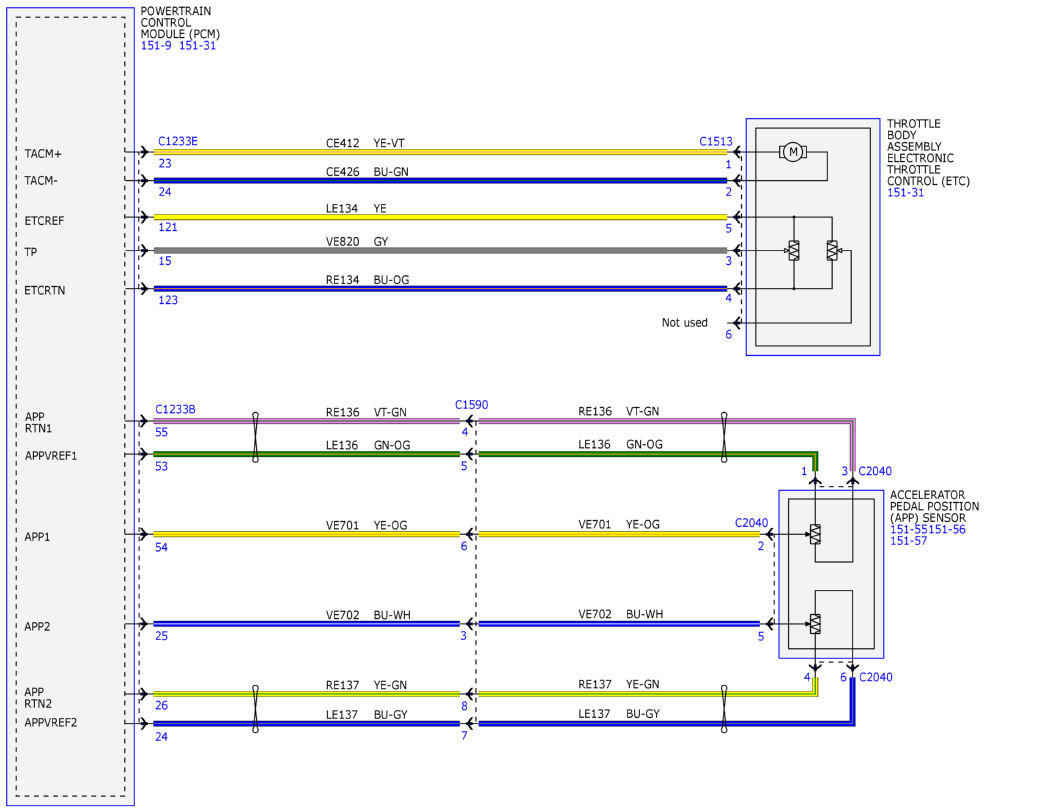

Fig 2: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (2 Of 23)
Courtesy of FORD MOTOR COMPANY

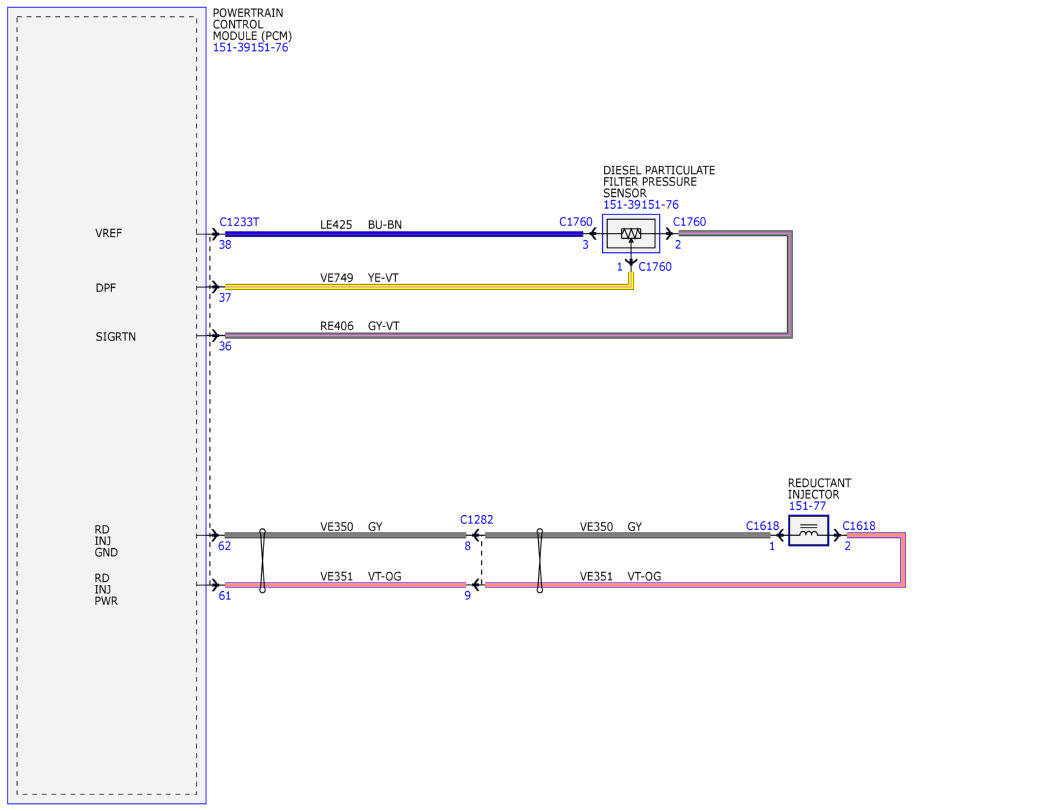

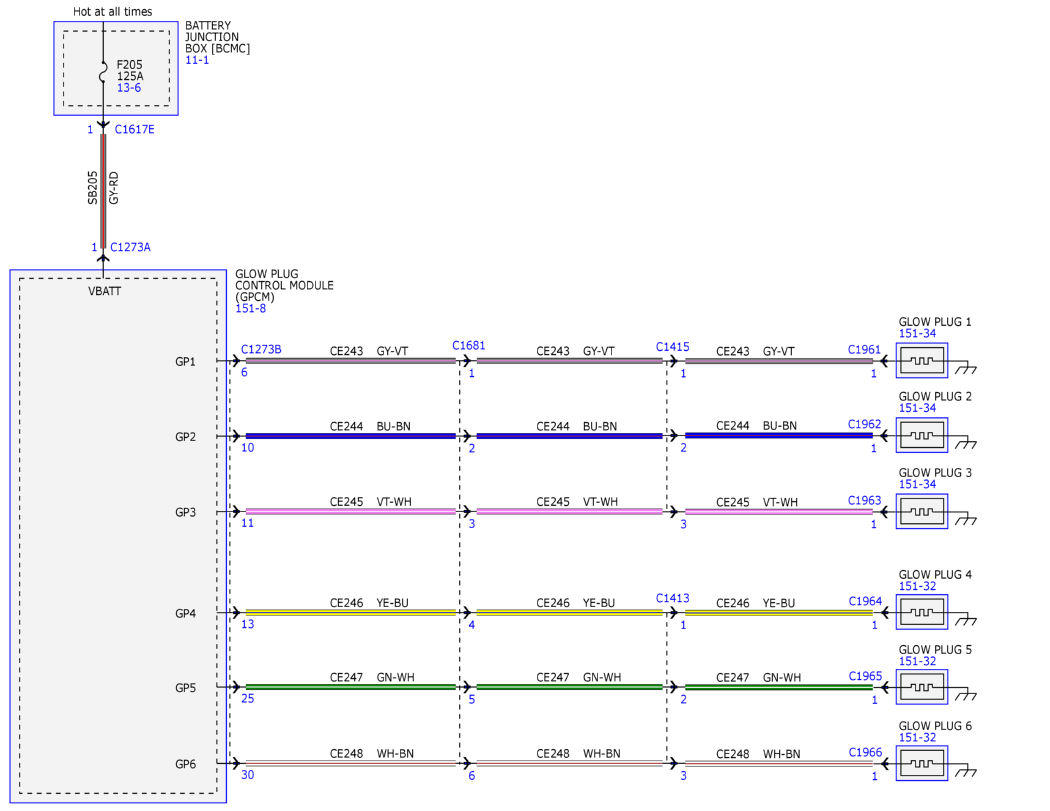

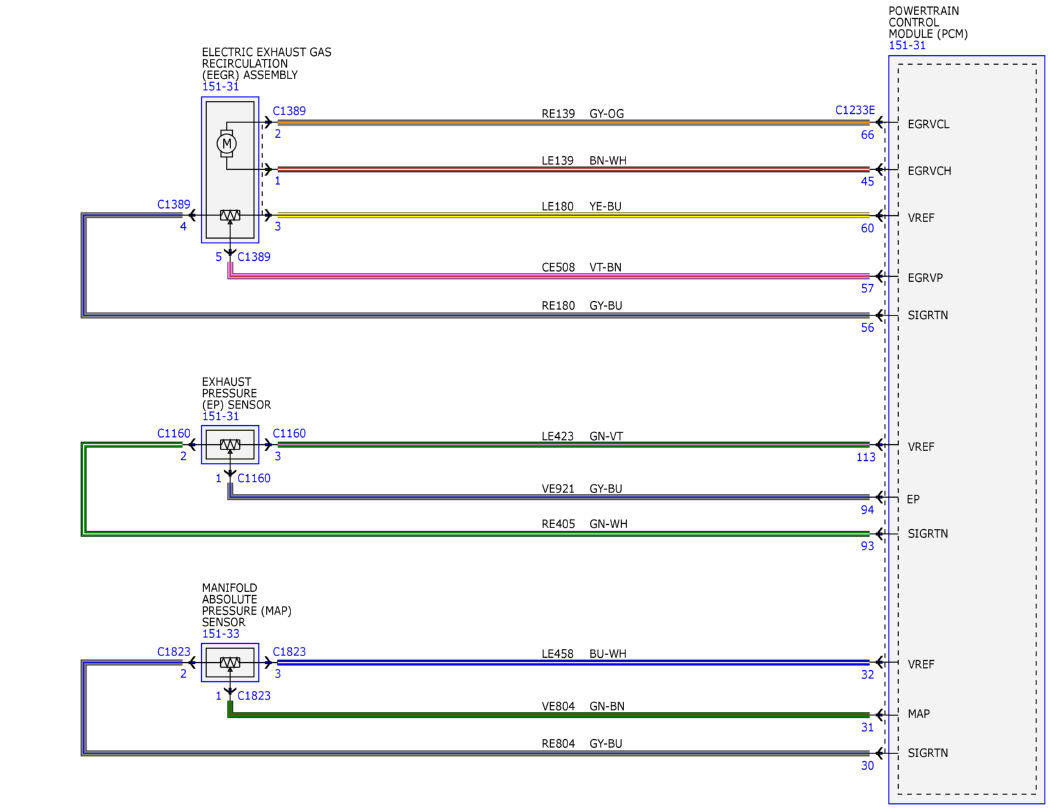

Fig 3: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (3 Of 23)
Courtesy of FORD MOTOR COMPANY

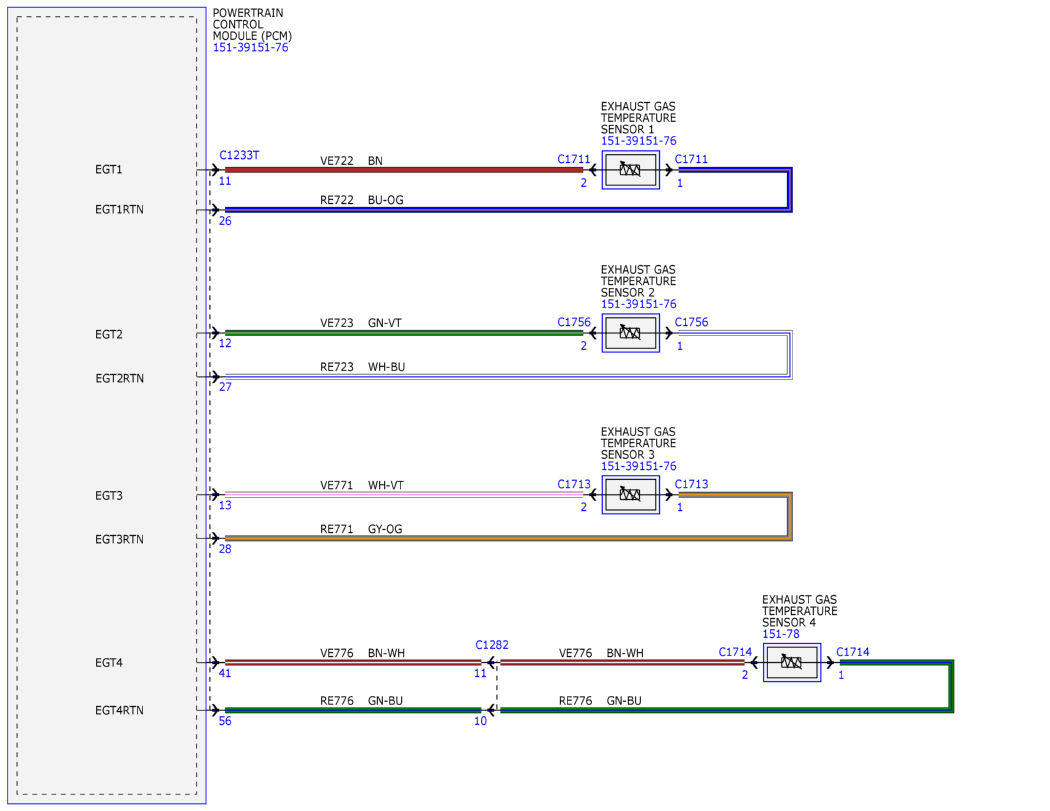

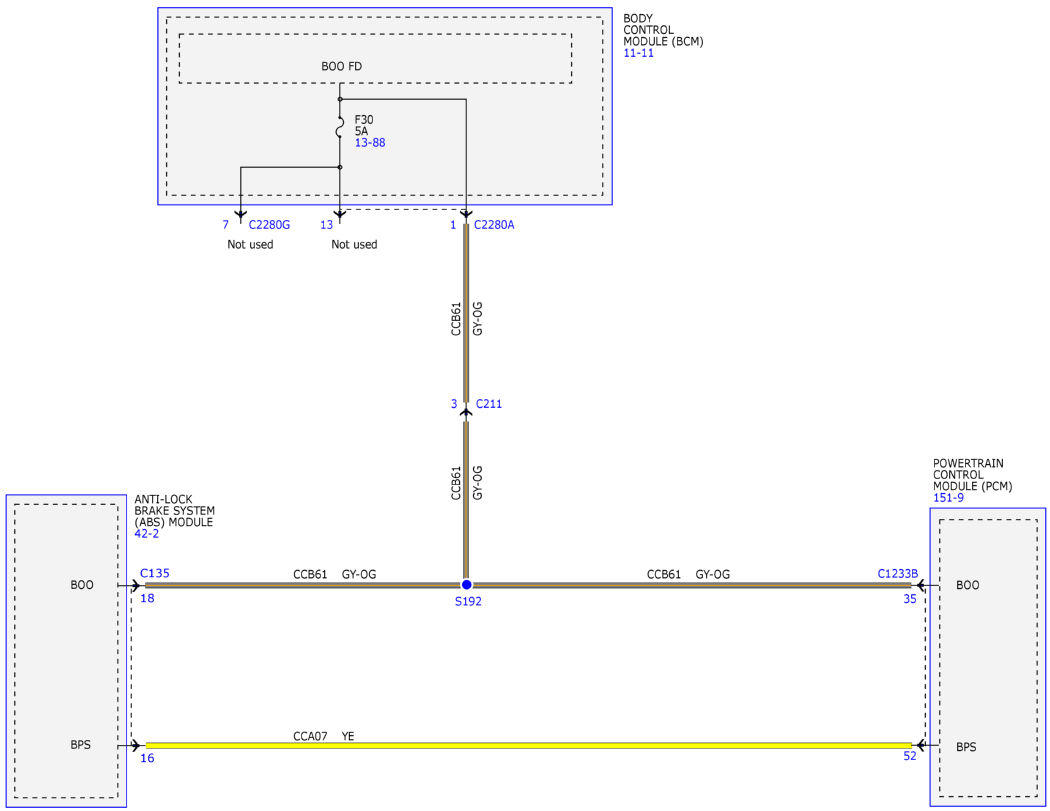

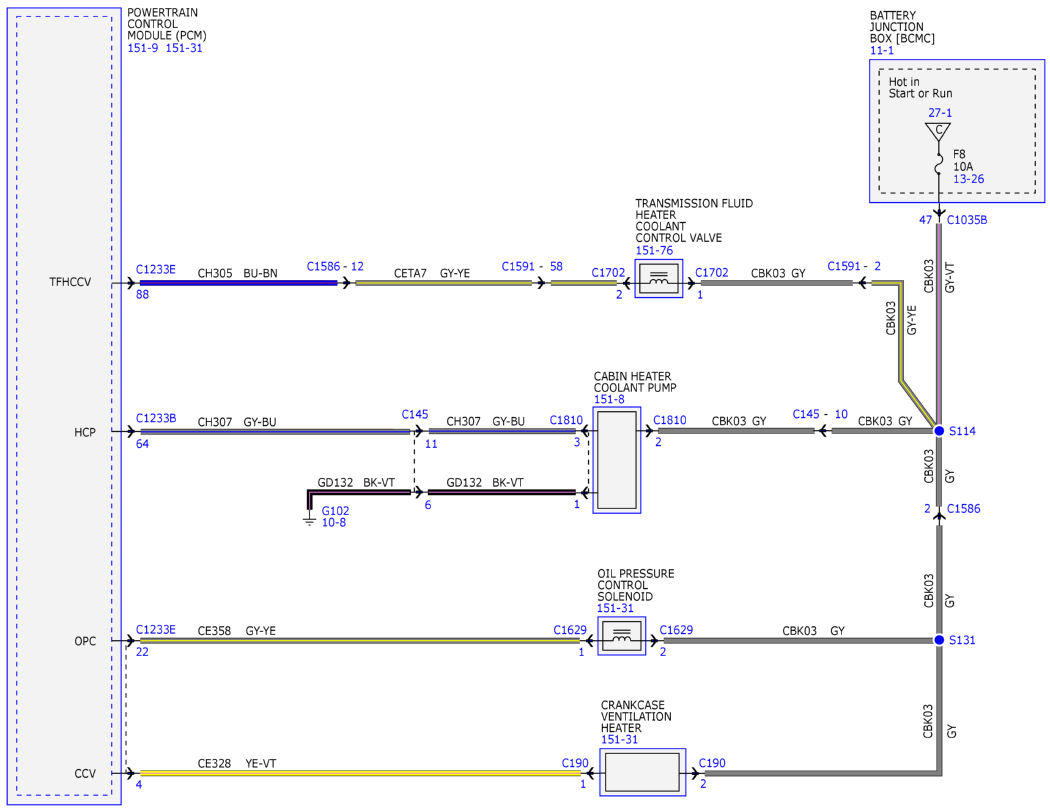

Fig 4: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (4 Of 23)
Courtesy of FORD MOTOR COMPANY

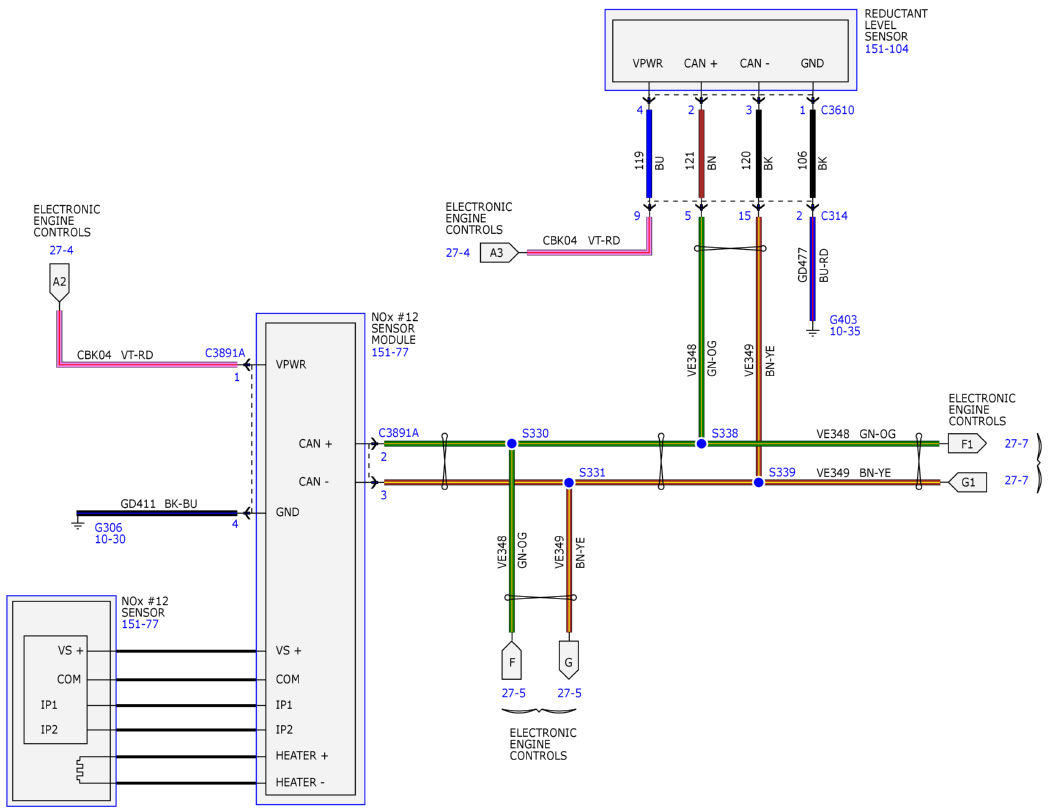

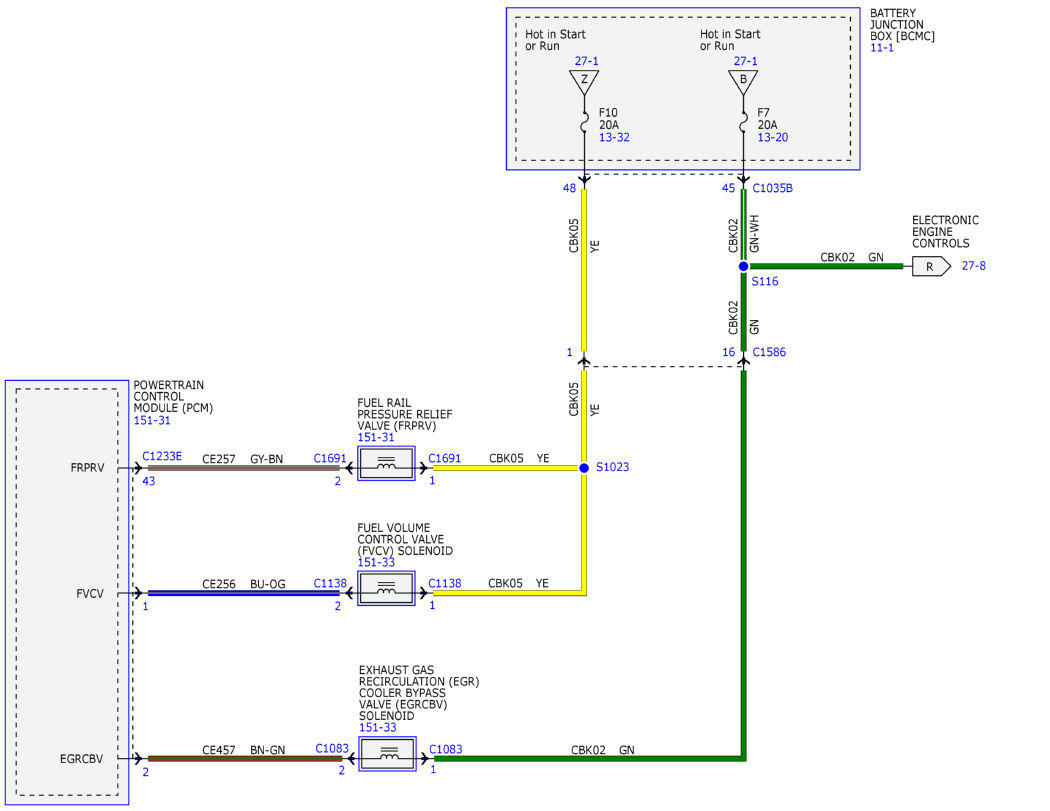

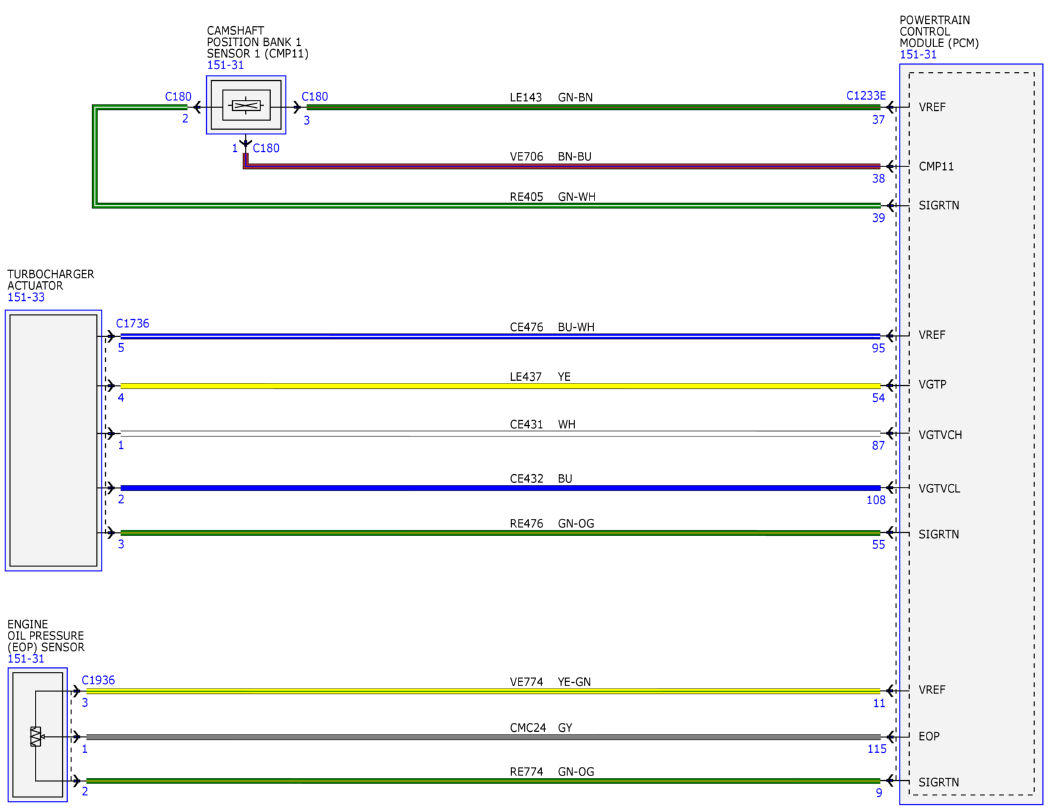

Fig 5: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (5 Of 23)
Courtesy of FORD MOTOR COMPANY

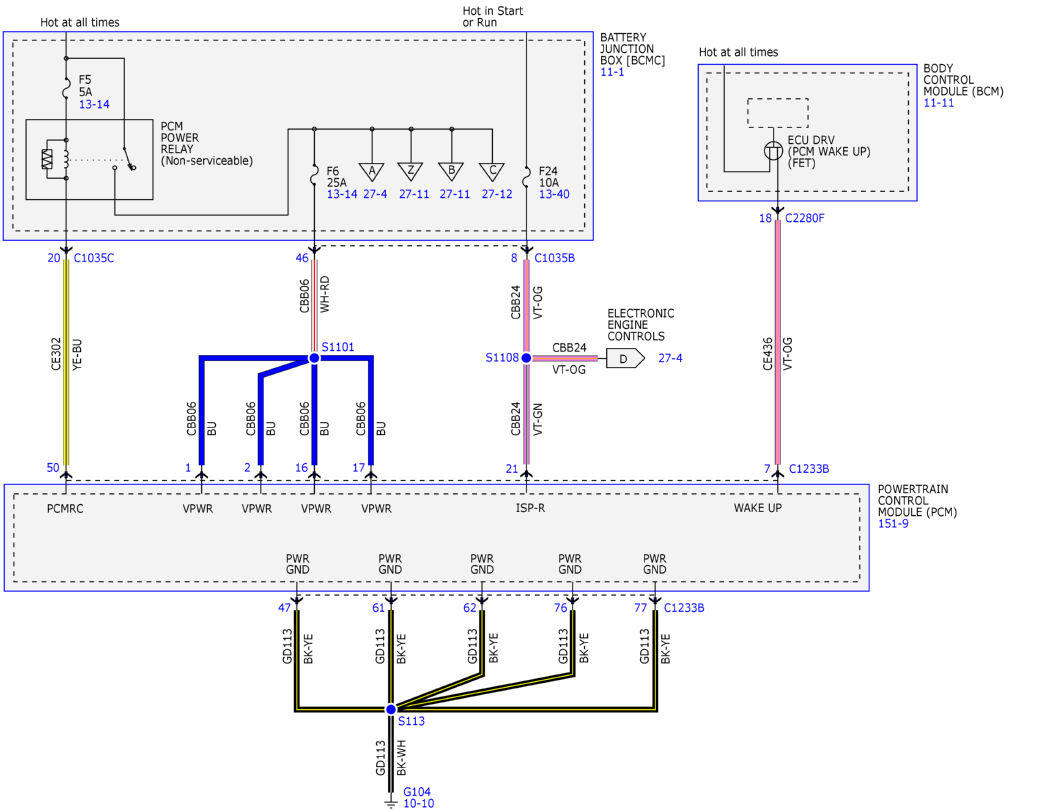

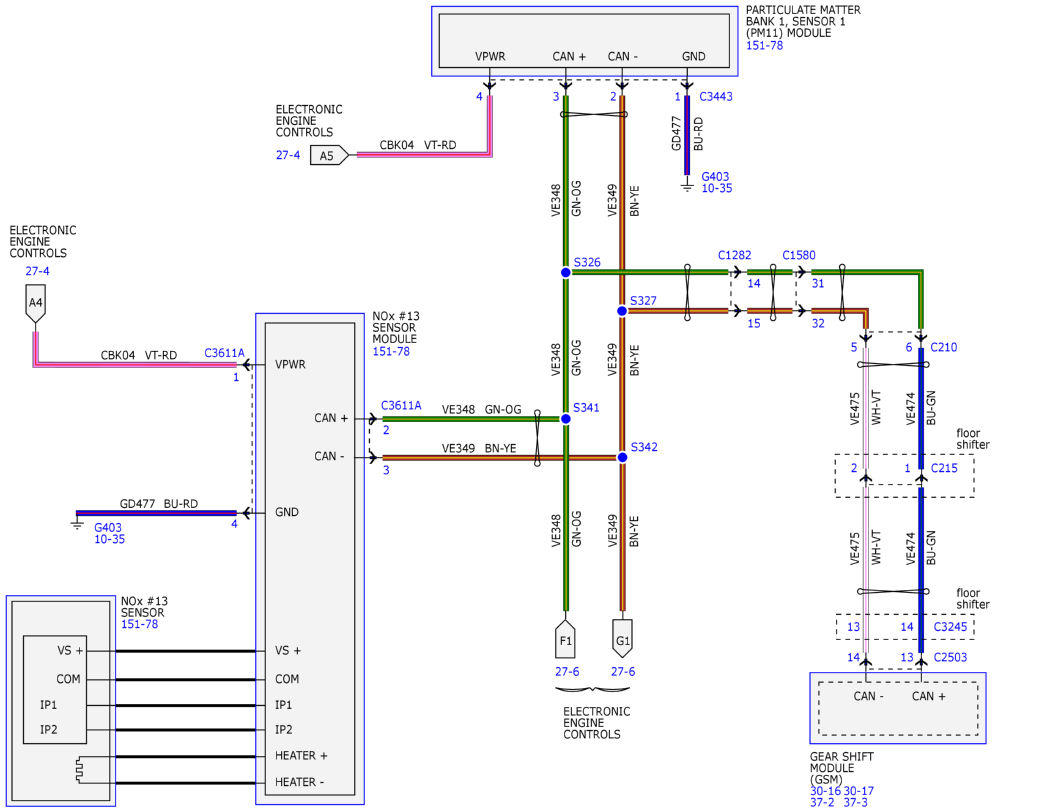

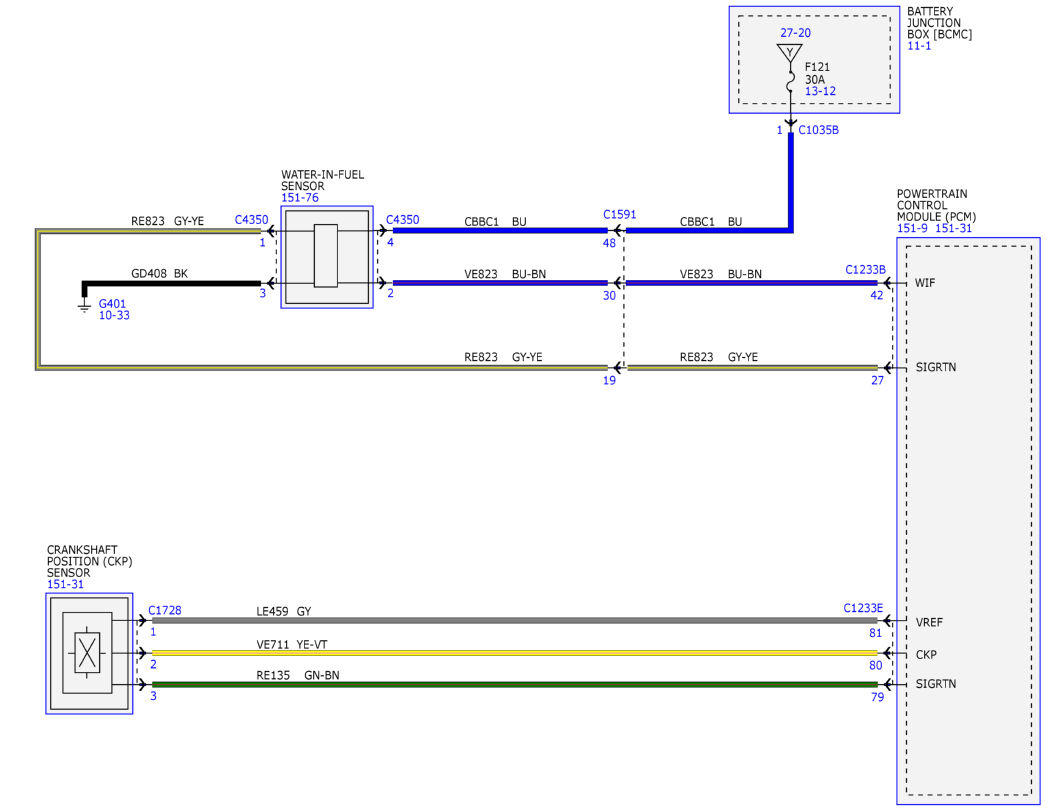

Fig 6: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (6 Of 23)
Courtesy of FORD MOTOR COMPANY

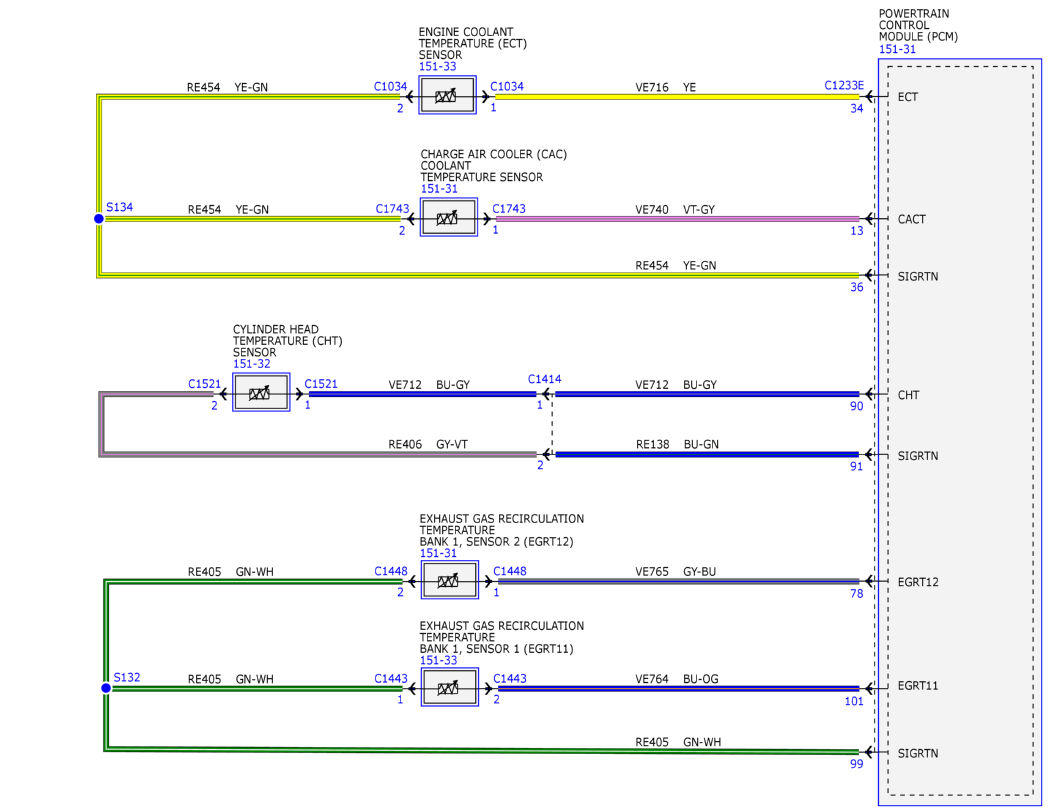

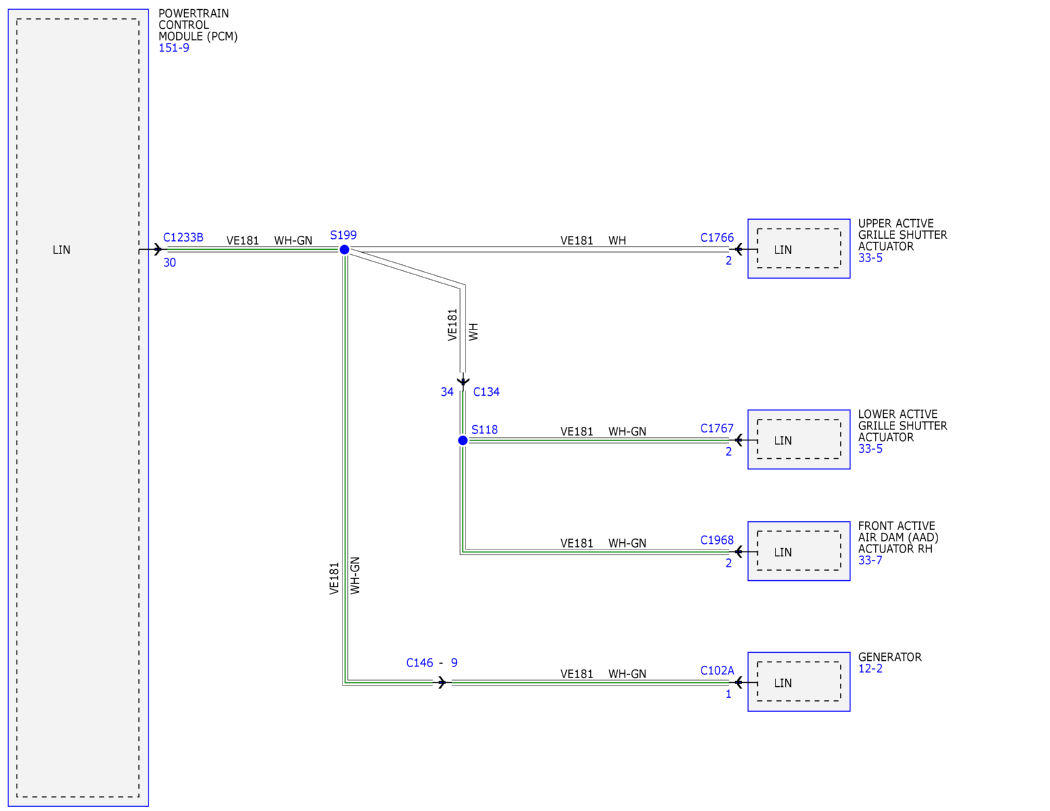

Fig 7: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (7 Of 23)
Courtesy of FORD MOTOR COMPANY

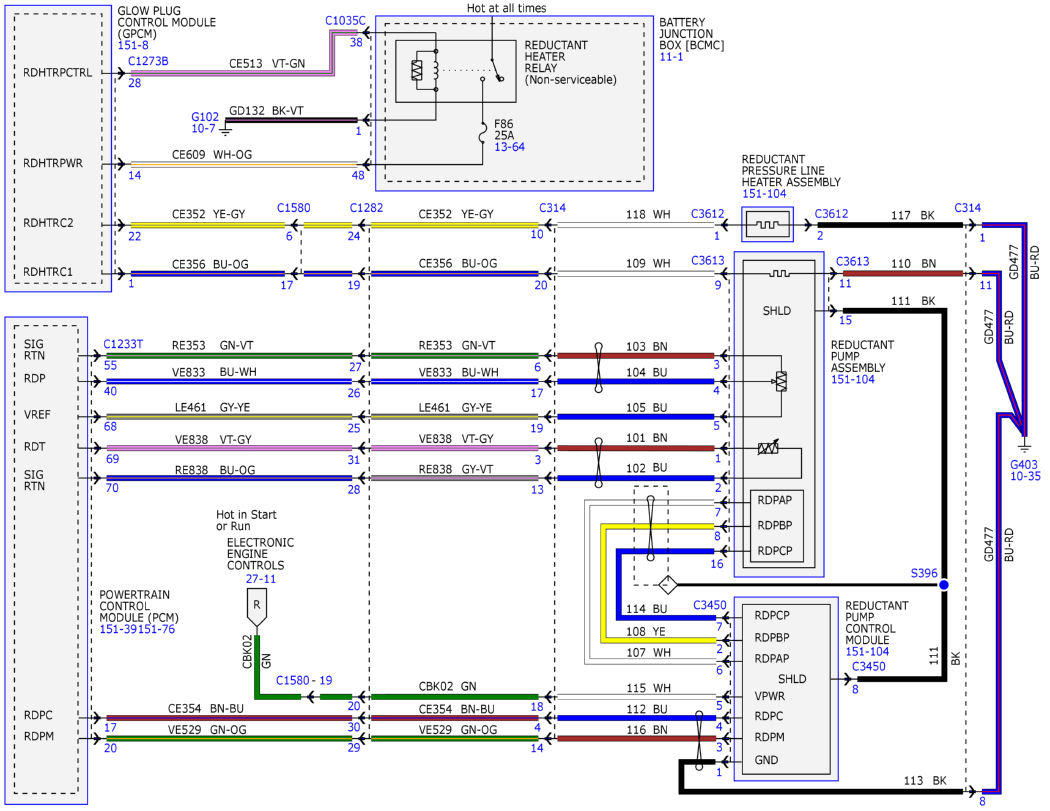

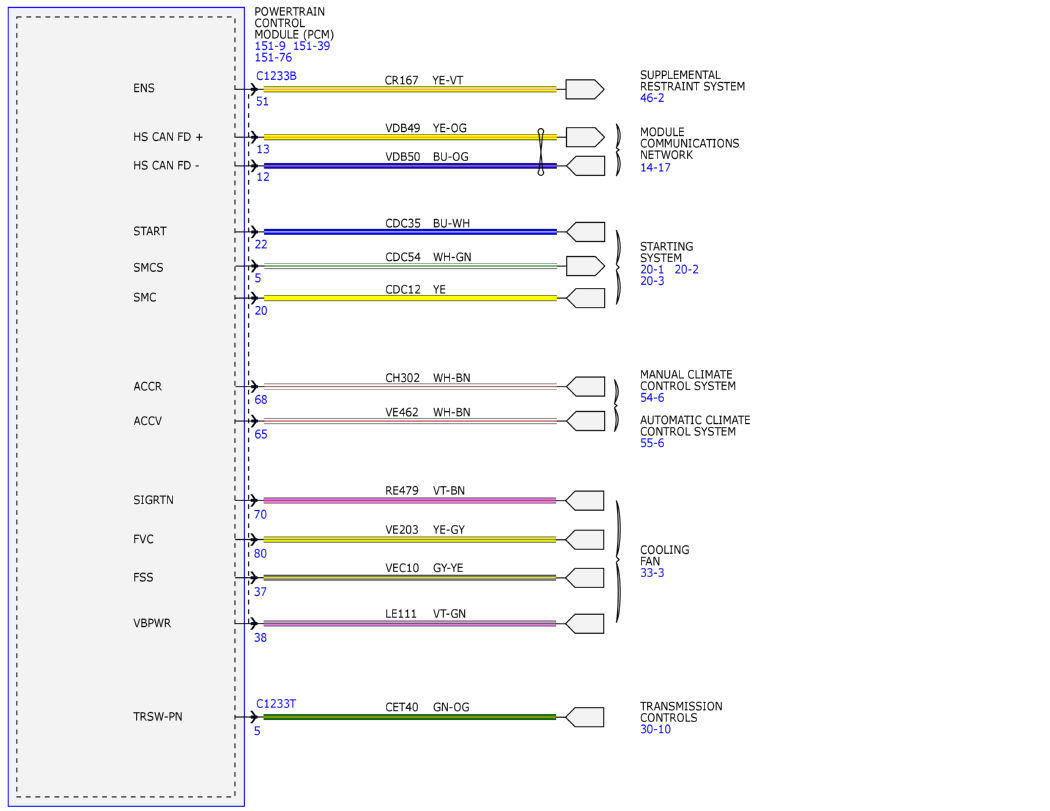

Fig 8: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (8 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (9 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (10 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (11 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 12: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (12 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 13: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (13 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 14: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (14 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 15: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (15 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 16: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (16 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 17: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (17 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 18: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (18 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 19: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (19 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 20: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (20 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 21: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (21 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 22: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (22 Of 23)
Courtesy of FORD MOTOR COMPANY
Fig 23: Electronic Engine Controls Wiring Diagram - 3.0L Diesel (23 Of 23)
Courtesy of FORD MOTOR COMPANY
