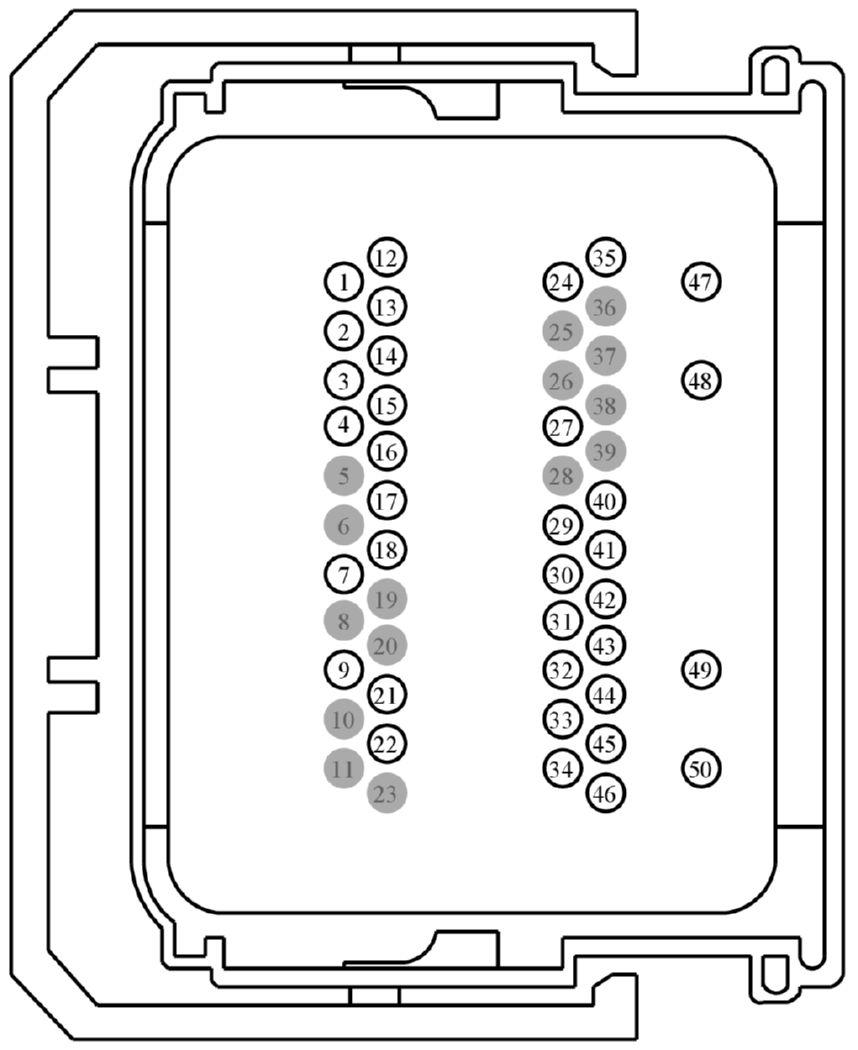

Connector End View (C1822) - TRANSMISSION CONTROL MODULE (TCM)

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1822	TRANSMISSION CONTROL MODULE (TCM)	BK	14406	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7S4T-14474-AB	DU2Z-14474-BA	0.64
7U5T-14474-TA	DU2Z-14474-DA	1.50
7S4T-14474-BB	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC)	7S4T-14474-AB
2	CET51 (WH)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC)	7S4T-14474-AB
3	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB)	7S4T-14474-AB
4	CET09 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE)	7S4T-14474-AB
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VETB1 (BN-WH)	20	SENSOR - INTERMEDIATE SHAFT SPEED B +	7S4T-14474-AB
8	*	*	Not Used	N/A
9	CET85 (GY-OG)	20	CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP CONTROL	7S4T-14474-AB
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	RE472 (BU)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SST-SIGRTN)	7S4T-14474-AB
13	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD)	7S4T-14474-AB
14	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA)	7S4T-14474-AB
15	CET50 (WH-OG)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC)	7S4T-14474-AB
16	CET10 (BU-GY)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID F (SSF)	7S4T-14474-AB
17	LE461 (GY-YE)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (VREF2)	7S4T-14474-AB
18	LE425 (BU-BN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (VREF)	7S4T-14474-AB
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	CET44 (BU-BN)	20	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 3 (SS3)	7S4T-14474-AB
22	CET40 (GN-OG)	20	SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN)	7S4T-14474-AB
23	*	*	Not Used	N/A
24	CET49 (BN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2)	7S4T-14474-AB
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +	7S4T-14474-AB
28	*	*	Not Used	N/A
29	VET86 (YE-RD)	20	MONITOR - AUTOMATIC TRANSMISSION FLUID PUMP	7S4T-14474-AB
30	CET43 (GY)	20	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	7S4T-14474-AB
31	CBB24 (VT-GN)	20	FUSE - 24 OR CIRCUIT BREAKER	7S4T-14474-AB
32	VETB0 (YE-VT)	20	SENSOR - INTERMEDIATE SHAFT SPEED A +	7S4T-14474-AB
33	CET42 (GN-VT)	20	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	7S4T-14474-AB
34	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	7S4T-14474-AB
35	CET91 (YE-OG)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE	7S4T-14474-AB
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	VET84 (BN-GN)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1)	7S4T-14474-AB
41	VET81 (YE-GY)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2)	7S4T-14474-AB
42	VET26 (BN)	20	SENSOR - OUTPUT SHAFT SPEED (OSS)	7S4T-14474-AB
43	VDB50 (BU-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD LOW	7S4T-14474-BB
44	VDB49 (YE-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED FD HIGH	7S4T-14474-BB
45	VE349 (BN-YE)	22	CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 LOW	7S4T-14474-BB
46	VE348 (GN-OG)	22	CTRL MOD. - POWERTRAIN # NOX CAN BUS #2 HIGH	7S4T-14474-BB
47	CET25 (BU-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	7U5T-14474-TA
48	SBB65 (RD)	16	FUSE - 65 OR CIRCUIT BREAKER	7U5T-14474-TA
49	RET24 (BN-BU)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	7U5T-14474-TA
50	GD411 (BK-BU)	18	GROUND - FRAME MIDDLE RIGHT #2	7U5T-14474-TA
