Parking Brake Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

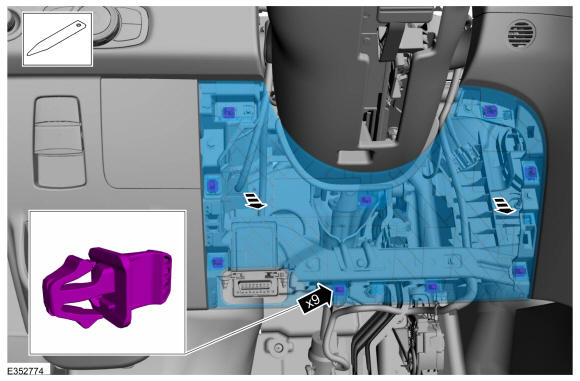

Remove the steering column opening cover detaching the 9 clips.

Courtesy of FORD MOTOR COMPANY

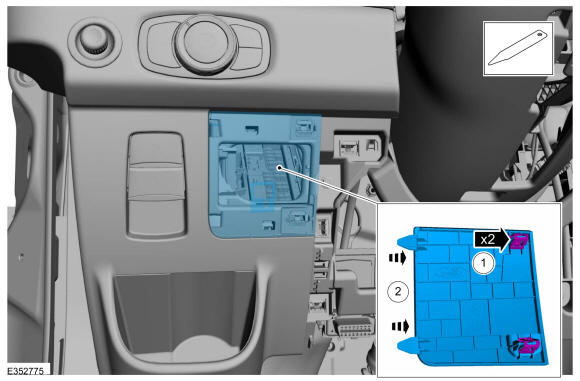

Detach the 2 clips, slide and remove the fuse junction box cover.

Courtesy of FORD MOTOR COMPANY

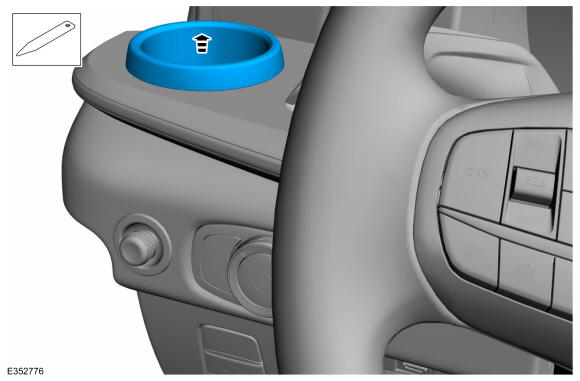

Remove the cup holder assembly.

Courtesy of FORD MOTOR COMPANY

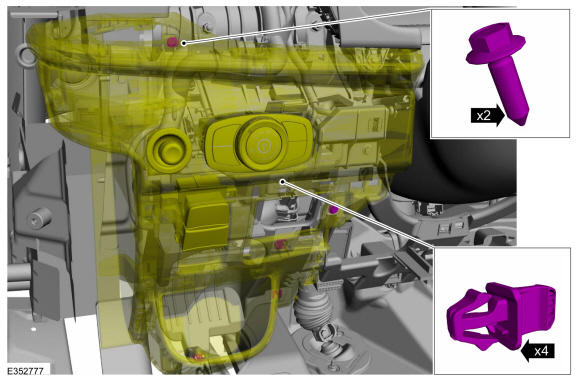

Remove the 2 screws, detach the retainers and remove the cup holder panel assembly.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

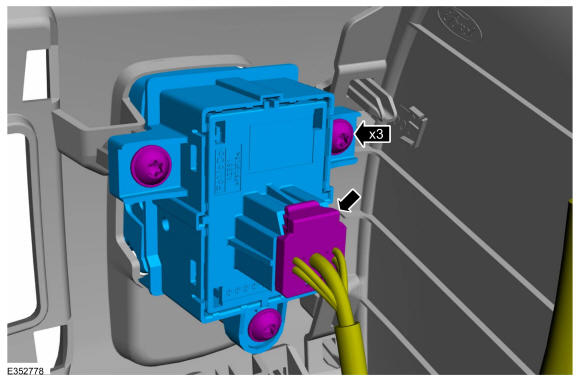

- Disconnect the EPB switch electrical connector.
- Remove the screws and the EPB switch.
  Torque

  : 9 lb.in (1 Nm)

Courtesy of FORD MOTOR COMPANY
