Vehicle Dynamic Systems

WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.

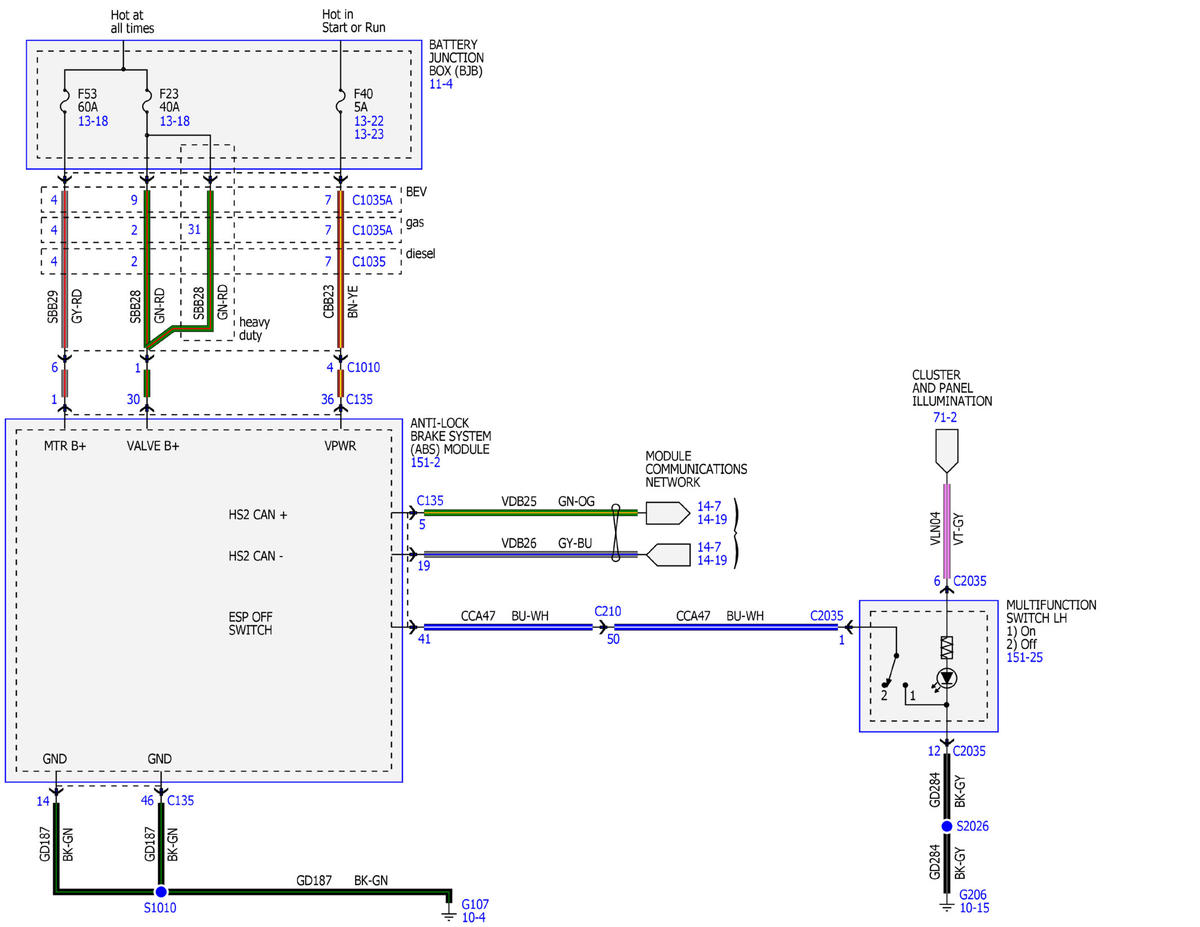

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 Of 8)
GFDWR157741Courtesy of FORD MOTOR COMPANY

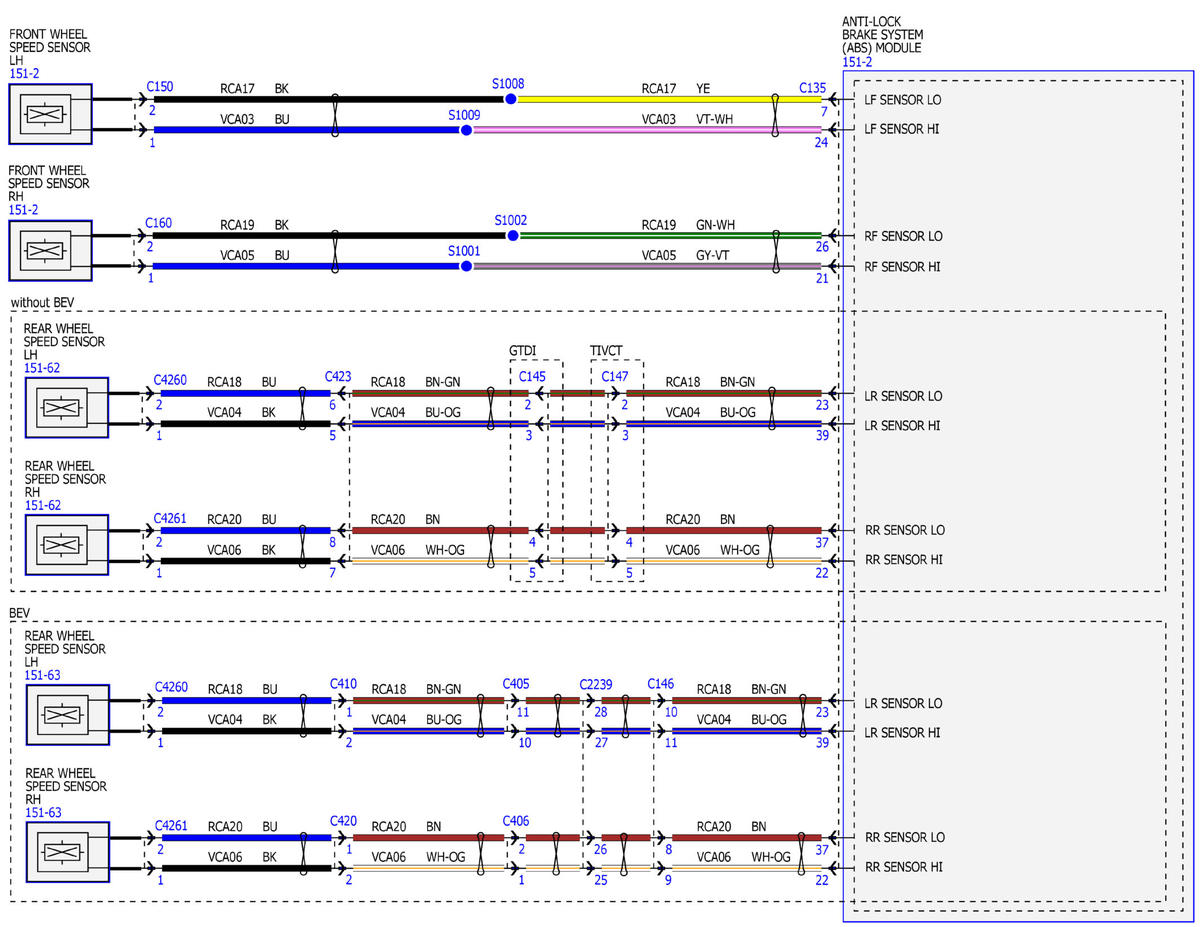

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 Of 8)
GFDWR157742Courtesy of FORD MOTOR COMPANY

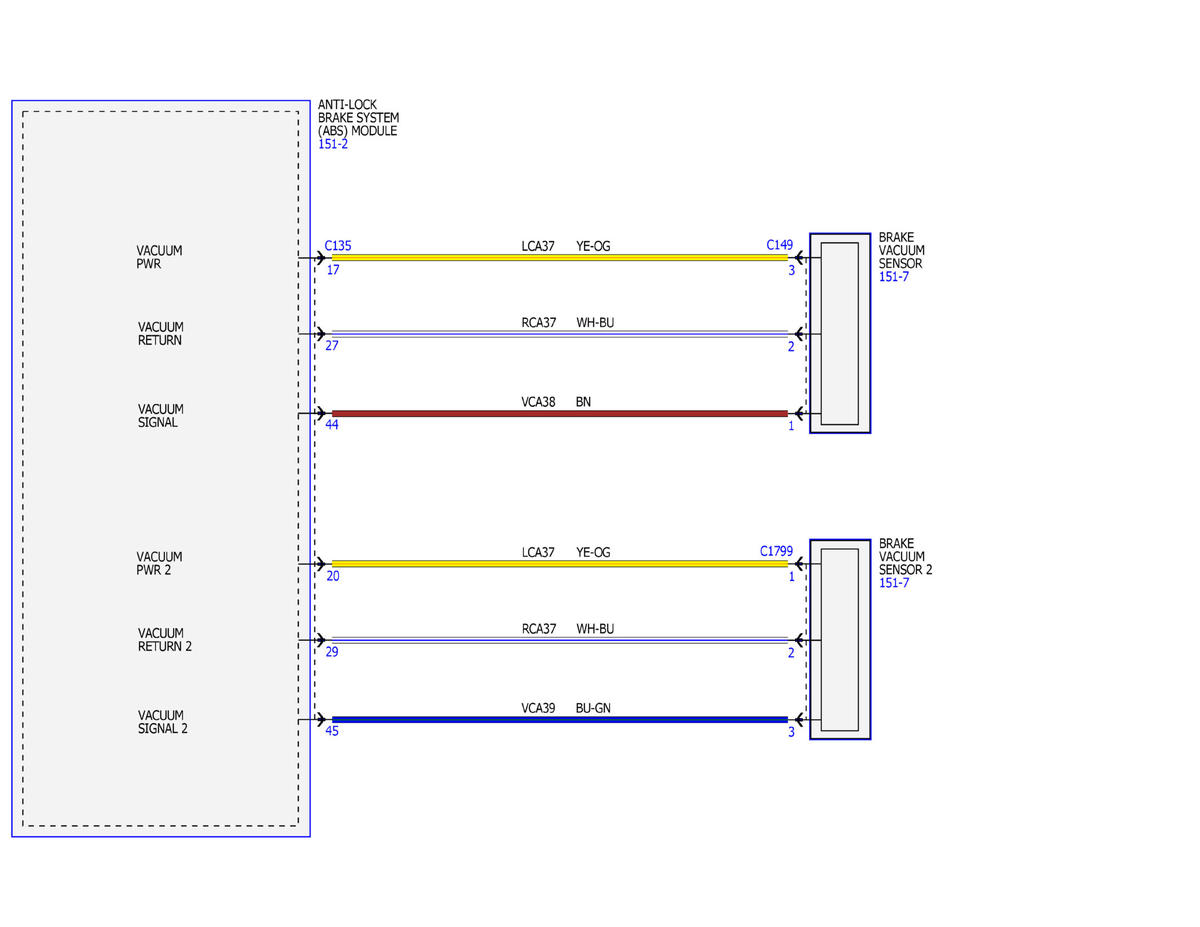

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 Of 8)
GFDWR157743Courtesy of FORD MOTOR COMPANY

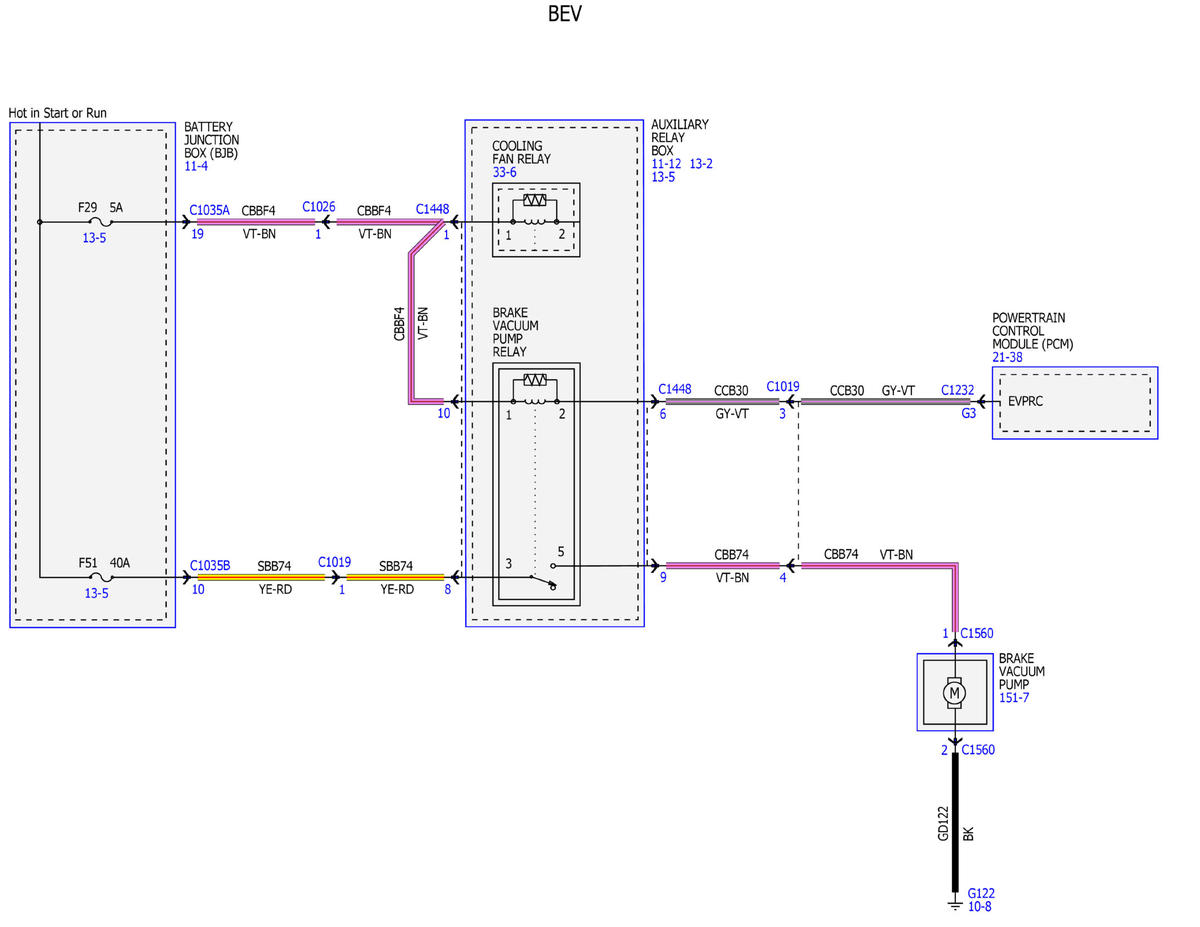

Fig 4: Vehicle Dynamic Systems Wiring Diagram (4 Of 8)
GFDWR157744Courtesy of FORD MOTOR COMPANY

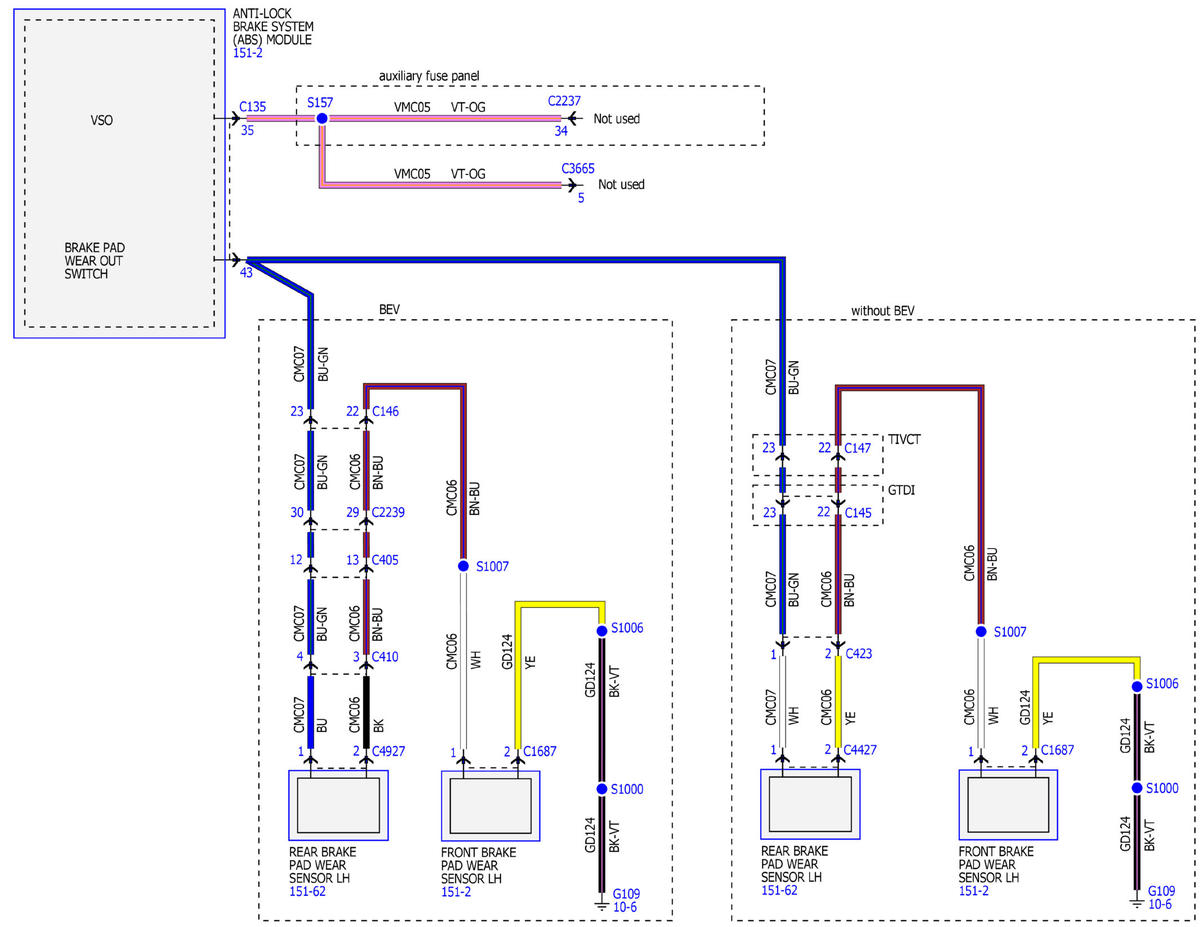

Fig 5: Vehicle Dynamic Systems Wiring Diagram (5 Of 8)
GFDWR157745Courtesy of FORD MOTOR COMPANY

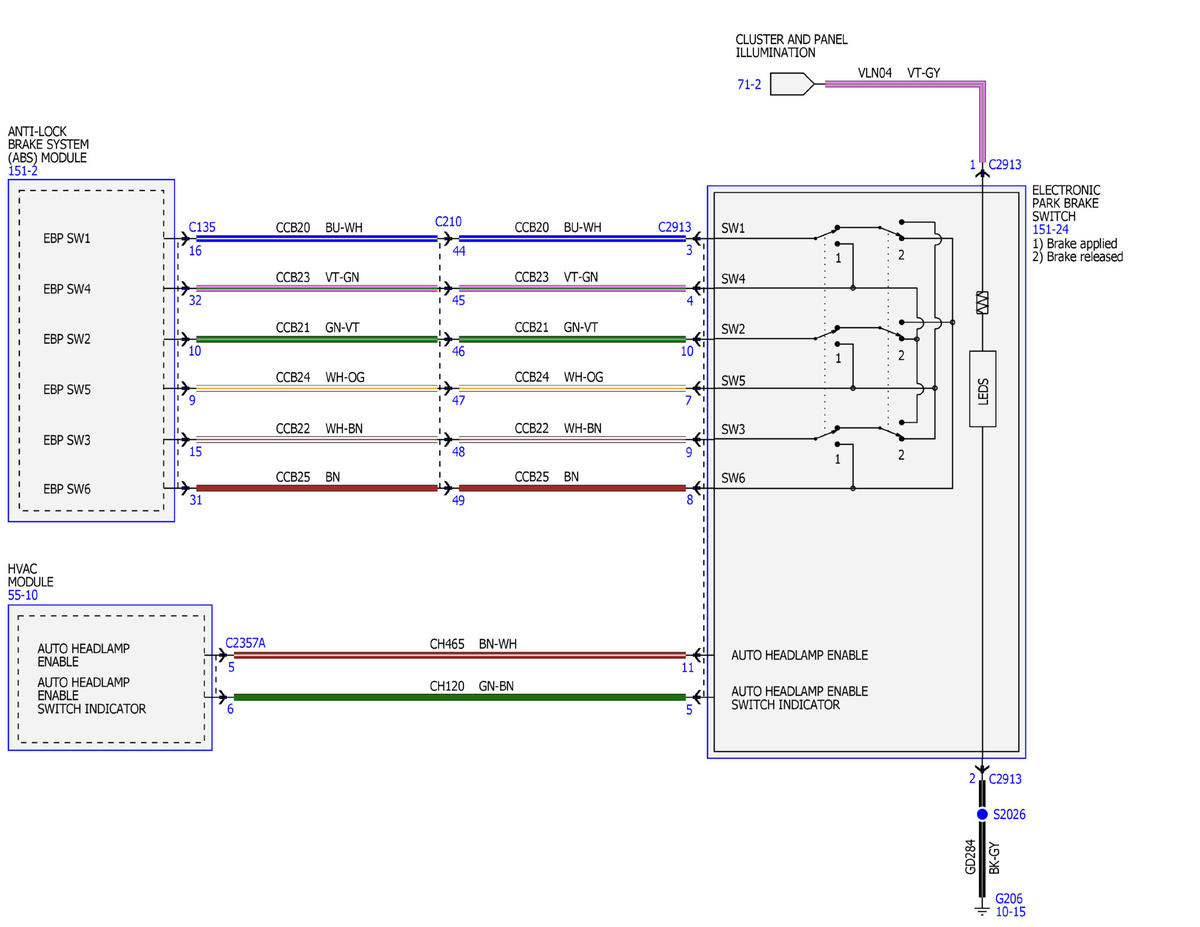

Fig 6: Vehicle Dynamic Systems Wiring Diagram (6 Of 8)
GFDWR157746Courtesy of FORD MOTOR COMPANY

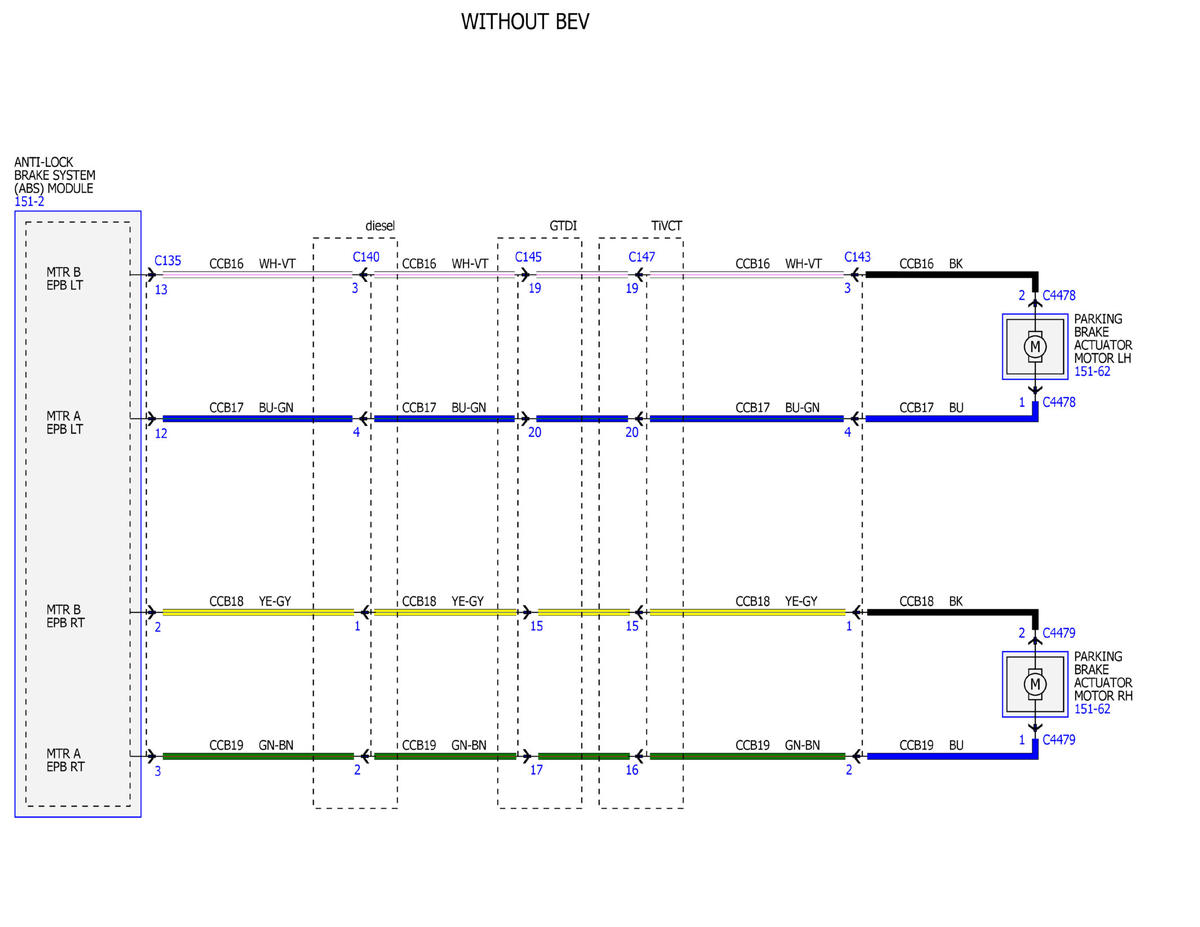

Fig 7: Vehicle Dynamic Systems Wiring Diagram (7 Of 8)
GFDWR157747Courtesy of FORD MOTOR COMPANY

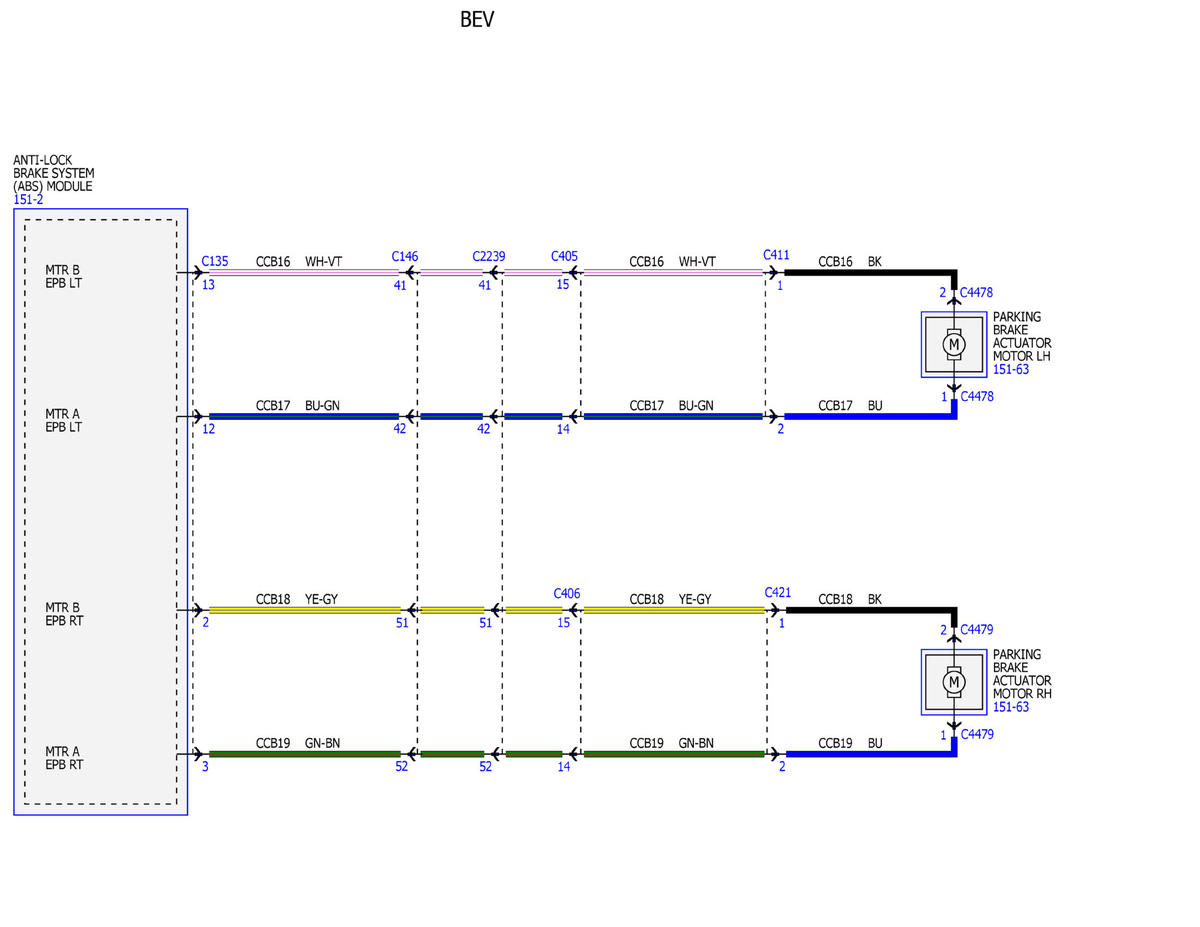

Fig 8: Vehicle Dynamic Systems Wiring Diagram (8 Of 8)
GFDWR157748Courtesy of FORD MOTOR COMPANY
