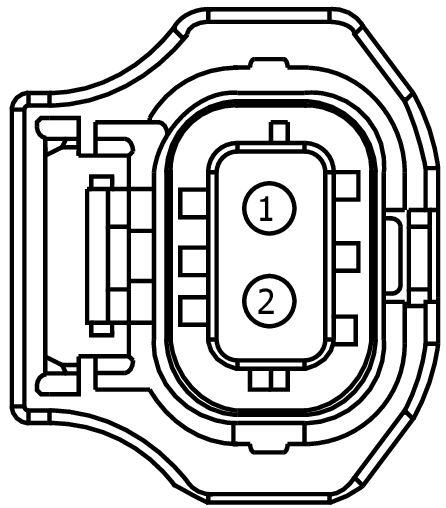

Connector End View C4479 - PARKING BRAKE ACTUATOR MOTOR RH
WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C4479 | PARKING BRAKE ACTUATOR MOTOR RH | 14A107 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-TB | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CCB19 (GN-BN) | 12 | CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-) | EU5T-14474-TB | ||||
| 2 | CCB18 (YE-GY) | 12 | CTRL MOD. - ELEC.PARK BRAKE # EPB MOTOR RIGHT LOCK (+) | EU5T-14474-TB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1506
Service Part Number:
AU2Z-14S411-DB
Gauge:
14
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Actuator - Door Lock
- Fuel Injector
- Injector - UREA
- Sensor - Fuel Rail Pressure
- Solenoid - Engine Variable Timing
- Solenoid - Fuel Volume Regulator Control
- Valve - Fuel Metering
- Valve - Heated PCV
- Valve - Vapor Management
