Connector End View C143 - INLINE
WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C143 | INLINE | 14A10714406 | See Below | |||||

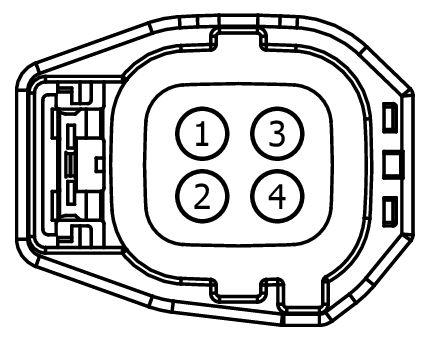

MALE
Harness
14A107

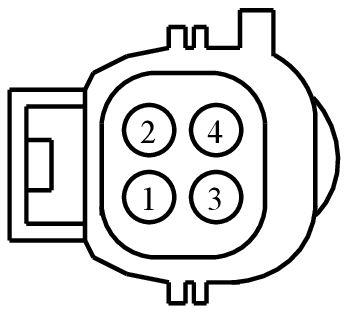

FEMALE
Harness
14406
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-10C930-BFA | Not Available | |
| 97BG-14421-BFA | EU2Z-14421-FA | 2.80 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CCB18 (BU) | 12 | 97BG-14421-BFA | |||
| 2 | CCB19 (BK) | 12 | 97BG-14421-BFA | |||
| 3 | CCB16 (BK) | 12 | 97BG-14421-BFA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CCB18 (YE-GY) | 12 | 97BG-10C930-BFA | |||
| 2 | CCB19 (GN-BN) | 12 | 97BG-10C930-BFA | |||
| 3 | CCB16 (WH-VT) | 12 | 97BG-10C930-BFA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1012
Service Part Number:
9U2Z-14S411-PA
Gauge:
14
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Motor - Windshield Wiper
- Radio - Amplifier
