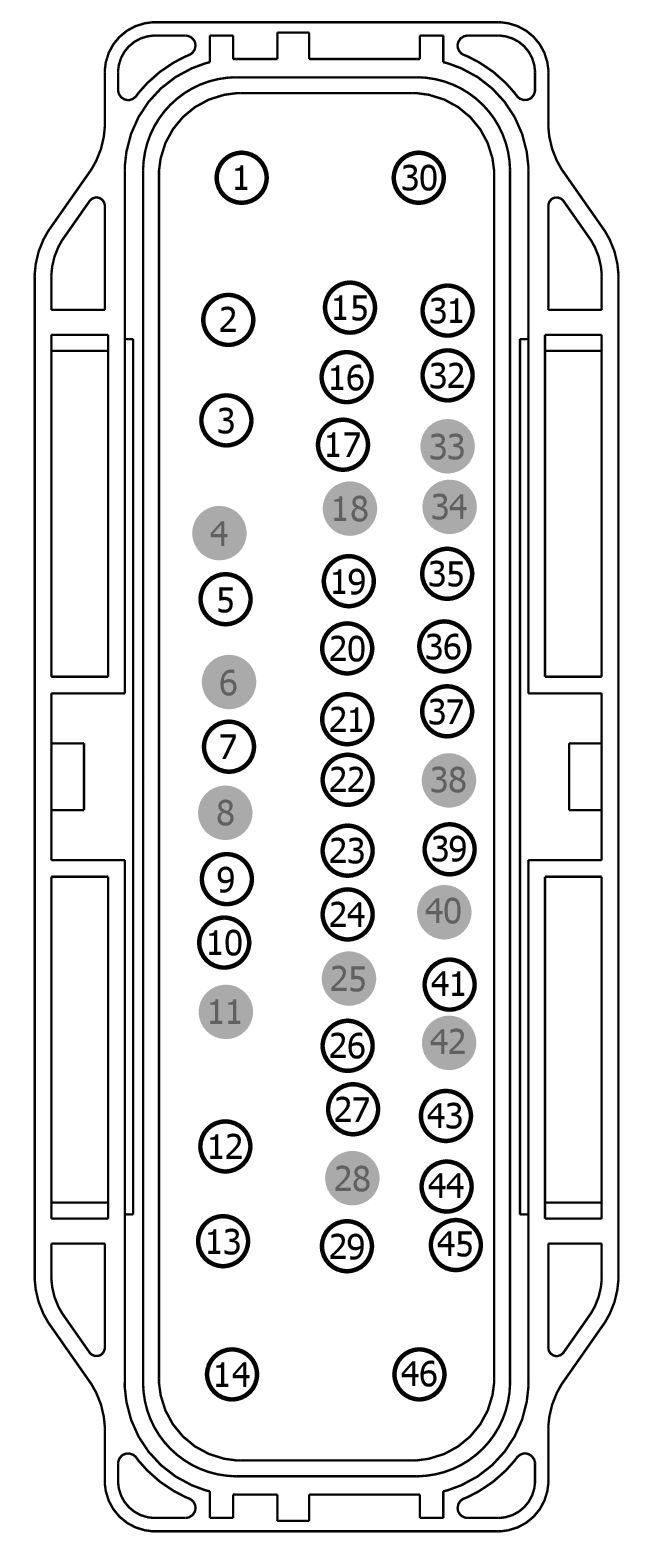

Connector End View C135 - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE
WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C135 | ANTI-LOCK BRAKE SYSTEM (ABS) MODULE | 14290 | part# N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6G9T-14474-HCA | Not Available | |
| GU9T-14474-LA | Not Available | |
| 6W8T-14474-WA | EU2Z-14474-BA | 1.20 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | SBB29 (GY-RD) | 8 | FUSE - 29 OR CIRCUIT BREAKER | GU9T-14474-LA | ||||
| 2 | CCB18 (YE-GY) | 12 | CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT LOCK (+) | 6G9T-14474-HCA | ||||
| 3 | CCB19 (GN-BN) | 12 | CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-) | 6G9T-14474-HCA | ||||
| 4 | * | * | Not Used | 6W8T-14474-WA | ||||
| 5 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | 6W8T-14474-WA | ||||
| 6 | * | * | Not Used | 6W8T-14474-WA | ||||
| 7 | RCA17 (YE) | 20 | CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT | 6W8T-14474-WA | ||||
| 8 | * | * | Not Used | 6W8T-14474-WA | ||||
| 9 | CCB24 (WH-OG) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 5 | 6W8T-14474-WA | ||||
| 10 | CCB21 (GN-VT) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 2 | 6W8T-14474-WA | ||||
| 11 | * | * | Not Used | 6W8T-14474-WA | ||||
| 12 | CCB17 (BU-GN) | 12 | CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT UNLOCK (-) | 6G9T-14474-HCA | ||||
| 13 | CCB16 (WH-VT) | 12 | CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT LOCK (+) | 6G9T-14474-HCA | ||||
| 14 | GD187 (BK-GN) | 8 | GROUND - SHOCK TOWER LEFT BRACKET #1 | GU9T-14474-LA | ||||
| 15 | CCB22 (WH-BN) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 3 | 6W8T-14474-WA | ||||
| 16 | CCB20 (BU-WH) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 1 | 6W8T-14474-WA | ||||
| 17 | LCA37 (YE-OG) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM + | 6W8T-14474-WA | ||||
| 18 | * | * | Not Used | 6W8T-14474-WA | ||||
| 19 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | 6W8T-14474-WA | ||||
| 20 | LCA37 (YE-OG) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM + | 6W8T-14474-WA | ||||
| 21 | VCA05 (GY-VT) | 20 | SENSOR - WHEEL SPEED RIGHT FRONT | 6W8T-14474-WA | ||||
| 22 | VCA06 (WH-OG) | 20 | SENSOR - WHEEL SPEED RIGHT REAR | 6W8T-14474-WA | ||||
| 23 | RCA18 (BN-GN) | 20 | CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR | 6W8T-14474-WA | ||||
| 24 | VCA03 (VT-WH) | 20 | SENSOR - WHEEL SPEED LEFT FRONT | 6W8T-14474-WA | ||||
| 25 | * | * | Not Used | 6W8T-14474-WA | ||||
| 26 | RCA19 (VT) | 20 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT | 6W8T-14474-WA | ||||
| 27 | RCA37 (WH-BU) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM - | 6W8T-14474-WA | ||||
| 28 | * | * | Not Used | N/A | ||||
| 29 | RCA37 (WH-BU) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM - | 6W8T-14474-WA | ||||
| 30 | SBB28 (GN-RD) | 12 | FUSE - 28 OR CIRCUIT BREAKER | GU9T-14474-LA | ||||
| 31 | CCB25 (BN) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 6 | 6W8T-14474-WA | ||||
| 32 | CCB23 (VT-GN) | 22 | CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 4 | 6W8T-14474-WA | ||||
| 33 | * | * | Not Used | N/A | ||||
| 34 | * | * | Not Used | N/A | ||||
| 35 | VMC05 (VT-OG) | 20 | CTRL MOD. - VEHICLE SPEED OUTPUT (VSOUT) | 6W8T-14474-WA | ||||
| 36 | CBB23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | 6W8T-14474-WA | ||||
| 37 | RCA20 (BN) | 20 | CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR | 6W8T-14474-WA | ||||
| 38 | * | * | Not Used | N/A | ||||
| 39 | VCA04 (BU-OG) | 20 | SENSOR - WHEEL SPEED LEFT REAR | 6W8T-14474-WA | ||||
| 40 | * | * | Not Used | N/A | ||||
| 41 | CCA47 (BU-WH) | 20 | SWITCH - ELECTRONIC STABILITY CONTROL DISABLE | 6W8T-14474-WA | ||||
| 42 | * | * | Not Used | N/A | ||||
| 43 | CMC07 (BU-GN) | 20 | SENSOR - BRAKE PAD LEFT REAR | 6W8T-14474-WA | ||||
| 44 | VCA38 (BN) | 20 | SENSOR - BRAKE VACUUM SIGNAL 1 | 6W8T-14474-WA | ||||
| 45 | VCA39 (BU-GN) | 20 | SENSOR - BRAKE VACUUM SIGNAL 2 | 6W8T-14474-WA | ||||
| 46 | GD187 (BK-GN) | 8 | GROUND - SHOCK TOWER LEFT BRACKET #1 | GU9T-14474-LA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1612
Service Part Number:
KU2Z-14S411-AAA
Gauge:
14 18
Pin material:
Tin & Silver
Cavities:
46
Vehicle Uses:
- Module - Anti-Lock Brake System
