Vehicle Dynamic Systems

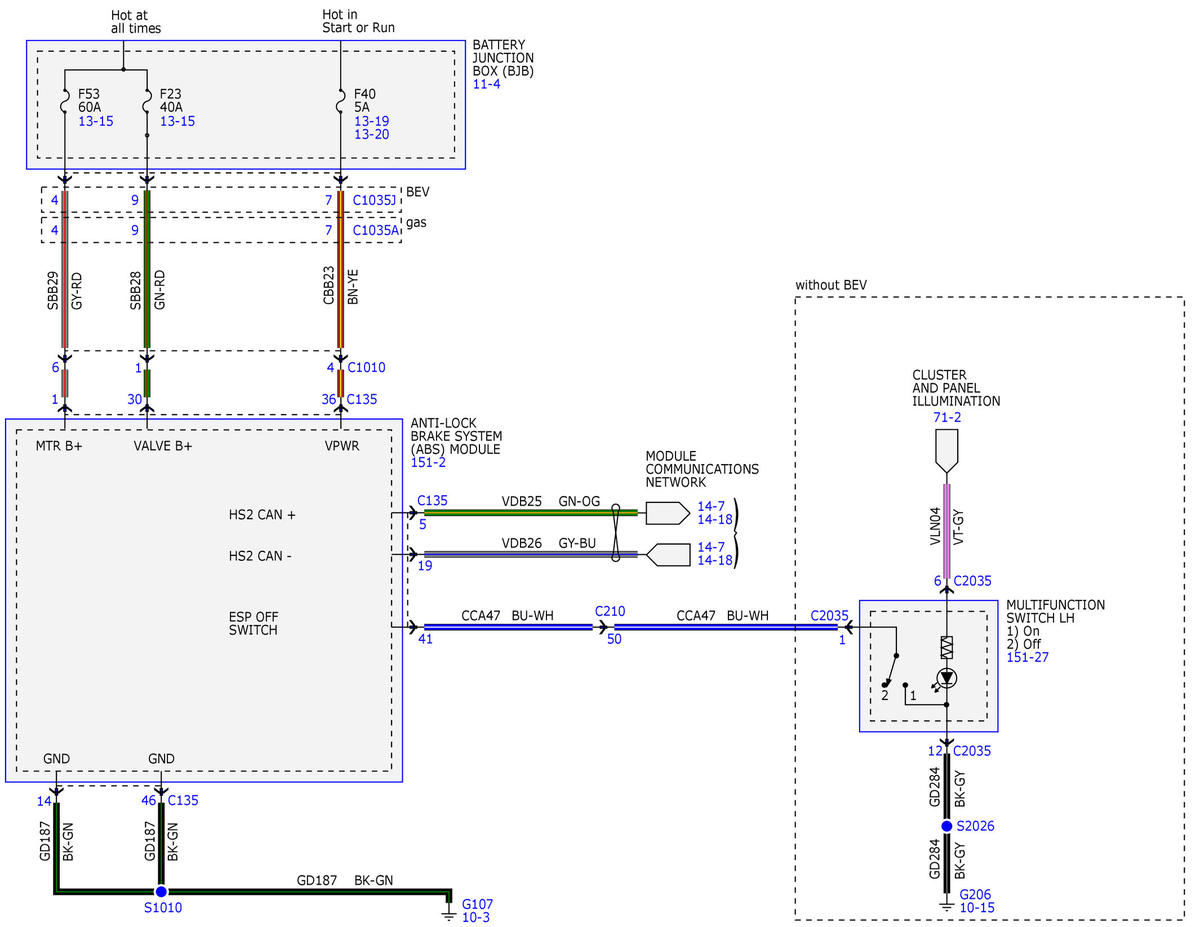

Fig 1: Vehicle Dynamic Systems Wiring Diagram (1 Of 8)
GFDWR213900Courtesy of FORD MOTOR COMPANY

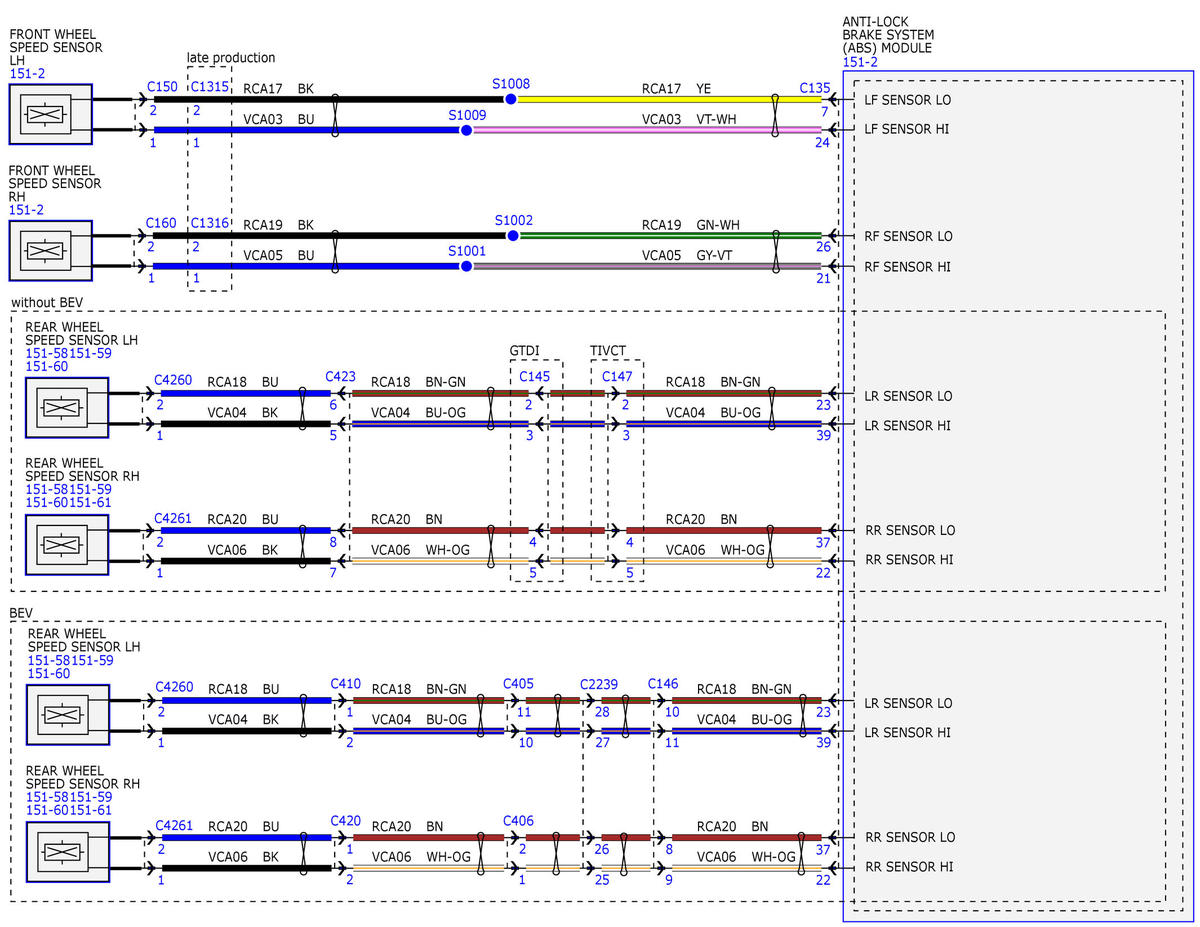

Fig 2: Vehicle Dynamic Systems Wiring Diagram (2 Of 8)
GFDWR213901Courtesy of FORD MOTOR COMPANY

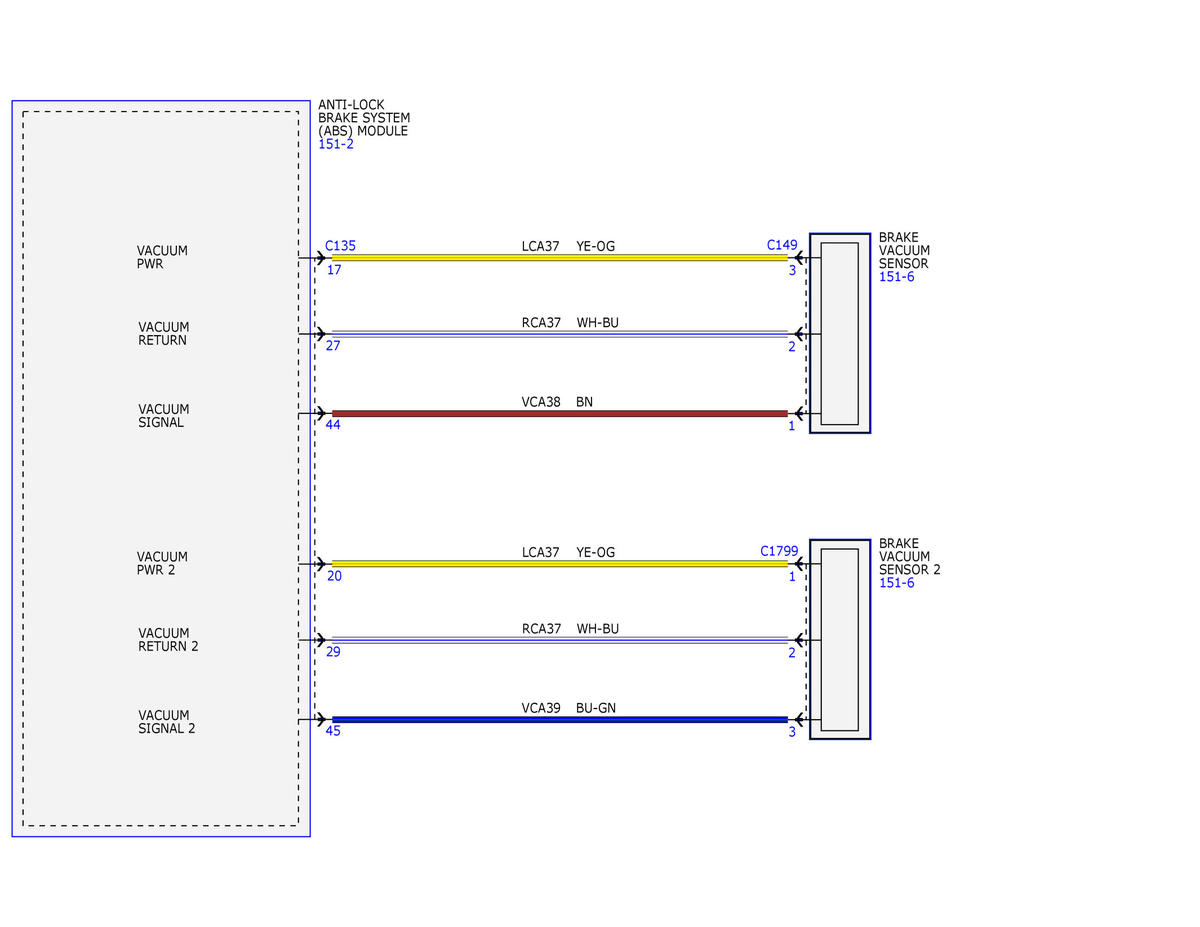

Fig 3: Vehicle Dynamic Systems Wiring Diagram (3 Of 8)
GFDWR213902Courtesy of FORD MOTOR COMPANY

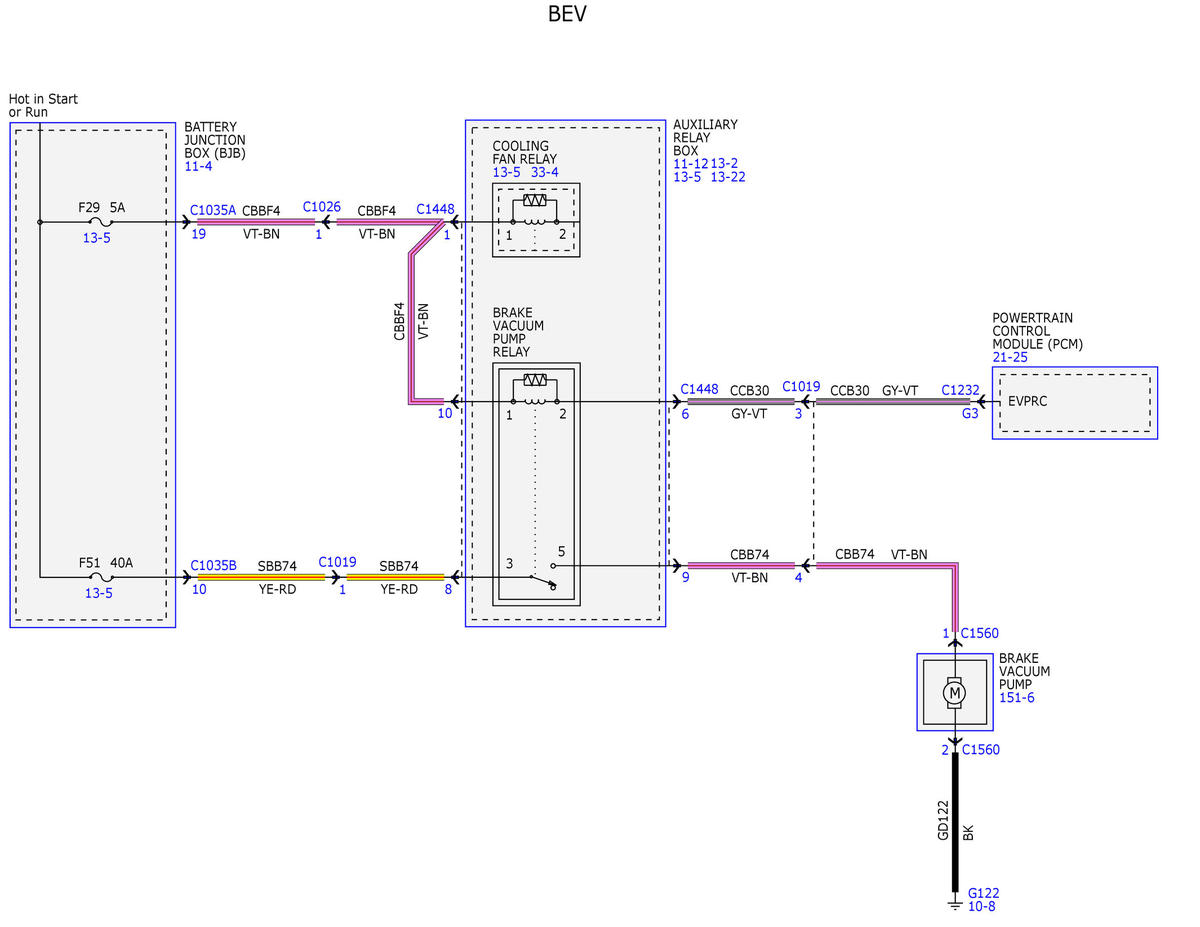

Fig 4: Vehicle Dynamic Systems Wiring Diagram (4 Of 8)
GFDWR213903Courtesy of FORD MOTOR COMPANY

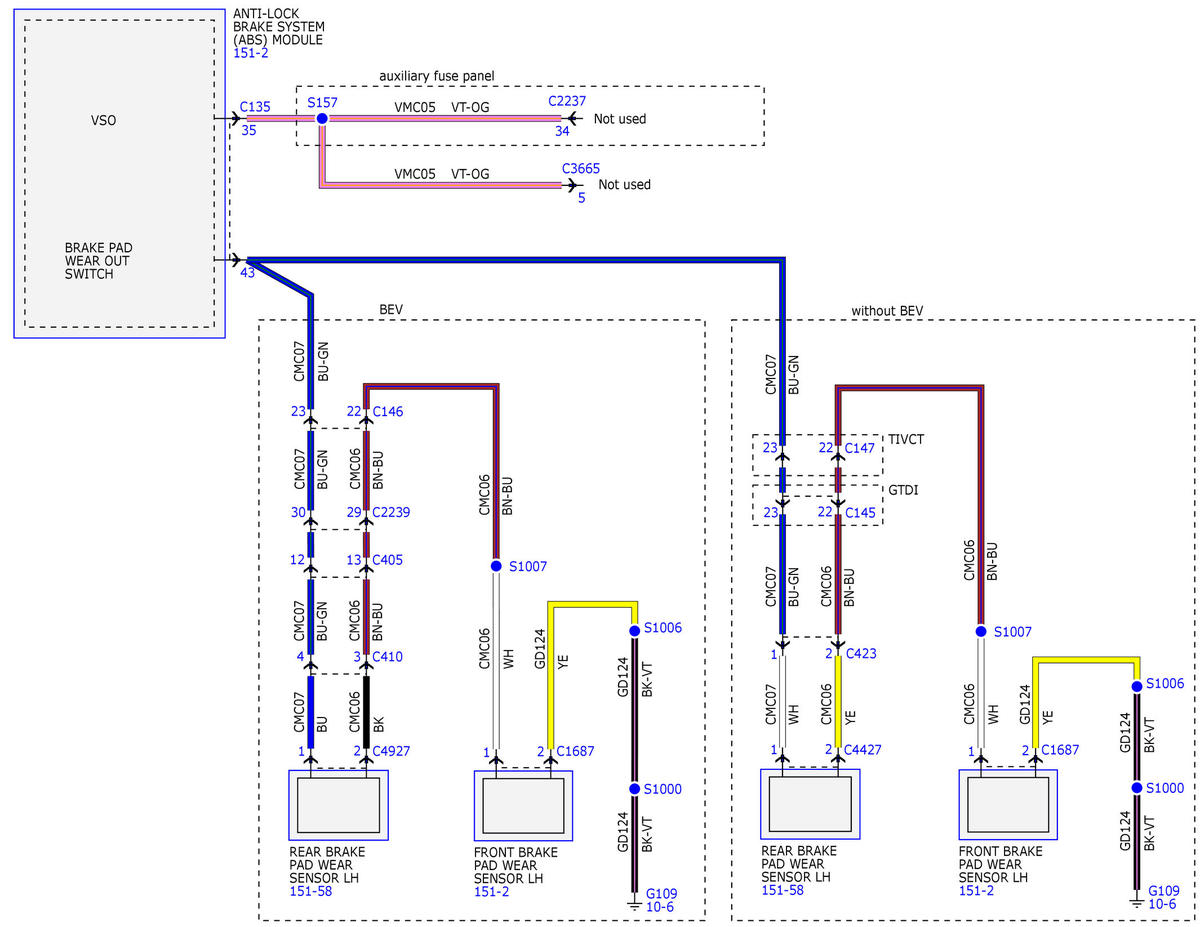

Fig 5: Vehicle Dynamic Systems Wiring Diagram (5 Of 8)
GFDWR213904Courtesy of FORD MOTOR COMPANY

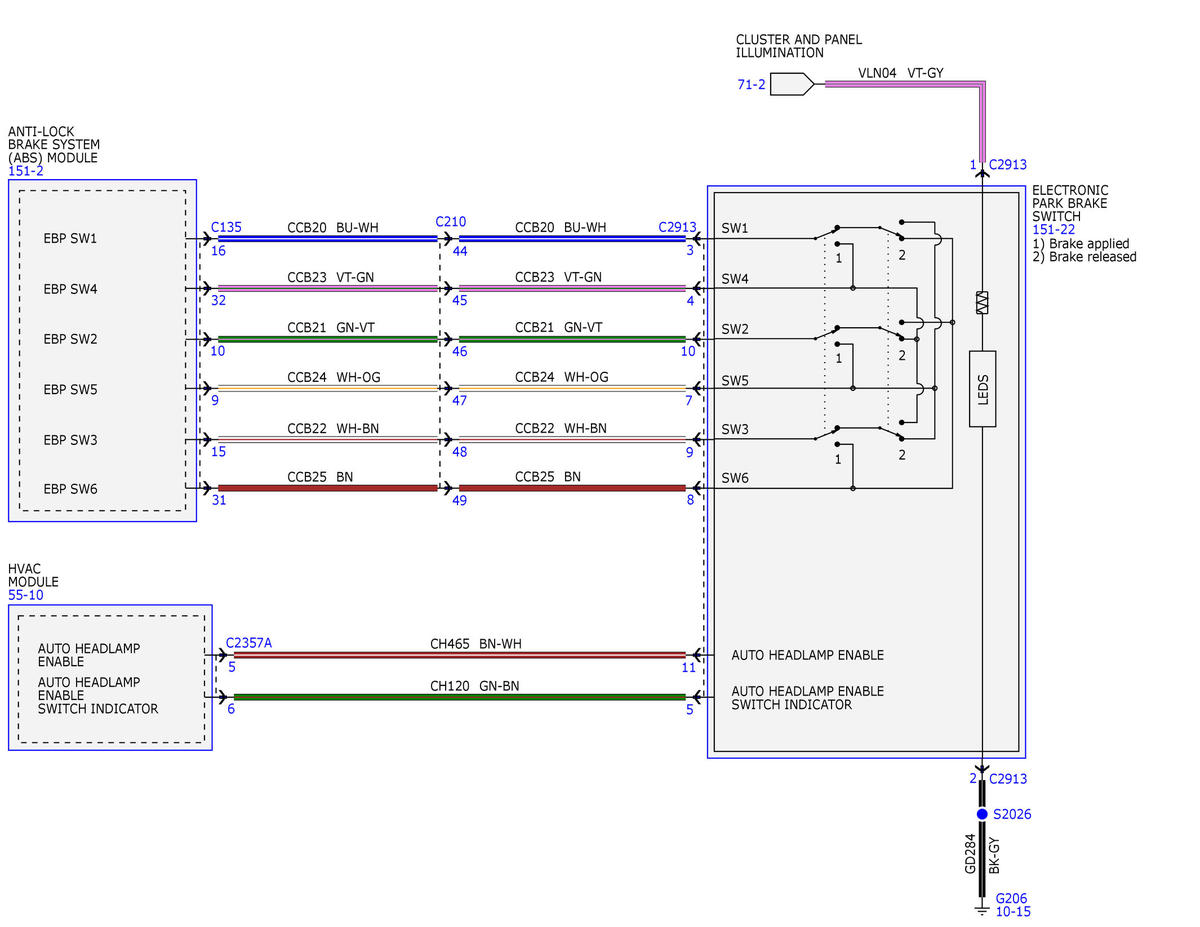

Fig 6: Vehicle Dynamic Systems Wiring Diagram (6 Of 8)
GFDWR213905Courtesy of FORD MOTOR COMPANY
Fig 7: Vehicle Dynamic Systems Wiring Diagram (7 Of 8)
GFDWR213906Courtesy of FORD MOTOR COMPANY

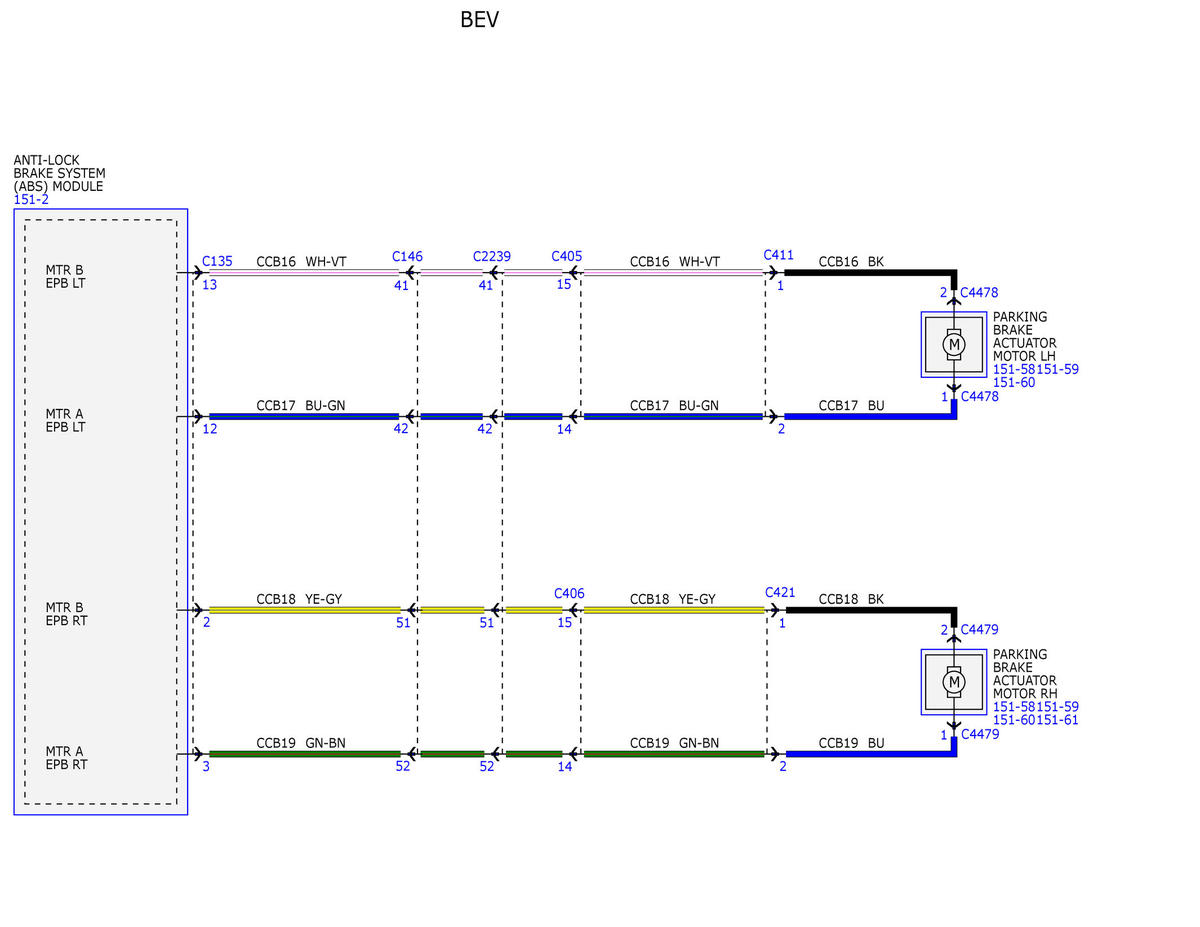

Fig 8: Vehicle Dynamic Systems Wiring Diagram (8 Of 8)
GFDWR213907Courtesy of FORD MOTOR COMPANY
