Instrument Cluster

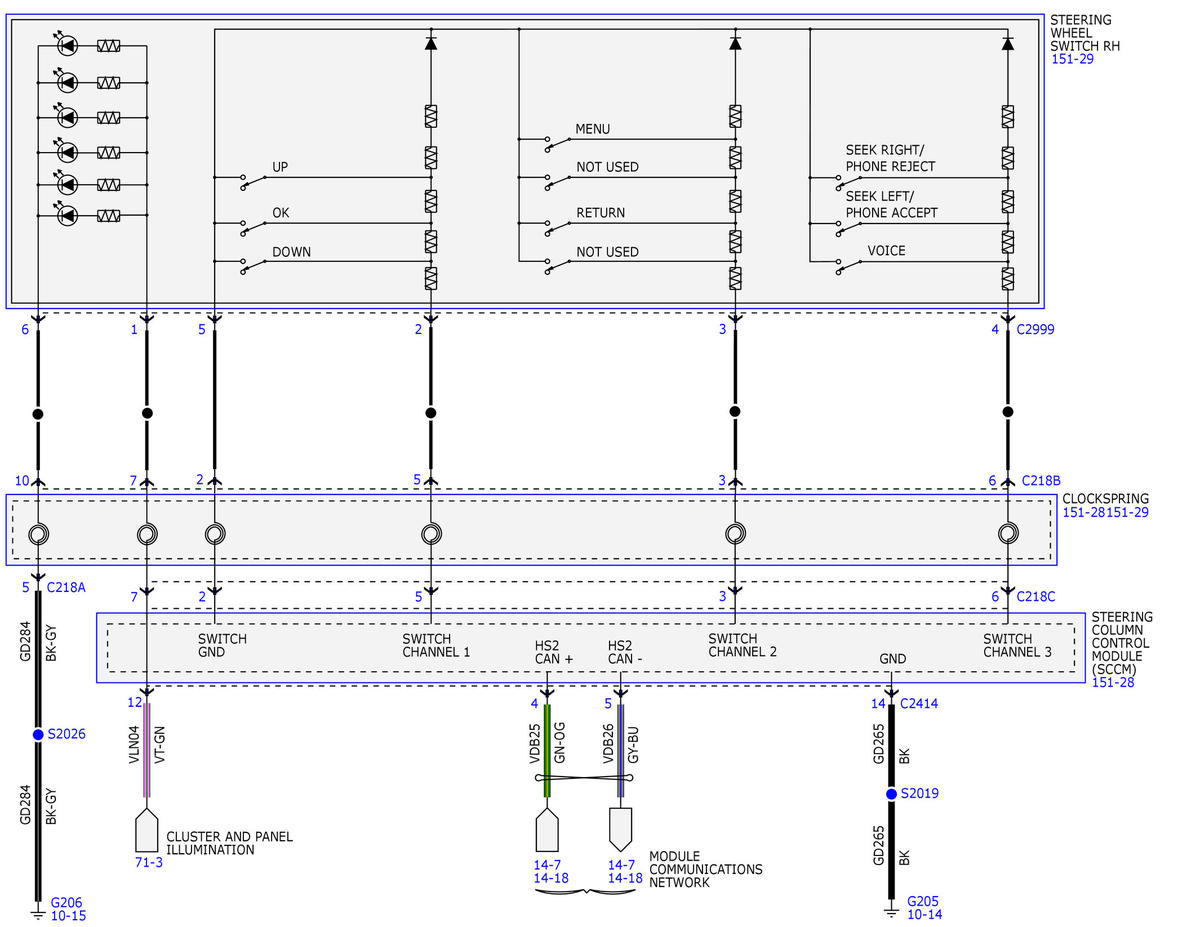

Fig 1: Instrument Cluster Wiring Diagram (1 Of 6)
GFDWR213654Courtesy of FORD MOTOR COMPANY

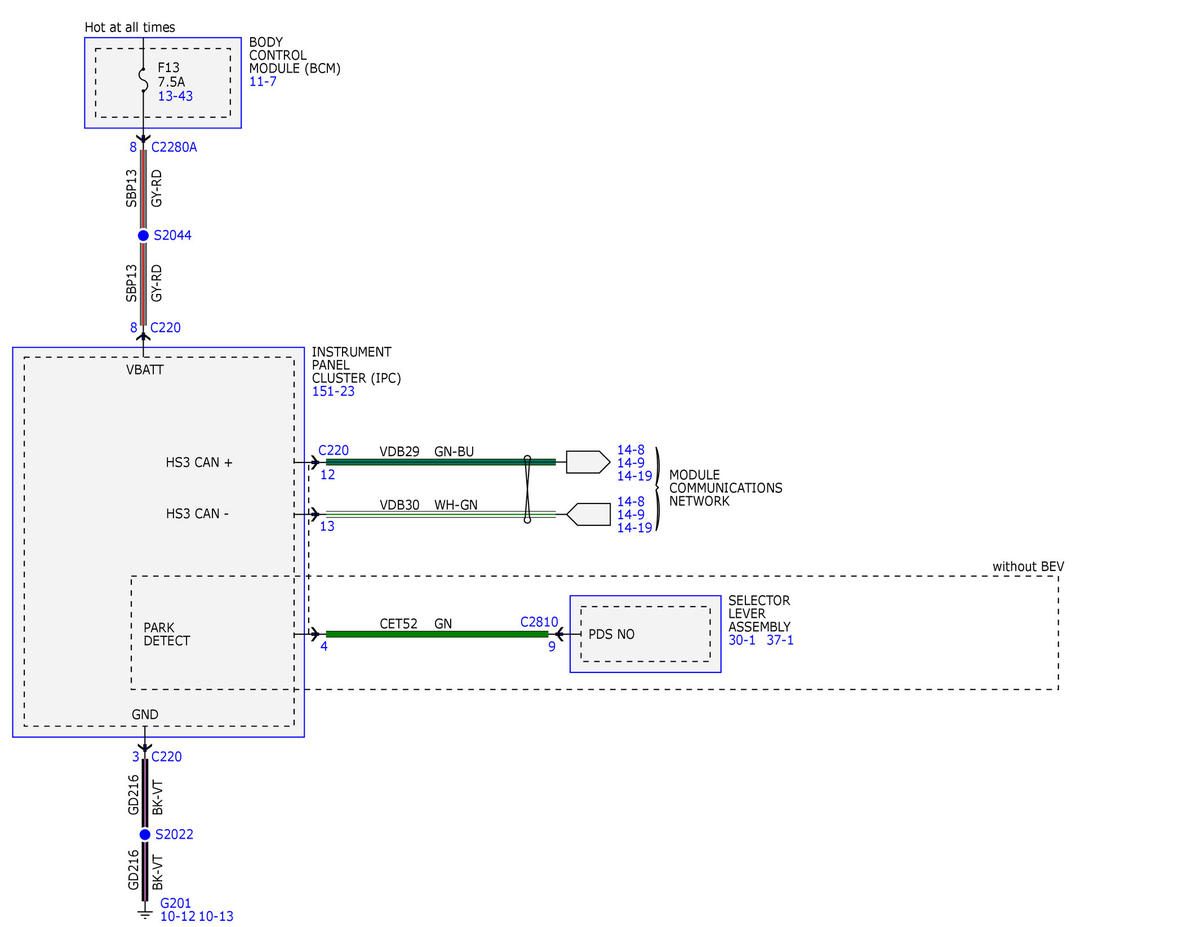

Fig 2: Instrument Cluster Wiring Diagram (2 Of 6)
GFDWR213655Courtesy of FORD MOTOR COMPANY

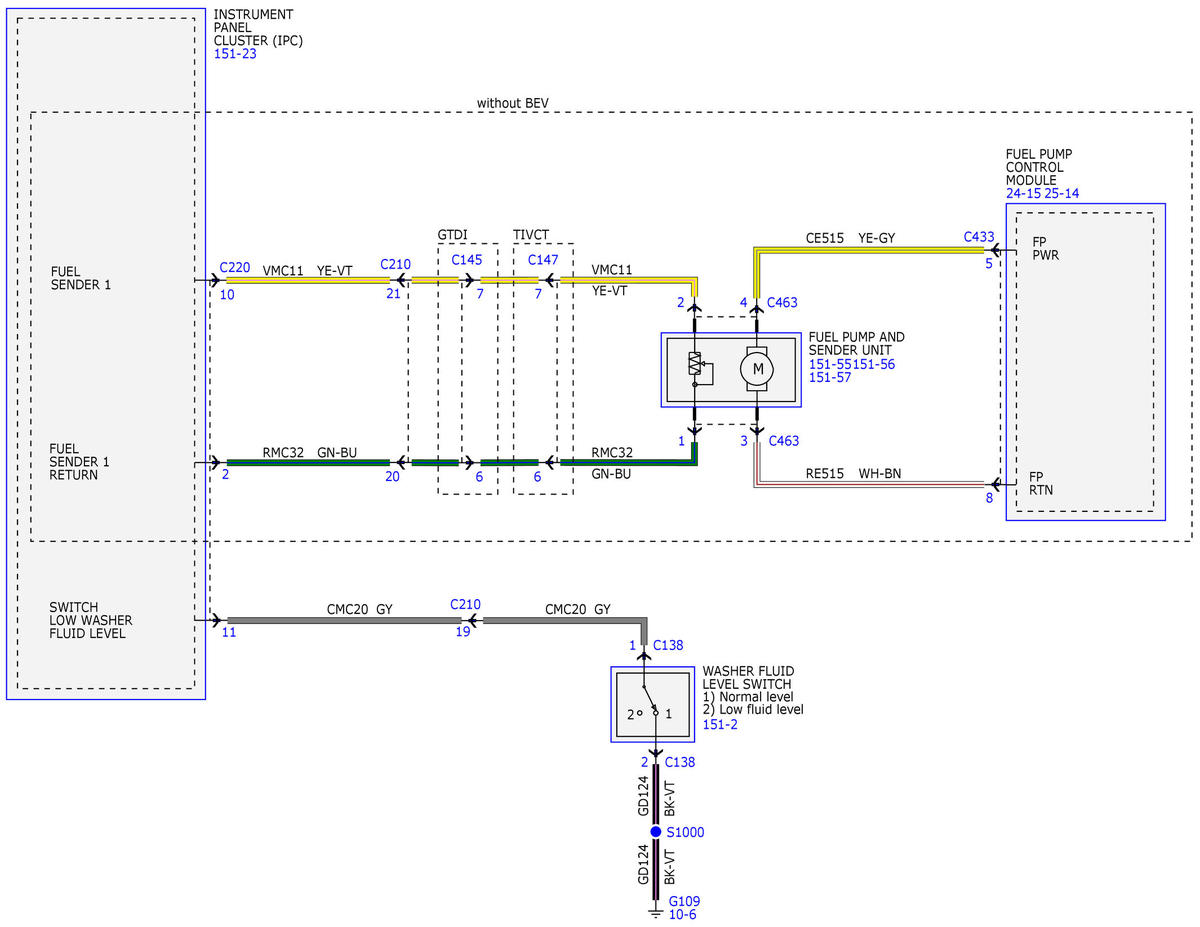

Fig 3: Instrument Cluster Wiring Diagram (3 Of 6)
GFDWR213656Courtesy of FORD MOTOR COMPANY

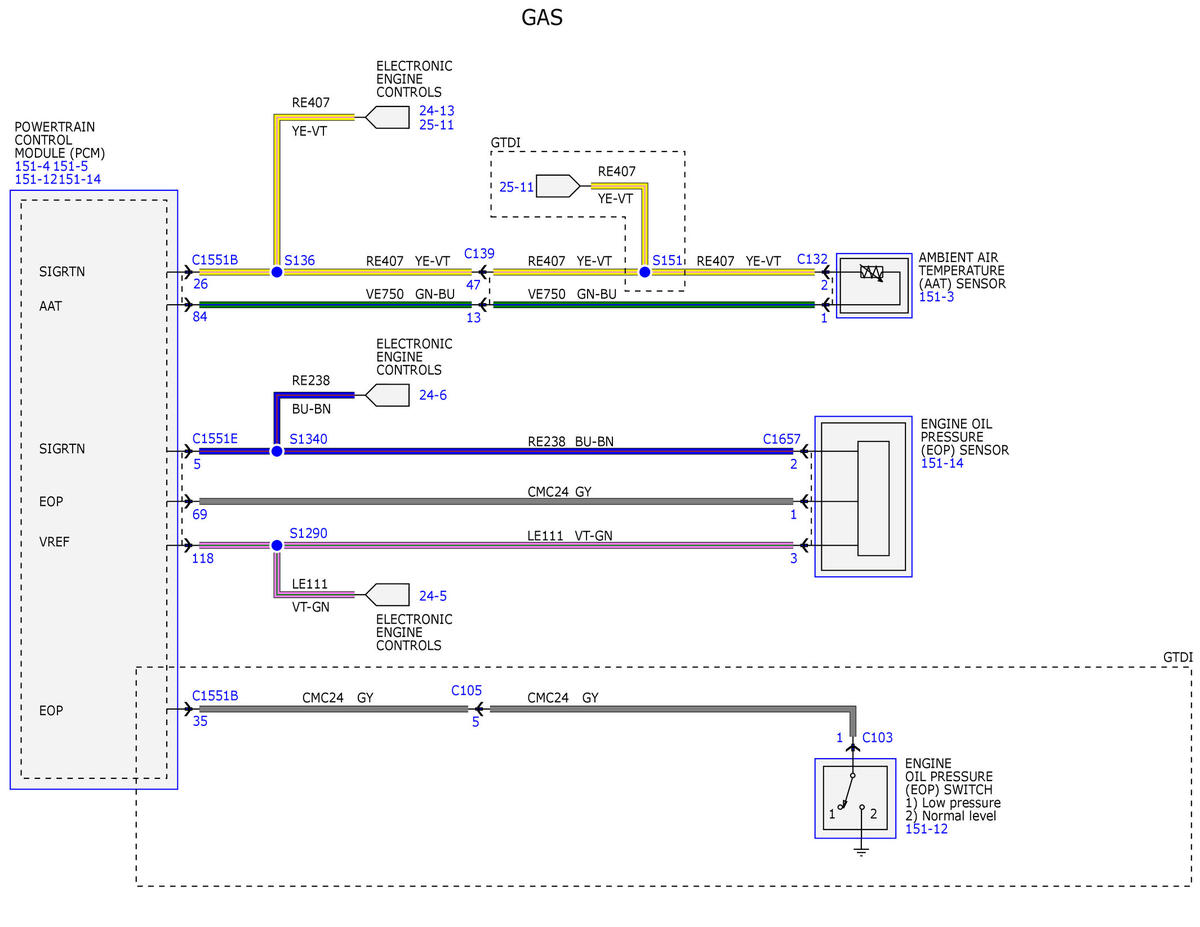

Fig 4: Instrument Cluster Wiring Diagram (4 Of 6)
GFDWR213657Courtesy of FORD MOTOR COMPANY

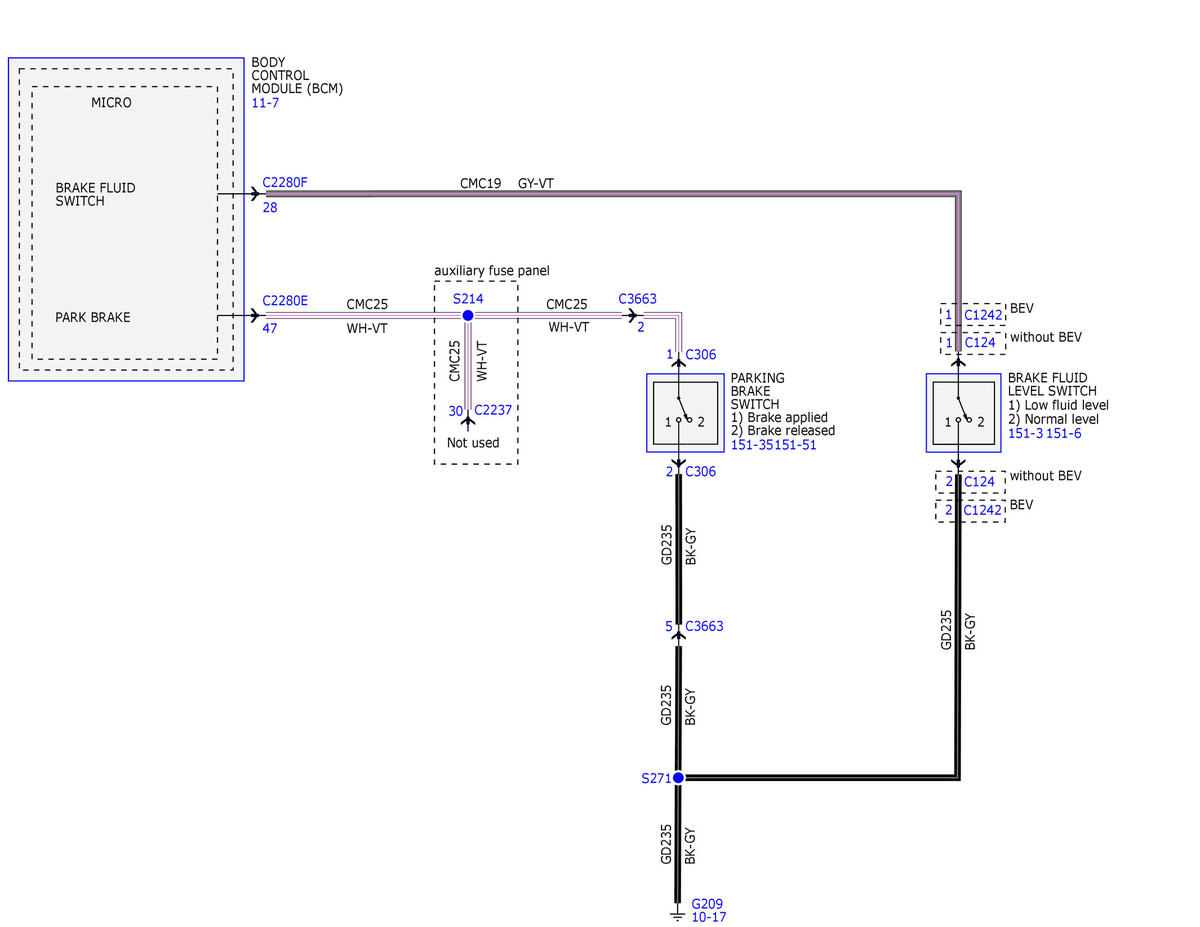

Fig 5: Instrument Cluster Wiring Diagram (5 Of 6)
GFDWR213658Courtesy of FORD MOTOR COMPANY

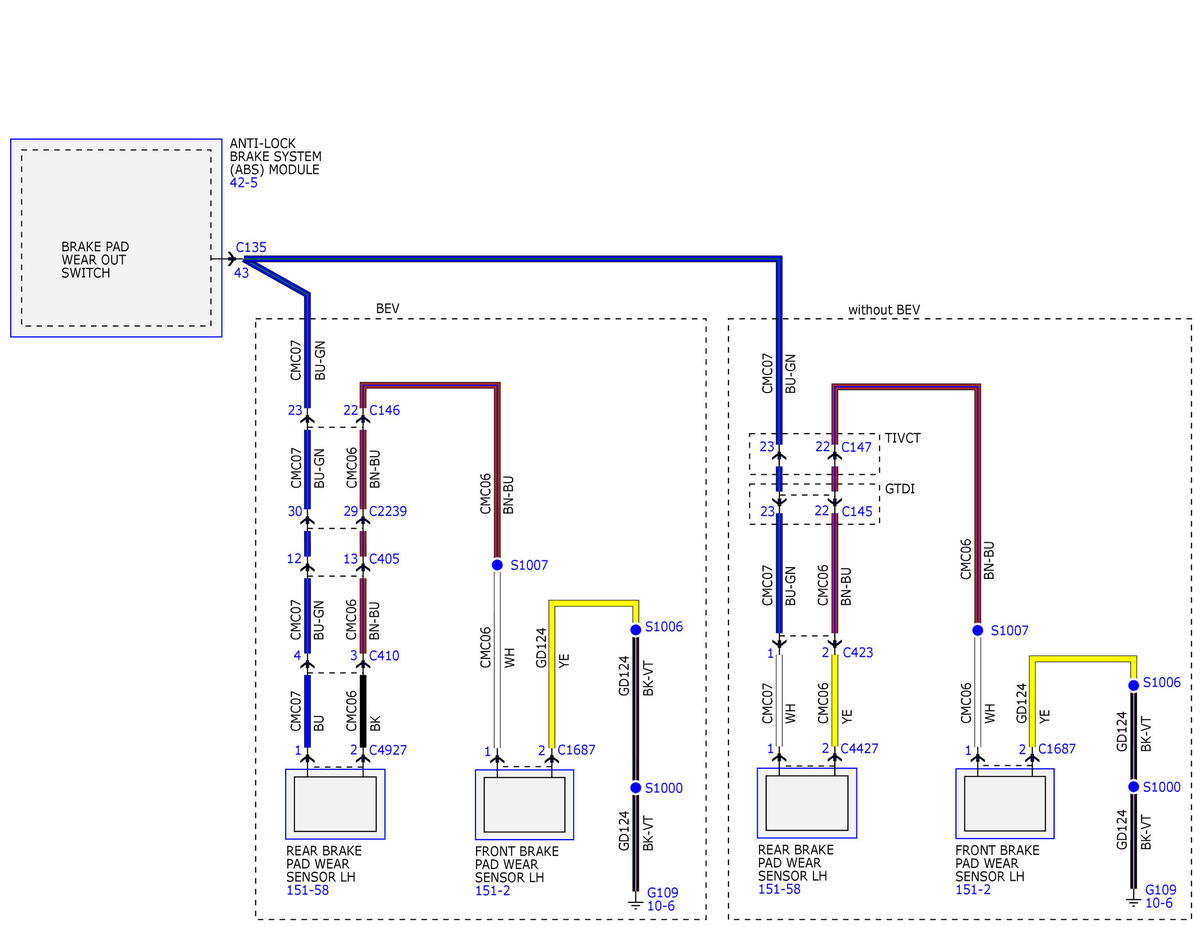

Fig 6: Instrument Cluster Wiring Diagram (6 Of 6)
GFDWR213659Courtesy of FORD MOTOR COMPANY
