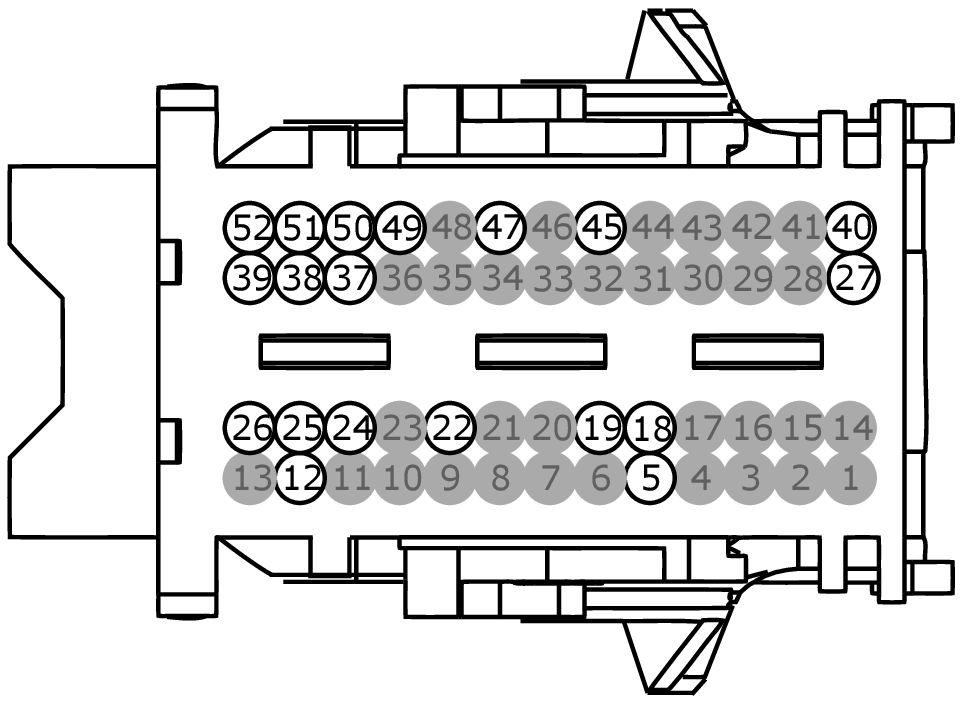

Connector End View C2280B - BODY CONTROL MODULE (BCM)
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280B |
BODY CONTROL MODULE (BCM) |
BK |
14K024 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| 9U5T-14474-EB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
CPK35 (YE-OG) |
20 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
keyless entry |
9U5T-14474-DB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
CDC26 (GY-OG) |
18 |
RELAY - STARTER INHIBIT |
9U5T-14474-EB |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
CRH02 (BU-WH) |
20 |
SWITCH - HORN |
9U5T-14474-DB |
| 19 |
CLS32 (BN-YE) |
22 |
SWITCH - HAZARD |
9U5T-14474-DB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
* |
* |
Not Used |
N/A |
| 22 |
RLF14 (GY-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - |
9U5T-14474-DB |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
VLF14 (BU-BN) |
22 |
SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + |
9U5T-14474-DB |
| 25 |
VDN02 (GN-OG) |
20 |
CTRL MOD. - LIN BUS # SPDJB 2 |
keyless entry |
9U5T-14474-DB |
| 26 |
VPL56 (BU-GY) |
20 |
RECEIVER - REMOTE RF |
9U5T-14474-DB |
| 27 |
RPK05 (YE-OG) |
20 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) - |
keyless entry |
9U5T-14474-DB |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
* |
* |
Not Used |
N/A |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
* |
* |
Not Used |
N/A |
| 37 |
CDC32 (BN-YE) |
18 |
SWITCH - IGNITION # RUN |
9U5T-14474-EB |
| 38 |
CDC30 (BU-GY) |
18 |
SWITCH - IGNITION # KEY IN |
9U5T-14474-EB |
| 39 |
CPK36 (VT-BN) |
20 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED |
keyless entry |
9U5T-14474-DB |
| 40 |
VPK05 (BN-GN) |
20 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) + |
keyless entry |
9U5T-14474-DB |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
* |
* |
Not Used |
N/A |
| 43 |
* |
* |
Not Used |
N/A |
| 44 |
* |
* |
Not Used |
N/A |
| 45 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
9U5T-14474-DB |
| 46 |
* |
* |
Not Used |
N/A |
| 47 |
CPK43 (GY-VT) |
20 |
CTRL MOD. - KEYLESS VEHICLE # PASSIVE ANTITHEFT MODULE POWER (PATS_PWR) |
9U5T-14474-DB |
| 48 |
* |
* |
Not Used |
N/A |
| 49 |
VLF25 (GN-VT) |
20 |
CTRL MOD. - LIGHT SWITCH LIN BUS |
9U5T-14474-DB |
| 50 |
CDC33 (VT-GN) |
18 |
SWITCH - IGNITION # RUN ACCESSORY |
9U5T-14474-EB |
| 51 |
CPK34 (GN-WH) |
20 |
CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + |
keyless entry |
9U5T-14474-DB |
| 52 |
VDN01 (BU-WH) |
20 |
CTRL MOD. - LIN BUS # BCM 1 |
9U5T-14474-DB |
