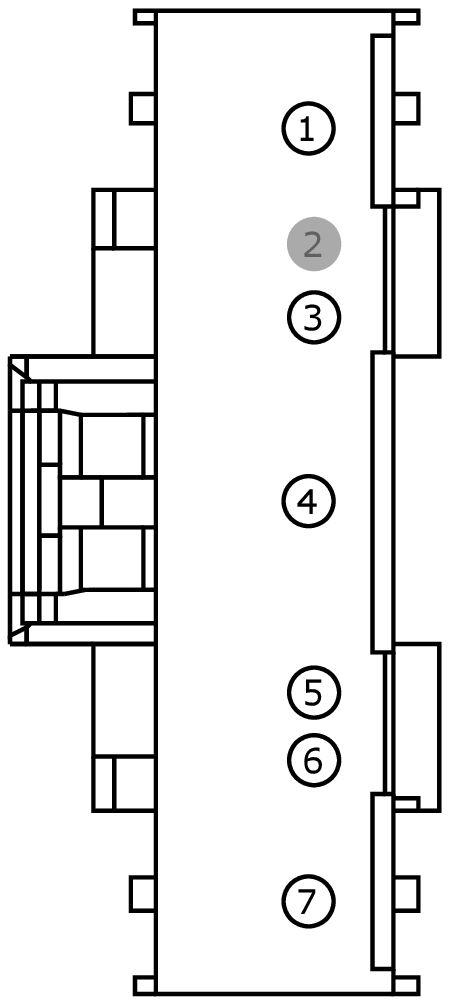

Connector End View C250 - IGNITION SWITCH
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C250 |
IGNITION SWITCH |
BK |
14K024 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Terminal Part Number |
Service Part Number |
Size |
|
| 92GG-14474-KBB |
Not Available |
| AU5T-14474-DA |
DU2Z-14474-DA |
1.50 |
| AU5T-14474-CA |
DU2Z-14474-DA |
1.50 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CDC32 (BN-YE) |
18 |
SWITCH - IGNITION # RUN |
92GG-14474-KBB |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
CDC26 (GY-OG) |
18 |
RELAY - STARTER INHIBIT |
BEV |
N/A |
| 3 |
CDC41 (WH-BN) |
20 |
SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) |
AU5T-14474-DA |
| 4 |
SBP18 (YE-RD) |
18 |
FUSE - 18 OR CIRCUIT BREAKER |
92GG-14474-KBB |
| 5 |
CDC30 (BU-GY) |
18 |
SWITCH - IGNITION # KEY IN |
AU5T-14474-CA |
| 6 |
CDC33 (VT-GN) |
18 |
SWITCH - IGNITION # RUN ACCESSORY |
AU5T-14474-CA |
| 7 |
CDC35 (BU-WH) |
18 |
SWITCH - IGNITION # START |
92GG-14474-KBB |
