Wheel Hub: Removal

WARNING: This page is about a different car, the 2023 Ford Transit-350 HD, 2023 Ford Transit-350, 2023 Ford Transit-250, and 2023 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Remove the brake disc. Refer to: BRAKE DISC
  2. NOTE: SRW shown, others similar.
    NOTE: The wheel hub nuts are RH thread (right hub) and LH thread (left hub).
    NOTE: Always apply inward pressure when tightening or loosening the hub nut.

    Using the special tool, remove the hub nut.Use Special Service Tool: 205-1007 Socket, Axle Nut.

    GFD783365Courtesy of FORD MOTOR COMPANY
  3. Remove the outer wheel hub bearing.
    GFD783366Courtesy of FORD MOTOR COMPANY

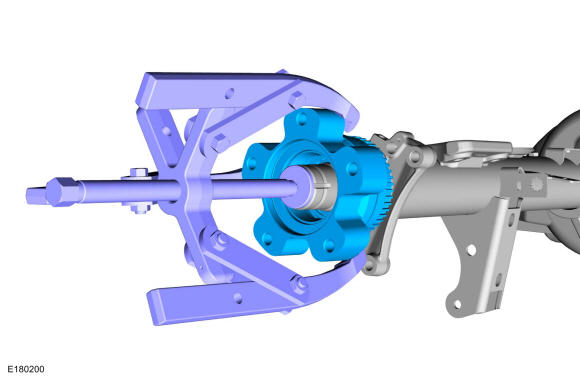

  4. Using the special tool and the puller, remove the wheel hub.Use Special Service Tool: 205-D017 (D80L-630-6) Step Plate.Use the General Equipment: Puller
    GFD783367Courtesy of FORD MOTOR COMPANY

    Vehicles with Drum In Hat Parking Brake

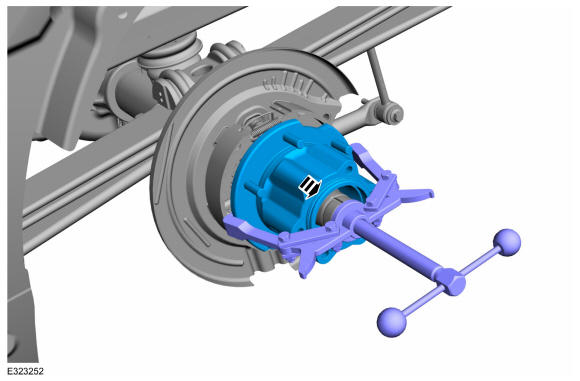

  5. Using the special tool and the puller, remove the wheel hub.Use Special Service Tool: 205-D017 (D80L-630-6) Step Plate.Use the General Equipment: Two Leg Puller
    GFD783368Courtesy of FORD MOTOR COMPANY

    All vehicles

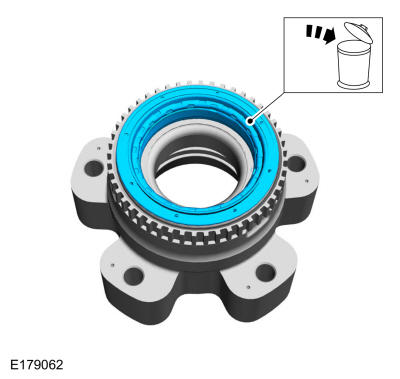

  6. Remove and discard the wheel hub inner seal.
GFD783354Courtesy of FORD MOTOR COMPANY
