Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Removal

WARNING: This page is about a different car, the 2023 Ford Transit-350 HD, 2023 Ford Transit-350, 2023 Ford Transit-250, and 2023 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel hub. Discard the outer wheel hub bearing. Refer to: Wheel Hub
  2. Remove and discard the wheel hub inner seal.
    GFD783354Courtesy of FORD MOTOR COMPANY

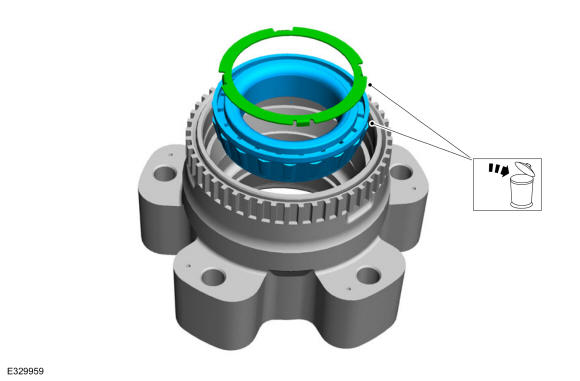

  3. Remove and discard the slinger and the inner wheel hub bearing.
    GFD783355Courtesy of FORD MOTOR COMPANY

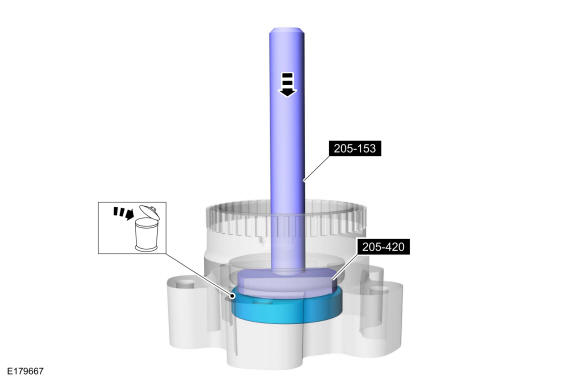

  4. Using the specials tools, remove and discard the outer wheel bearing cup.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-420 Remover, Wheel Hub Outer Bearing Cup (10 1/2).
    GFD783356Courtesy of FORD MOTOR COMPANY

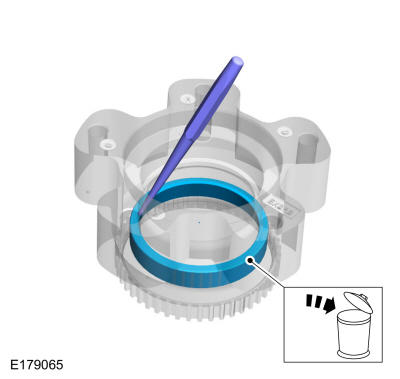

  5. Using the general equipments, remove and discard the inner wheel bearing cup.Use the General Equipment: PunchUse the General Equipment: Rubber Mallet
GFD783357Courtesy of FORD MOTOR COMPANY
